Открытый узел

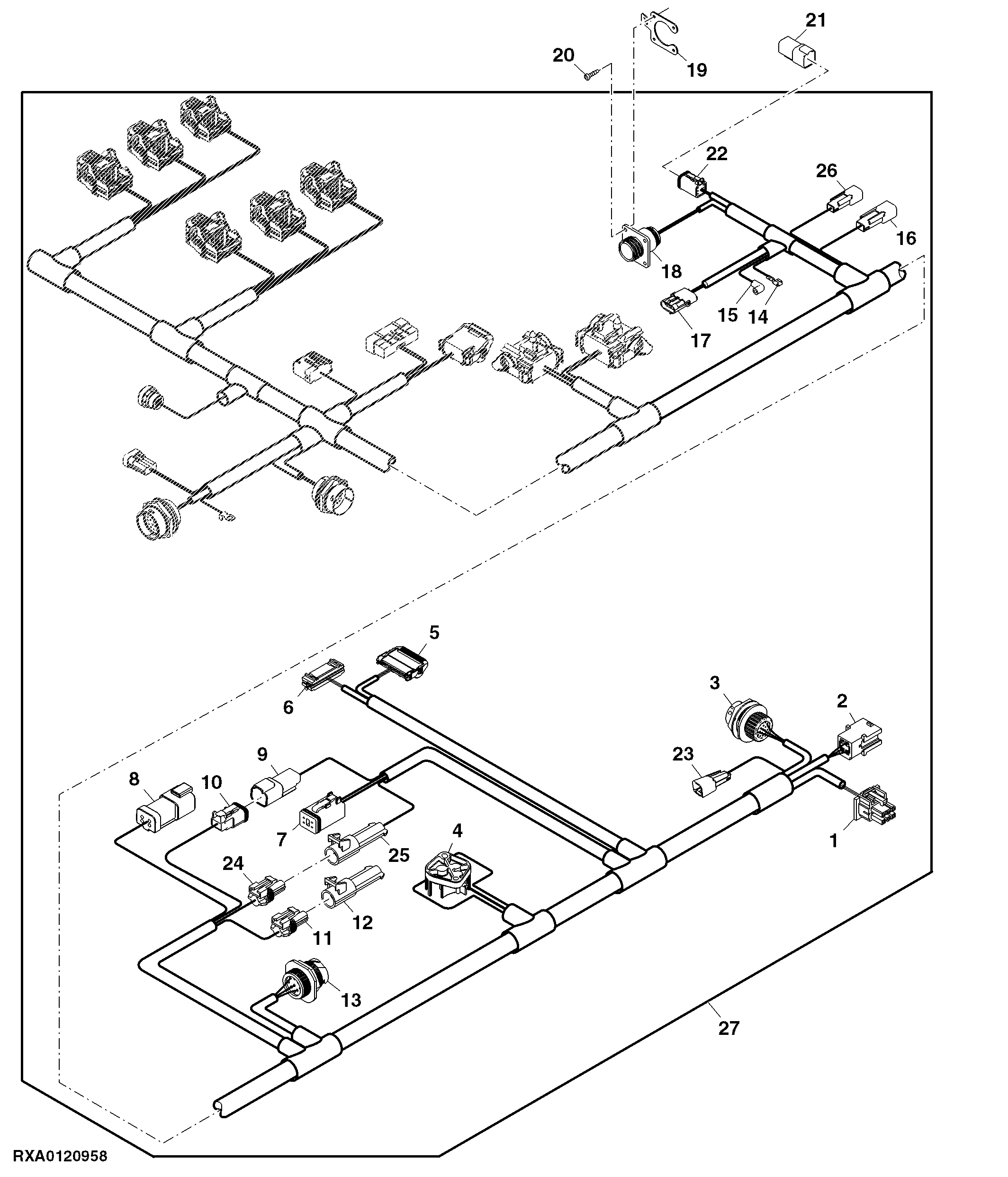

Cab Wiring Harness Connectors, IVT™ (For Europe)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7719	1	Electrical Connector Assy	-
1	57M7714	1	Electrical Connector Assy	Primary Display Unit USE WITH (6) 57M8808_Pins
2	57M7718	1	Electrical Connector Assy	-
2	57M7713	1	Electrical Connector Assy	ISO Connector USE WITH (4) 57M7548_Pins
3	57M9231	1	Elec. Connector Housing	Reconfigurable Display USE WITH (7) 57M9388_Pins, (7) Z56915_Seals
4	RE186986	1	Junction Block	Right Junction Block USE WITH R65599_Pins, 57M7559_Pins
5	-	1	Part 7	Front Control Support Harness Connector 2 USE WITH (3) 57M10113_Pins, 57M10110_Pins
6	-	1	Part 8	Front Control Support Harness Connector 1 USE WITH 57M10108_Pins, 57M10107_Pins, (5) 57M10106_Pins
7	57M8015	1	Electrical Connector Assy	Cab Implement Can Connector 1 USE WITH (4) 57M8165_Pins
8	57M8017	1	Elec. Connector Housing	Cab Implement Can Connector 2 USE WITH (4) 57M8164_Pins
9	57M8021	1	Electrical Connector Assy	Cab Implement Can Power Connector 1 USE WITH 57M8165_Pins, 57M7546_Pins
9	57M8022	1	Elec.Connect Locking Device	-
10	57M8023	1	Elec. Connector Housing	Cab Implement Can Power Connector 2 USE WITH (2) N282069_Pins
10	57M7621	1	Elec.Connect Locking Device	-
11	57M7294	1	Elec. Connector Housing	GPS Receiver USE WITH 57M7297_Pins, 57M9219_Seals
12	57M7293	1	Elec. Connector Housing	Dust Cap
13	57M9183	1	Elec. Connector Housing	Service Advisor Connector USE WITH (2) N282069_Pins, (4) 57M8164_Ppins
13	57M9182	1	Nut	-
14	U46662	1	Elec. Connector Terminal	Right Side Lighter Ground
15	-	1	Part 20	Right Side Lighter Power
16	57M7784	1	Electrical Connector Assy	Right Extremity Light USE WITH (2) 57M7500_Pins
17	R78054	1	Electrical Connector Assy	Convenience Outlet USE WITH (6) 57M8808_Pins
18	57M9354	1	Elec. Connector Housing	ISO In Cab Connector ORDER R76873
18	R76873	1	Elec. Connector Terminal	-
19	L171800	1	Strap	-
20	37M7352	4	Screw	-
21	RE339329	1	Relay	SUB FOR AL174926
22	57M8013	1	Elec.Connect Locking Device	-
22	57M7630	1	Electrical Connector Assy	ISO Relay Box Connector USE WITH (6) 57M8165_Pins
23	57M7784	1	Electrical Connector Assy	Tractor Can USE WITH 57M9189_Pin
24	57M7294	1	Elec. Connector Housing	Radar Sensor USE WITH 57M7297_Pins, 57M9219_Seals
24	57M7295	1	Elec.Connect Locking Device	-
25	57M7293	1	Elec. Connector Housing	Radar Connector USE WITH 57M7285_Pins, 57M9219_Seals
25	57M7295	1	Elec.Connect Locking Device	-
26	57M7782	1	Electrical Connector Assy	Right Extremity Light
27	RE307732	1	Cab Wiring Harness	-
..	-	1	Part 37	-

Cab Wiring Harness Connectors, IVT™ (For Europe)

Нет текстового описания
