Открытый узел

Attachment, Selective Control Valve, Remote Control 4th / 5th SCV

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE343866	1	Selective Control Valve	5th SCV
1	RE343865	1	Selective Control Valve	4th SCV
2	RE582808	1	Seal Kit	SUB FOR RE279692
3	RE260572	1	Selective Control Valve	ORDER RE588375
3	RE588375	1	Selective Control Valve	SUB FOR RE580227
4	R250192	2	Screw	-
5	R267667	2	Cap	-
6	RE574943	1	Cover	Number IV, Black, SCV Coupler SUB FOR RE289058
6	RE574944	1	Cover	Number V, Violet, SCV Coupler SUB FOR RE289059
7	RE281895	1	Seal Kit	-
8	L102157	1	Plug	4th SCV
8	L200312	1	Plug	5th SCV
9	24M7095	5	Washer	8.400 X 15 X 1.600 mm
10	R266977	5	Socket Head Screw	-
11	RE283442	1	Stud Kit	4th SCV
11	RE283443	1	Stud Kit	5th SCV
12	RE272882	4	Tube	-
13	RE559660	1	Breakaway Coupler	4th SCV Horizontal INCLUDES RE256693 AND RE271733, R186598; SUB FOR RE262016
13	RE559661	1	Breakaway Coupler	5th SCV Offset INCLUDES RE256693 AND RE271733, R186598; SUB FOR RE262017
14	RE279694	1	Cap Kit	-
15	RE279695	1	Spring Kit	USE WITH RE260572
15	RE568184	1	Spring Kit	USE WITH RE588375 OR RE580227
16	RE279696	3	Plug Kit	-
18	RE279699	1	Spring Kit	USE WITH RE260572
18	RE568186	1	Spring Kit	USE WITH RE588375 OR RE580227
19	RE577560	2	Breakaway Coupler	SUB FOR RE256693
20	R107859	20	Ball	-
21	R222761	2	O-Ring	-
22	R257100	2	Snap Ring	-
23	RE186599	2	Seal	-
24	R186598	2	Snap Ring	-
25	RE271733	1	Lever	INCLUDES R27564
26	R10093	2	O-Ring	-
27	R207188	1	Ring	-
28	RE273297	1	Control Lever	4th SCV
28	RE273298	1	Control Lever	5th SCV
29	RE267676	1	Potentiometer	-
30	R125878	1	Arm	-
31	R125879	1	Torsion Spring	-
32	R171535	1	Bracket	-
33	R217571	2	Torsion Spring	-
34	RE223879	1	Cab Wiring Harness	5th SCV
35	RE279693	1	Valve Kit	-
36	RE288661	1	Label	5th SCV
36	RE288663	1	Label	4th SCV
37	RE580941	1	Valve Kit	SUB FOR RE341710; USE WITH RE580227
38	L214847	2	Grommet	-
39	-	2	Part 51	4th SCV
39	-	2	Part 52	5th SCV
40	-	2	Part 53	-
41	-	2	Part 54	-
42	19M8648	2	Screw	M6 X 16
43	R27564	1	O-Ring	-
44	19M9178	2	Screw	M6 X 30
45	R552383	1	Retainer	-
46	-	1	Part 59	USE WITH (6) 57M7427_Pins; PCB Connector
47	57M7708	1	Electrical Connector Assy	USE WITH (4) 57M7427_Pins; SCV 6 Paddle POT
48	57M7708	1	Electrical Connector Assy	USE WITH (4) 57M7427_Pins; SCV 5 Paddle POT
49	R290068	1	Cover	-
50	RE186600	2	Seal	-
51	RE343006	1	Wiring Harness	-
52	R540643	1	Valve	-
53	RE567604	1	Electronic Control Unit	USE WITH RE580227
53	RE588373	1	Electronic Control Unit	USE WITH RE588375
54	57M9498	1	Elec. Connector Housing	-
55	57M9500	1	Elec. Connector Accessory	-
56	RE567655	1	Electronic Control Unit	Not Illustrated USE WITH RE260572
57	RE341709	1	Valve Kit	Not Illustrated USE WITH RE260572
17A	RE279697	2	Valve Kit	USE WITH RE260572
17A	RE568185	2	Check Valve	Load Check Valve ORDER RE591268
17B	RE591268	1	Check Valve	Load Check Valve USE WITH RE588375 OR RE580227

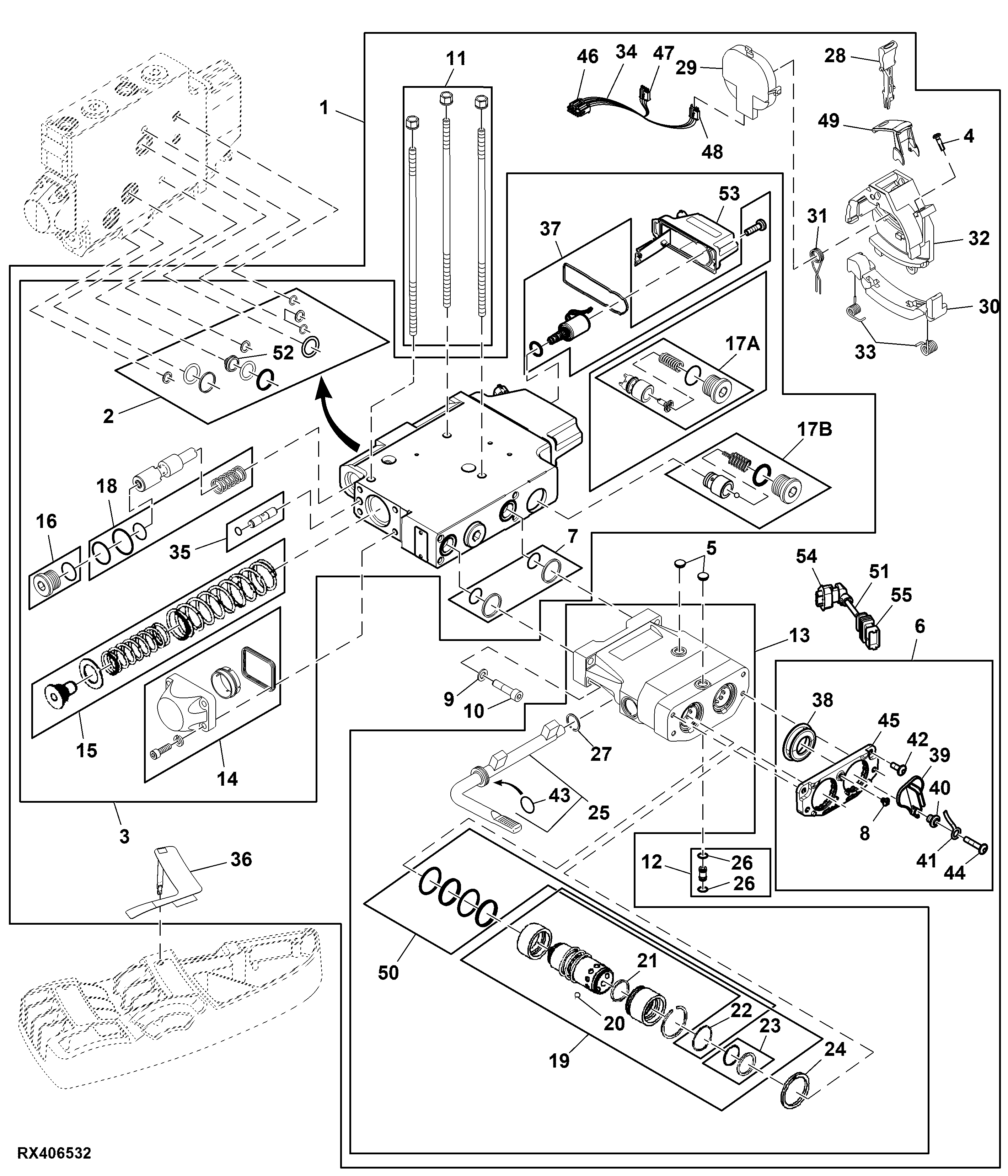

Attachment, Selective Control Valve, Remote Control 4th / 5th SCV
