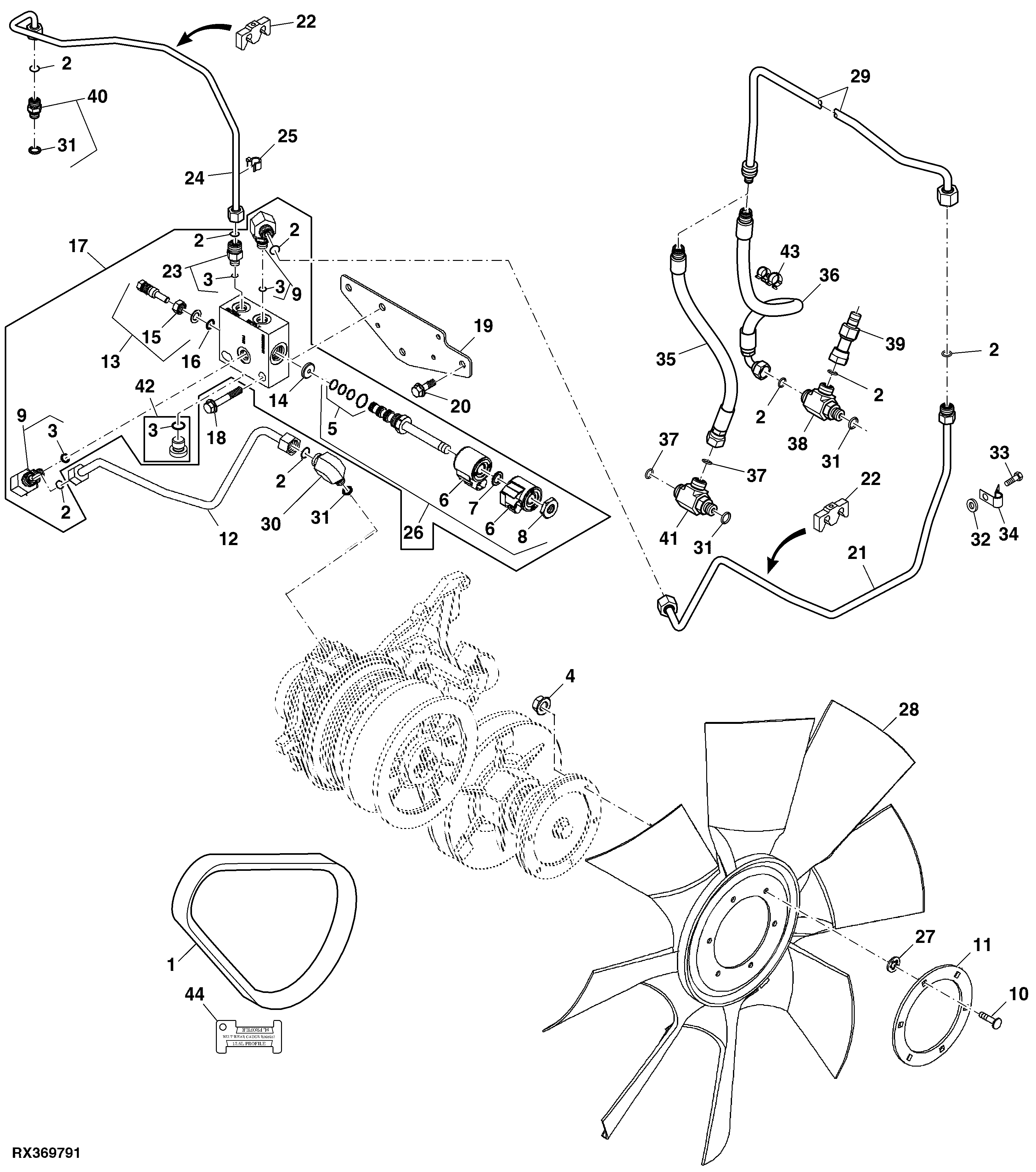

Control Valve and Lines, Variable Speed, 9.0 L Engine (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R222393	1	V-Belt	-
2	T77613	8	O-Ring	-
3	51M7040	4	O-Ring	9.300 X 2.200 mm
4	14M7298	6	Flange Nut	M8
5	F433465	1	Seal Kit	-
6	AT333807	2	Solenoid Valve Coil	-
7	R262336	1	Washer	-
8	T225293	1	Nut	-
9	38H5022	2	Elbow Fitting	-
10	03M7187	6	Bolt	M8 X 35
11	R222639	1	Ring	-
12	RE284468	1	Oil Tube	Fan Drive
13	RE42567	1	Fitting Plug	-
14	R292405	1	Orifice	-
15	R27296	1	Nut	-
16	R26286	1	O-Ring	-
17	RE268241	1	Flow Control Hyd. Valve	Variable Speed
18	19M7800	2	Screw	M8 X 50
19	RE284942	1	Bracket	Fan Drive Valve Mounting Bracket
20	19M7865	2	Screw	M8 X 16
21	RE311225	1	Oil Tube	Fan Drive Supply INCLUDES T77613
22	L100851	2	Clamp	-
23	38H5008	1	Adapter Fitting	-
24	RE280393	1	Oil Tube	Valve to Sump
25	L156556	1	Clamp	-
26	RE242062	1	Solenoid Valve	SUB FOR RE262335 APPL
27	M84309	6	Nut	-
28	RE210585	1	Suction Fan	-
29	RE323678	1	Oil Tube	SUB FOR RE268099
30	38H5016	1	Elbow Fitting	-
31	51M7041	4	O-Ring	11.300 X 2.200 mm
32	R125888	1	Spacer	-
33	19M7799	1	Screw	M8 X 45
34	T13814	1	Clamp	-
35	RE290770	1	Hydraulic Hose	PST
36	RE290769	1	Hydraulic Hose	IVT™
37	T77857	1	O-Ring	-
38	38H5067	1	Tee Fitting	IVT™
39	RE60701	1	Diagnostic Coupling	-
40	38H5002	1	Adapter Fitting	-
41	38H5065	1	Tee Fitting	PST
42	RE46686	1	Fitting Plug	-
43	R215302	1	Clip	-
44	R569237	1	Checking Gage	Available for order in quantities of 100 per package.

Control Valve and Lines, Variable Speed, 9.0 L Engine (2/2)

Нет текстового описания
