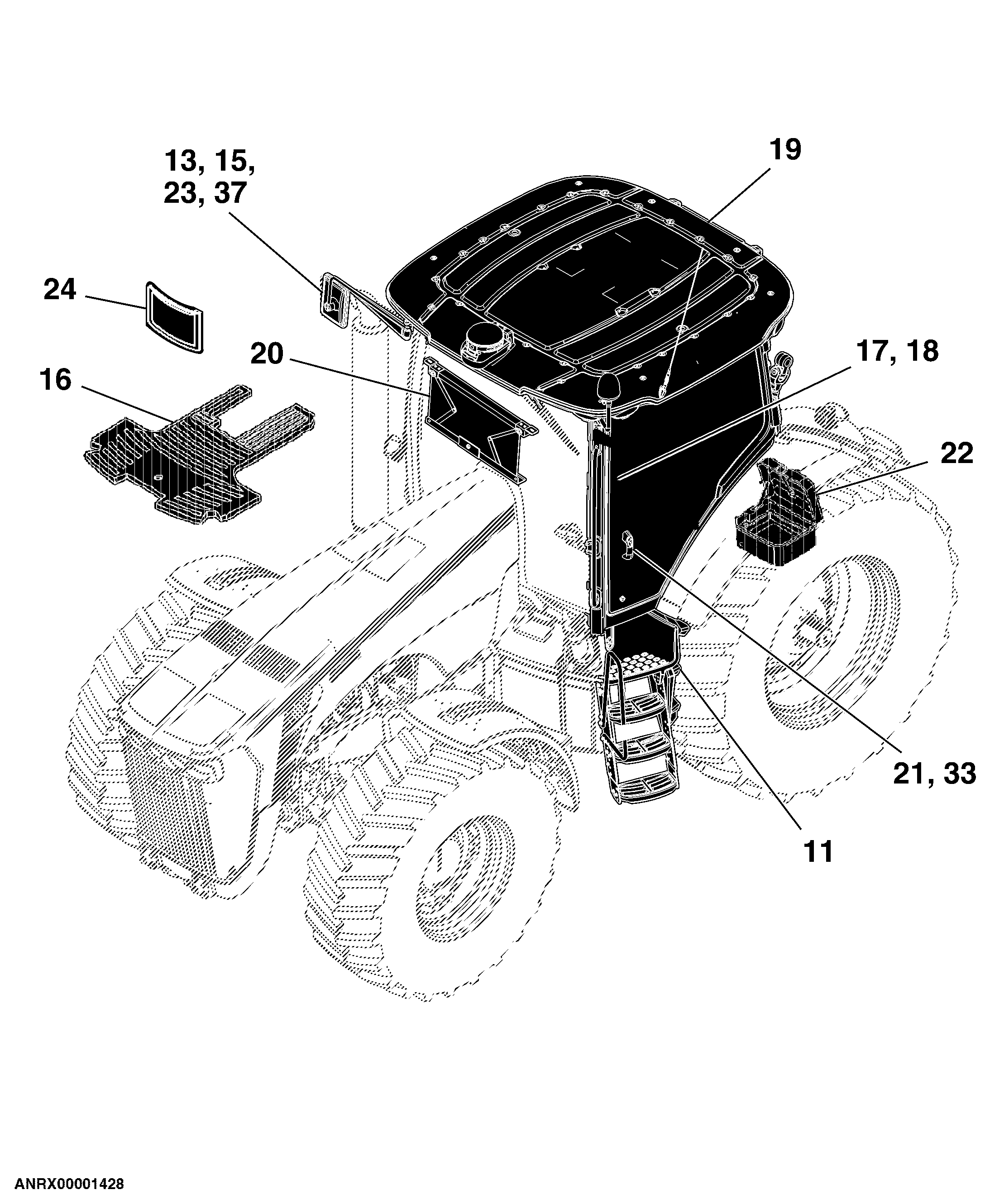

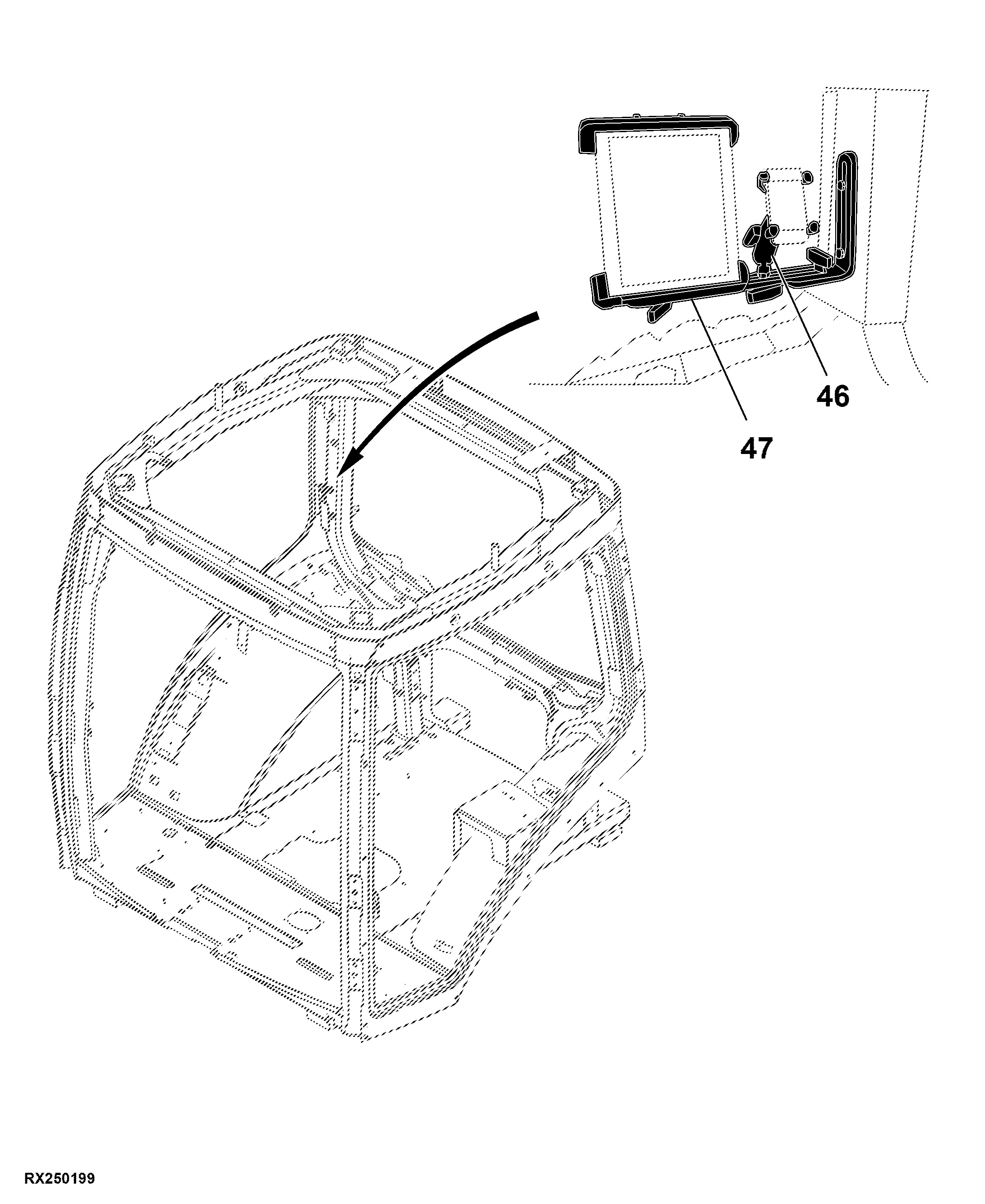

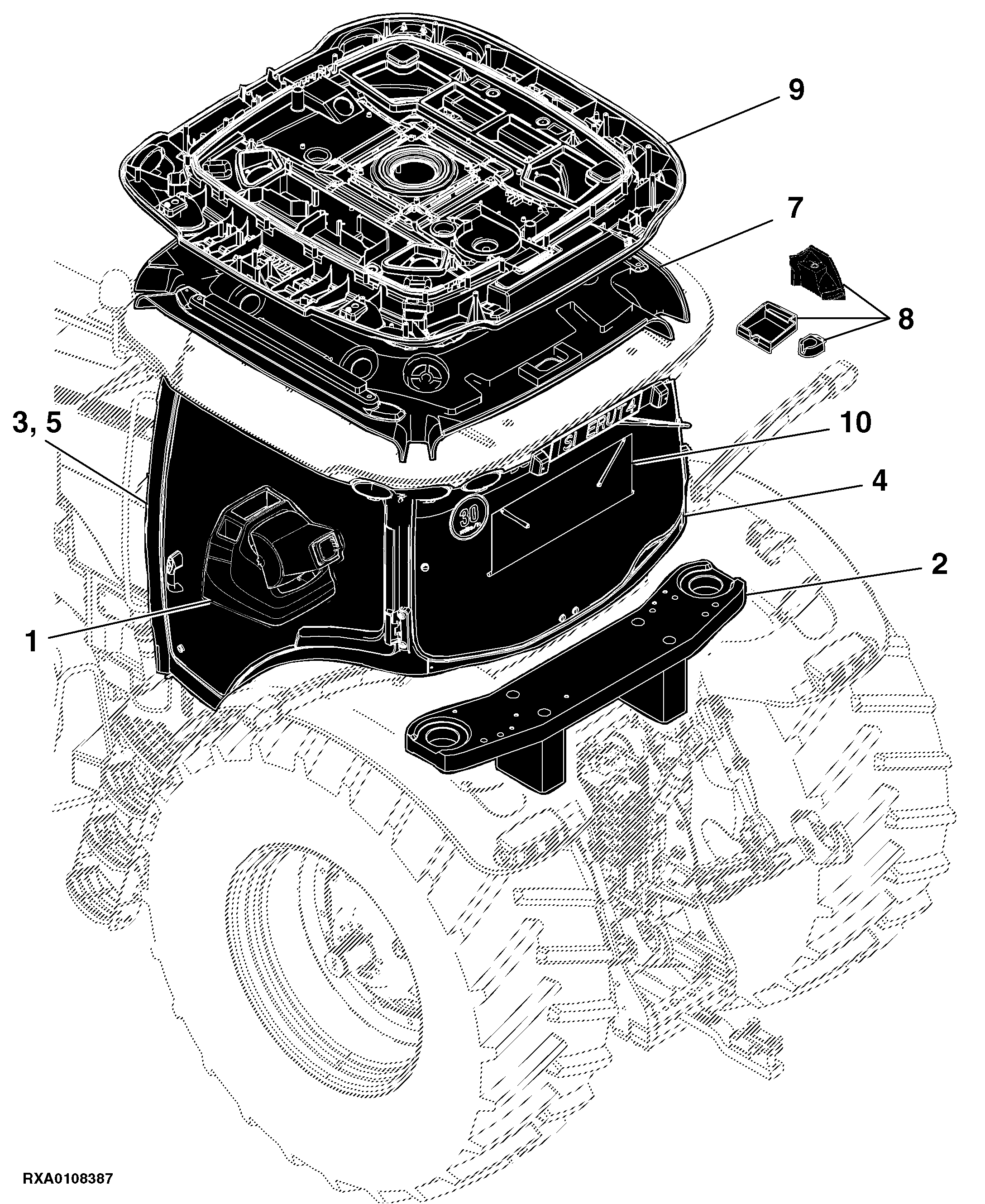

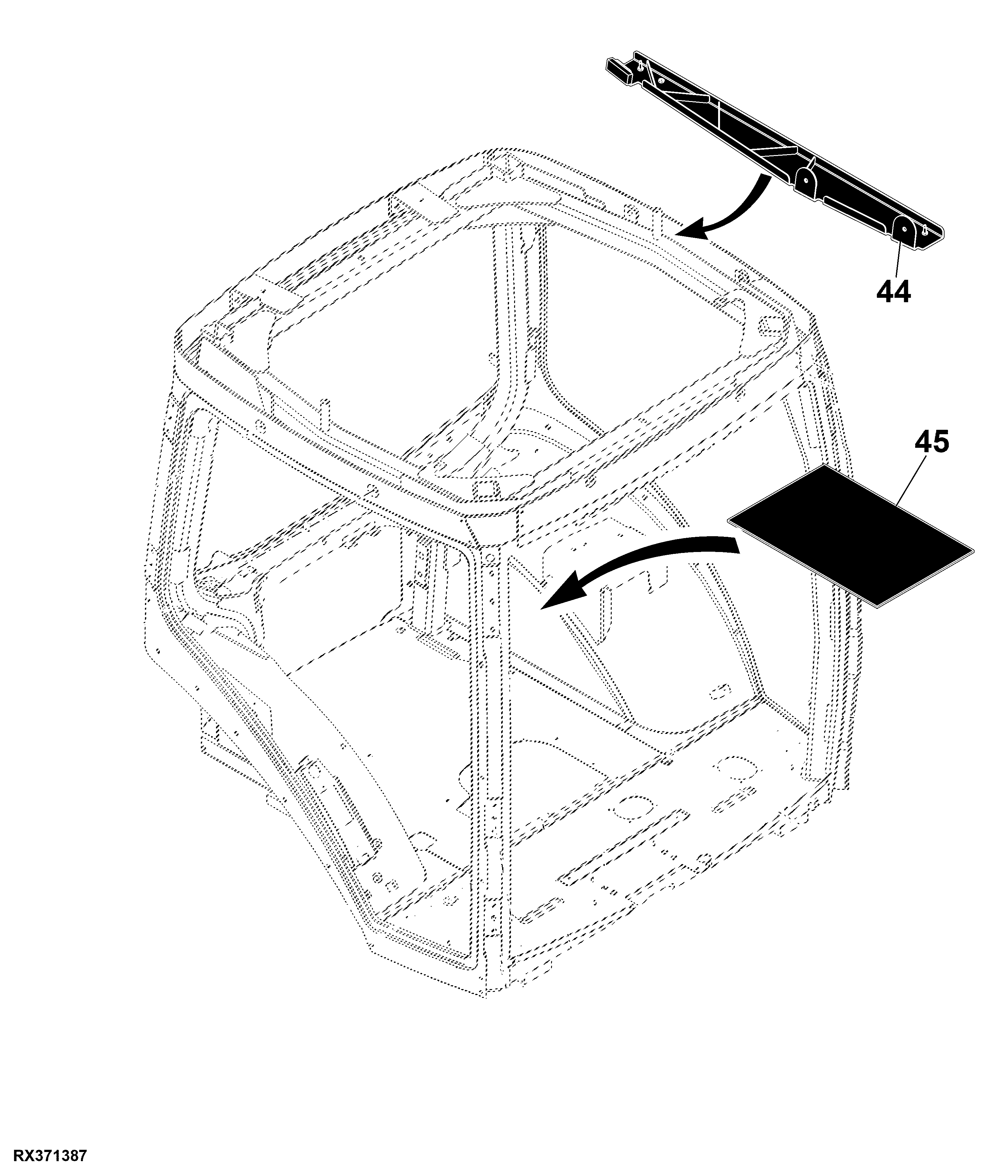

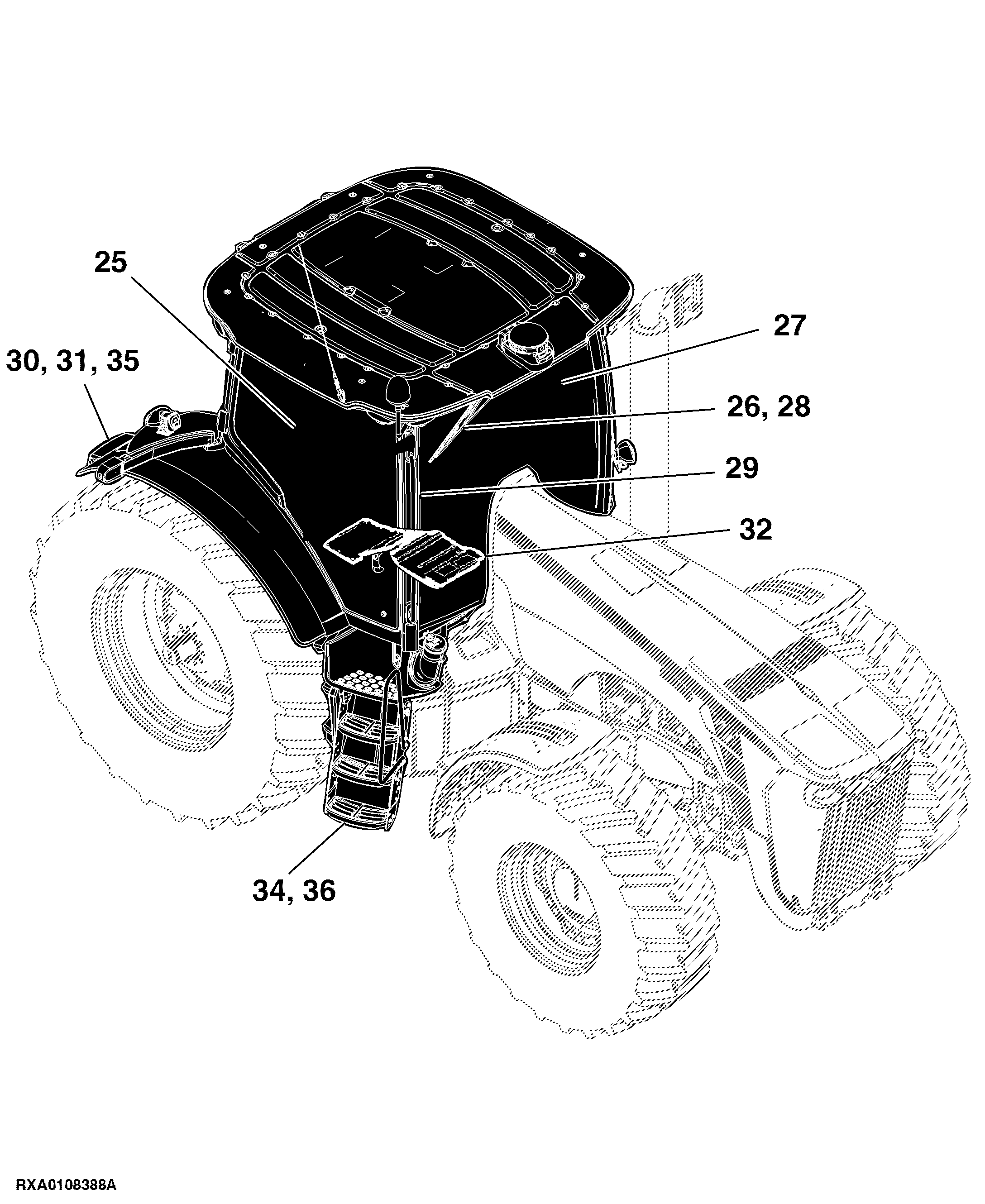

91 Operator’s Station (8320R_RUSSIAN)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rear Panel	-
-	-	1	Insulator, Floor Insulation, Attachment	-
-	-	1	Left Hand Door	-
-	-	1	LEFT HAND DOOR HANDLE	-
-	-	1	Left Hand Step	-
-	-	1	License Plate And Light	-
-	-	1	Mat, Floormat, W/Foot Throttle	-
-	-	1	Mirrors, External, Power Extendable	-
-	-	1	Outer Roof	-
-	-	1	Phone Mounting Bracket	-
-	-	1	Post Cover Panel	-
-	-	1	Post Upholstery, Cab	-
-	-	1	REAR FENDER W/O EXTENSION	-
-	-	1	Rear Fender, W/ Extension, LH Illustrated	-
-	-	1	Inner Roof	-
-	-	1	Rear View Mirror, Internal, Cab	-
-	-	1	Rear Window	-
-	-	1	RH Window, W/ CommandARM™	-
-	-	1	RIGHT HAND STEP	-
-	-	1	ROPS	-
-	-	1	Step, Attachment, RH	-
-	-	1	Tablet Mounting Bracket	-
-	-	1	Tablet Mounting Bracket, Attachment	-
-	-	1	Upholstery Rear Panel, W/ Sub Woofer	-
-	-	1	Windshield	-
-	-	1	Windshield Washer System, W/ Reservoir and Pump	-
-	-	1	Windshield Wiper Motor Assembly With Wiper Kit, Front and Rear	-
-	-	1	EXTERNAL MIRROR KIT (MANUAL)	-
-	-	1	Attachment, Accessory Mounting Bracket	-
-	-	1	Attachment, Bracket, Cell Phone Mounting	-
-	-	1	Attachment, Lockable Door Handle, Field Installation	-
-	-	1	Attachment, Phone Mounting Bracket	-
-	-	1	Attachment, Tablet Mounting Bracket	-
-	-	1	Attachment, Tablet Mounting Bracket W/ 1.5” Ball	-
-	-	1	Bracket Kit, Sunshade, LH, Attachment	-
-	-	1	Bracket, Cell Phone Mounting	-
-	-	1	Bracket, Tablet Mounting W/ 1.5” Ball	-
-	-	1	Bracket, Tablet Mounting W/ 1” Ball	-
-	-	1	Cab Mounts	-
-	-	1	Cowl Assembly, Standard	-
-	-	1	Electric Tilt Mirror, Attachment	-
-	-	1	Acoustical Upholstery, Rear Panel, W/O Sub Woofer	-
-	-	1	External Mirror Kit (Power)	-
-	-	1	EXTERNAL MIRRORS (MANUAL)	-
-	-	1	External Mirrors, Power Tilt	-
-	-	1	FENDER KIT (EXTRA WIDE)	-
-	-	1	FENDER UPHOLSTERY (CAB)	-
-	-	1	Field Office	-
-	-	1	FLOOR	-
-	-	1	Footrest	-
-	-	1	Front Exterior Mirror, Power Tilt, Rear View	-
-	-	1	Front Sunshade	-
-	-	1	Headliner, W/ Microphone	-
-	-	1	Headliner, W/O Microphone	-

91 Operator’s Station (8320R_RUSSIAN)

Нет текстового описания
