Открытый узел

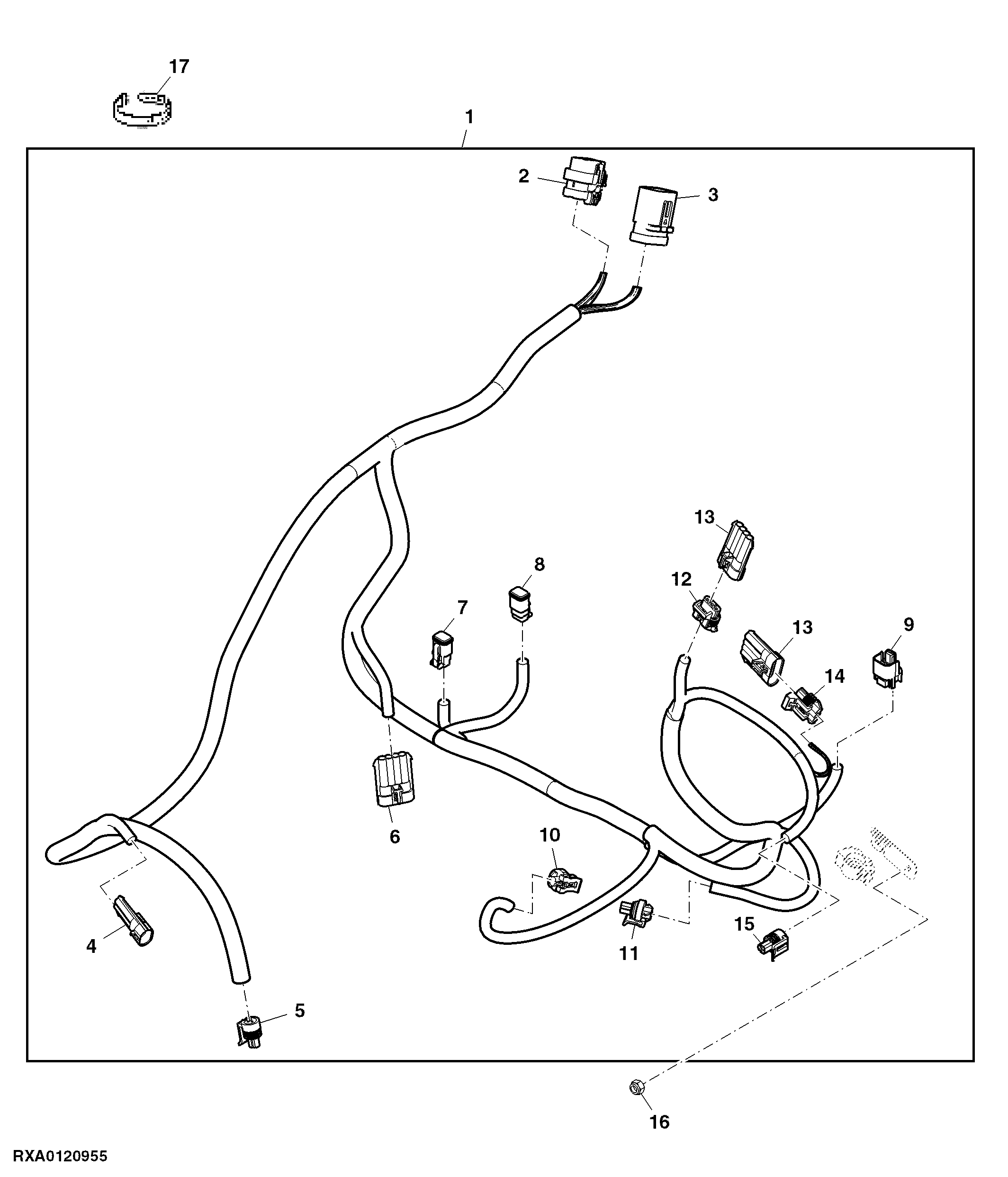

Midframe Wiring Harness, (120" & 160") (907101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE343477	1	Chassis Wiring Harness	-
2	57M9800	1	Elec. Connector Housing	Tracks Chassis 1 USE WITH (2) 57M9809_Pins
3	57M9804	1	Elec. Connector Housing	Tracks Chassis 2 USE WITH (4) 57M9813_Pins, (4) 57M7495_Pins, (4) 57M8165_Seals, (4) 57M9215
4	57M7256	1	Elec. Connector Housing	Steering Charge Pressure USE WITH (2) 57M7495_Pins, (2) 57M9215_Seal
4	57M7289	1	Elec.Connect Locking Device	-
5	57M8625	1	Elec. Connector Housing	Hydro Charge Pressure USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals
5	57M8624	1	Elec.Connect Locking Device	-
6	57M7839	1	Electrical Connector Assy	Electronic Displacement Control USE WITH (4) 57M7495_Pins, (4) 57M9215_Seals
6	57M7469	1	Electrical Connector Assy	-
7	57M8639	1	Elec. Connector Housing	Hydro Loop Override 2 USE WITH (2) 57M8165_Pins
7	57M8022	1	Elec.Connect Locking Device	-
8	57M8639	1	Elec. Connector Housing	Hydro Loop Override 1 USE WITH (2) 57M8165_Pins
8	57M8022	1	Elec.Connect Locking Device	-
9	57M8633	1	Elec. Connector Accessory	-
9	57M8924	1	Elec. Connector Housing	Rear PTO Speed USE WITH (2) 57M8560_Pins, (2) 57M8566_Seals
10	57M8625	1	Elec. Connector Housing	Left Hydro Pressure USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals
10	57M8624	1	Elec.Connect Locking Device	-
11	57M8625	1	Elec. Connector Housing	Right Hydro Pressure USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals
11	57M8624	1	Elec.Connect Locking Device	-
12	57M7255	1	Elec. Connector Housing	Primary Wheel Speed USE WITH (3) 57M7494_Pins, (3) 57M9215_Seals
12	57M7290	1	Elec. Connector Accessory	-
13	57M7257	2	Elec. Connector Housing	Dust Cap
13	57M7290	1	Elec. Connector Accessory	-
14	57M7255	1	Elec. Connector Housing	Secondary Wheel Speed USE WITH (3) 57M7494_Pins, (3) 57M9215_Seals
14	57M7290	1	Elec. Connector Accessory	-
15	57M8625	1	Elec. Connector Housing	Hydraulic Oil Filter Restriction USE WITH (3) 57M8560_Pins, (3) 57M8566_Seals
15	57M8624	1	Elec.Connect Locking Device	-
16	14M7256	1	Wing Nut	M12
17	R44302	8	Tie Band	-

Midframe Wiring Harness, (120" & 160") (907101 - )

Нет текстового описания
