Exhaust Pipe, After Treatment Device Assembly, IT4 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE332651	1	Heat Shield	SUB FOR RE331736 OR RE328278
2	RE574205	1	Exhaust Pipe	SUB FOR RE329970 OR RE327845; ALSO ORDER RE567361
3	RE333135	1	Exhaust Pipe	SUB FOR RE326896
5	RE311281	2	Clamp	-
6	RE330804	1	Pressure Sensor	DPF Assembly INCLUDES RE538131, R311847, RE542003, (2) AT107509 AND (4) 19M7861
7	RE540348	1	Clamp	-
8	RE540260	1	Fitting	-
9	RE538131	1	Pressure Sensor	SUB FOR RE310977
10	RE304965	2	Clamp	-
11	RE577172	1	Exhaust Pipe	SUB FOR RE294637
12	R529510	2	Gasket	-
13	R328477	1	Heat Shield	SUB FOR R321511
14	RE330802	1	Heat Shield	SUB FOR R321089 APPL
15	R529640	1	Gasket	-
16	RE328346	1	Bracket	-
17	R331734	1	Heat Shield	SUB FOR R327988
18	ET14521	2	Bushing	-
19	R324029	1	Support	-
20	R327990	1	Heat Shield	-
21	R311847	1	Adapter Fitting	-
22	19M7788	2	Screw	M12 X 25
23	R332739	1	Shield	SUB FOR R311544
24	R332741	1	Shield	SUB FOR R311543
25	24M7242	2	Washer	21.400 X 42 X 5 mm
26	R328028	1	Shield	-
27	R271337	1	Heat Shield	-
28	R313276	1	Insulator	-
29	R565568	1	Heat Shield	SUB FOR R552009 OR R329007; SUB FOR R210827 APPL
30	L55969	17	Nut	-
31	AT107509	2	Plug	-
32	RE524730	2	Cap Screw	M8 X 12
33	19M7866	22	Screw	M8 X 20
34	19M7865	2	Screw	M8 X 16
35	19M7861	6	Screw	M6 X 10
36	19M7824	4	Screw	M16 X 60
37	19M9141	2	Cap Screw	M20 X 150
38	19M7800	2	Screw	M8 X 50
39	RE331287	1	Chassis Wiring Harness	SUB FOR RE304425
39	RE557788	1	Wiring Harness	-
40	R313267	1	Clamp	-
41	RE567361	1	Clamp	-
42	RE542003	1	Fitting	-
4A	RE311861	1	Tube	Differential Pressure
4B	RE557868	1	Hose	-

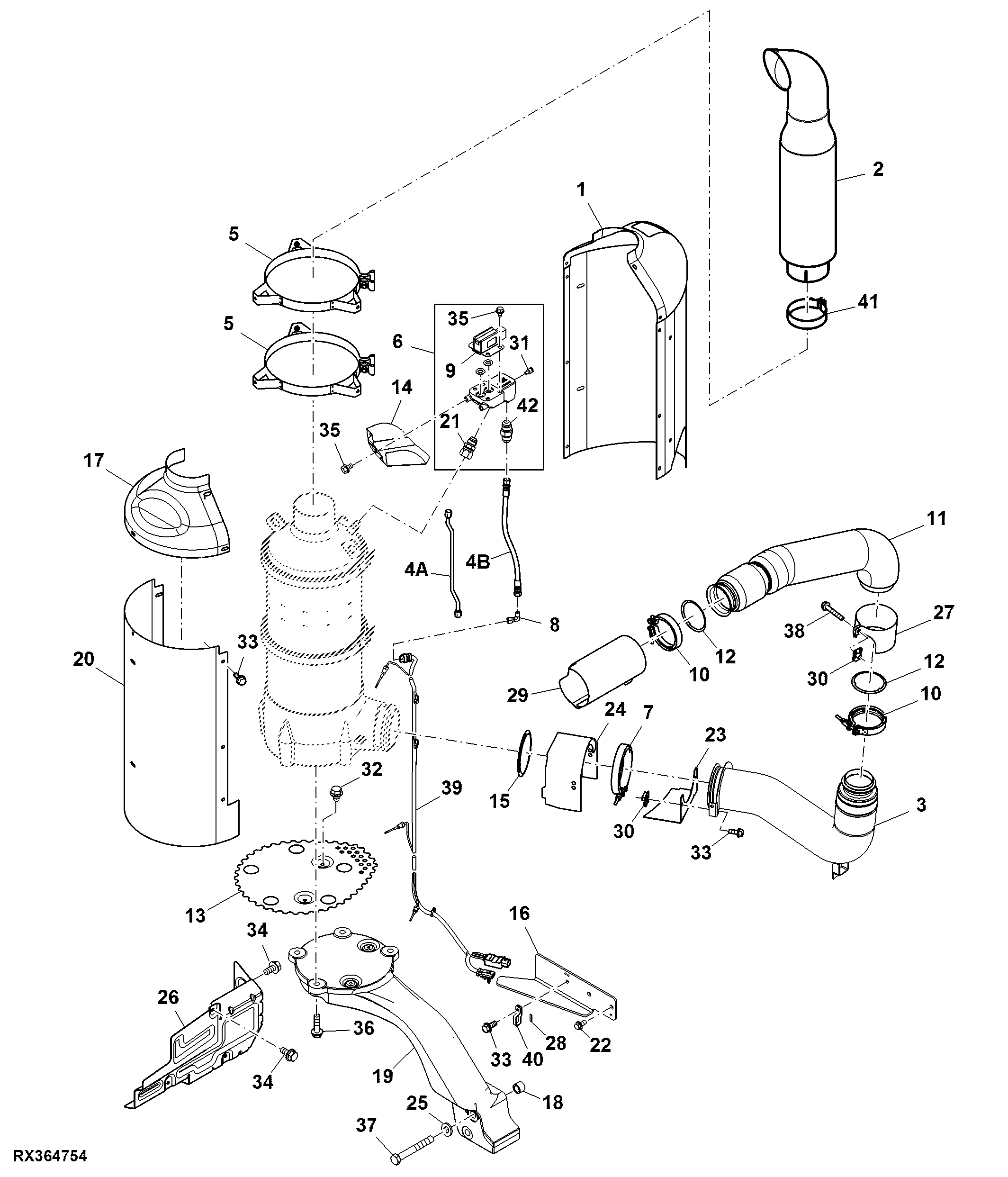

Exhaust Pipe, After Treatment Device Assembly, IT4 Engine
