Открытый узел

Cab Wiring Harness, Midbody Lights, Stage II

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9232	1	Elec. Connector Seal	-
1	57M9231	1	Elec. Connector Housing	USE WITH (13) 57M12011_Pins, Reconfigurable Display
2	57M7718	1	Electrical Connector Assy	-
2	57M7713	1	Electrical Connector Assy	USE WITH (4) 57M7548_Pins, ISO 11786 Connector
3	57M7719	1	Electrical Connector Assy	-
3	57M7714	1	Electrical Connector Assy	USE WITH (6) 57M8808_Pins, Primary Display Unit
4	57M11797	10	Elec. Connector Accessory	-
5	57M10233	1	Tie Band	-
6	57M11346	1	Elec. Connector Housing	USE WITH (2) 57M10113_Pins, 57M10110_Pins; Front Control Support Harness Connector 2
7	57M11348	1	Elec. Connector Housing	USE WITH (5) 57M10106_Pins, 57M10108_Pins, 57M10107_Pins; Front Control Support Harness Connector 1
8	57M11364	4	Elec. Connector Accessory	-
9	19M3140	1	Cap Screw	M10 X 12
10	57M9182	1	Nut	-
11	57M8015	1	Electrical Connector Assy	USE WITH (4) 57M8165_Pins; Cab Implement Can Connector 1
11	57M8016	1	Elec.Connect Locking Device	-
12	57M8021	1	Electrical Connector Assy	USE WITH 57M8165_Pins, 57M7546_Pins; Cab Implement Can Power Connector 1
12	57M8022	1	Elec.Connect Locking Device	-
13	57M7293	1	Elec. Connector Housing	USE WITH 57M7285_Pins AND 57M7292_Seals; Radar For ISO 11786 Connector
13	57M7295	1	Elec.Connect Locking Device	-
14	57M8875	1	Elec. Connector Terminal	Right Junction Block Ground
15	57M8875	1	Elec. Connector Terminal	Right Junction Block Battery Power
16	57M7557	1	Elec. Connector Terminal	Right Junction Block Accessory Power
17	RE186986	1	Junction Block	-
18	14M7297	2	Nut	M5
19	14M7194	1	Nut	M6
20	24M7027	2	Washer	5.300 X 10 X 1 mm
21	24M7105	1	Washer	6 X 12 X 1.600 mm
22	57M8017	1	Elec. Connector Housing	USE WITH (4) 57M8164_Pins; Cab Implement Can Connector 2
22	57M7619	1	Elec.Connect Locking Device	-
23	57M8023	1	Elec. Connector Housing	USE WITH (2) N282069_Pins; Cab Implement Can Power Connector 2
23	57M7621	1	Elec.Connect Locking Device	-
24	57M7294	1	Elec. Connector Housing	USE WITH 57M7297_Pins AND 57M7292_Seals; GPS Receiver
24	57M7295	1	Elec.Connect Locking Device	-
25	57M7293	1	Elec. Connector Housing	Dust Cap
25	57M7295	1	Elec.Connect Locking Device	-
26	57M7294	1	Elec. Connector Housing	USE WITH 57M7297_Pins AND 57M7292_Seals; Radar Sensor
26	57M7295	1	Elec.Connect Locking Device	-
27	57M9183	1	Elec. Connector Housing	USE WITH (4) 57M8164_Pins, (2) N282069_Pins; Service Advisor Connector
28	57M7784	1	Electrical Connector Assy	USE WITH 57M9189_Pins; Tractor CAN for RD Connector
29	-	1	Part 40	Right Side Lighter Power
30	U46662	1	Elec. Connector Terminal	Right Side Lighter Ground
31	R78054	1	Electrical Connector Assy	USE WITH (3) R78061_Pins AND (3) 57M9218_Seals; Convenience Outlet
32	57M8012	1	Electrical Connector Assy	USE WITH (6) 57M8165_Pins; ISO Relay Box Connector
32	57M8013	1	Elec.Connect Locking Device	-
33	RE339329	1	Relay	-
34	57M9354	1	Elec. Connector Housing	-
35	37M7352	1	Screw	-
36	57M7784	1	Electrical Connector Assy	USE WITH (2) 57M7500_Pins; Right Extremity Light
37	57M11352	1	Elec. Connector Housing	USE WITH (16) 57M12012_Pins, (8) 57M10106_Pins, (3) 57M10108_Pins, (3) 57M10107_Pins; AC Harness Connector
38	57M11349	1	Elec. Connector Housing	USE WITH (17) 57M10106_Pins, (10) 57M12012_Pins, (3) 57M10108_Pins, 57M10107_Pins; Roof Harness Connector
39	57M8616	1	Elec. Connector Housing	USE WITH (7) 57M8164_Pins, (6) 57M9224_Pins, (5) N282069_Pins, (5) 57M8260_Pins, N282068_Pins; Chassis Harness Connector 1
40	57M9226	2	Elec. Connector Seal	-
41	E73240	2	Nut	-
42	57M11349	1	Elec. Connector Housing	USE WITH (24) 57M12012_Pins, (7) 57M10106_Pins, (4) 57M10107_Pins; Armrest Harness Connector
43	57M8857	1	Elec. Connector Housing	USE WITH (18) 57M8863_Pins, (3) 57M8862_Pins; Seat Harness Connector
43	57M8859	2	Elec.Connect Locking Device	-
43	57M8860	1	Elec.Connect Locking Device	-
44	57M8910	1	Clip	-
45	57M8865	1	Elec. Connector Terminal	Ground
46	57M8113	1	Electrical Connector Assy	USE WITH (9) 57M8164_Pins, (8) N282069_Pins, (3) R78068_Pins, 57M8260_Pins; Chassis Harness Connector 2
47	37M7095	1	Screw	-
48	L171800	1	Strap	-
49	57M11796	4	Elec. Connector Accessory	-
50	57M8821	1	Elec. Connector Terminal	Cab Battery Power
51	57M7264	1	Elec. Connector Housing	USE WITH (7) R104919_Pins AND (4) 57M9215_Seals, (3) 57M7258_Seals; Right Fender Harness Connector
51	57M7283	1	Elec.Connect Locking Device	-
52	57M8821	1	Elec. Connector Terminal	Cab Battery Power
53	R78054	1	Electrical Connector Assy	USE WITH (3) R78061_Pins AND (3) 57M9218_Seals; Convenience Outlet 2
54	-	1	Part 69	Left Side Light Power
55	U46662	1	Elec. Connector Terminal	Left Side Lighter Ground
56	57M11347	1	Elec. Connector Housing	USE WITH (6) 57M8295_Pins, (5) 57M8885_Pins; Splice Pack 1
57	57M7782	1	Electrical Connector Assy	Right Extremity Light
57	57M8907	1	Elec.Connect Locking Device	-
58	H118422	1	Elec. Connector Terminal	Sub-Woofer Connector
59	57M10609	1	Elec. Connector Housing	USE WITH (13) 57M8530_Pins, (5) 57M10331_Pins; Cab Flex Controller J1 Connector
60	57M10604	5	Elec. Connector Housing	-
61	57M10615	1	Elec. Connector Housing	USE WITH (30) 57M8530_Pins, (7) 57M10331_Pins; Cab Flex Controller J2 Connector
62	57M10613	1	Elec. Connector Housing	-
63	57M10606	1	Elec. Connector Housing	USE WITH (3) 57M10330_Pins; Cab Flex Controller J3 Connector
64	R343435	2	Grommet	-
65	57M10611	1	Elec. Connector Housing	USE WITH (12) 57M10330_Pins, (2) 57M10331_Pins; TECU/Cab Load Center J3 Connector
66	19M9805	2	Socket Head Screw	M3 X 16
67	57M10605	1	Elec. Connector Housing	USE WITH (20) 57M10330_Pins, (6) 57M10331_Pins; TECU/Cab Load Center J2 Connector
68	14M7196	2	Nut	M3
69	57M10605	1	Elec. Connector Housing	USE WITH (12) 57M10330_Pins, (3) 57M10331_Pins; TECU/Cab Load Center J1 Connector
70	RE307732	1	Cab Wiring Harness	-
71	57M7264	1	Elec. Connector Housing	USE WITH (8) 57M7252_Pins AND (4) 57M7258_Seals, (4) 57M9215_Seals
71	57M7283	1	Elec.Connect Locking Device	-
72	RE248995	1	Wiring Harness	-
73	57M7712	1	Electrical Connector Assy	USE WITH (4) 57M7751_Pins; Cab harness
73	RWA11122	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
74	37M7089	3	Screw	M6 X 12
75	57M7784	1	Electrical Connector Assy	USE WITH (2) 57M7500_Pins; Left Extremity Light
75	57M7723	1	Electrical Connector Assy	-
76	57M7782	1	Electrical Connector Assy	USE WITH 57M7500_Pins; Left Extremity Light

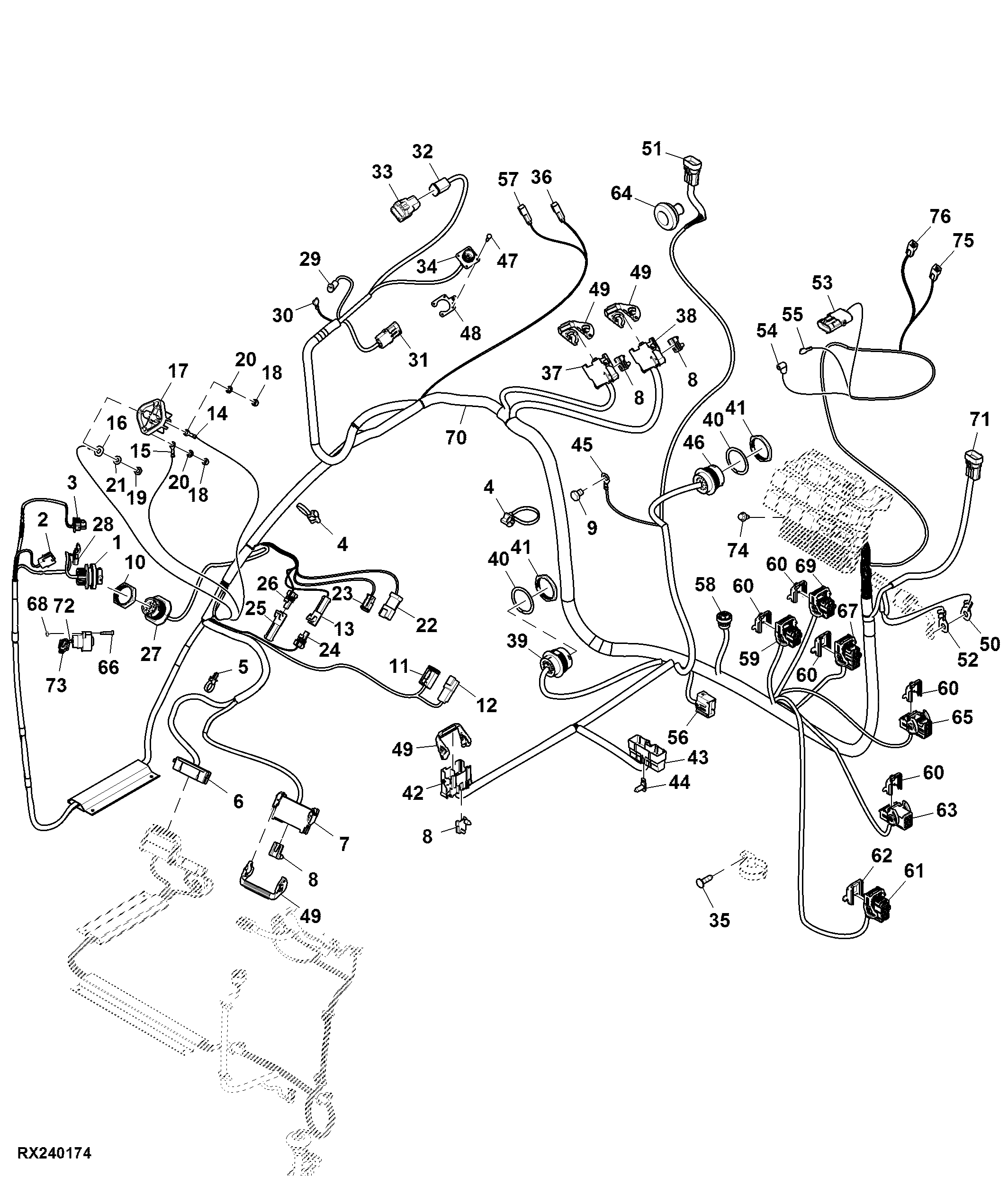

Cab Wiring Harness, Midbody Lights, Stage II
