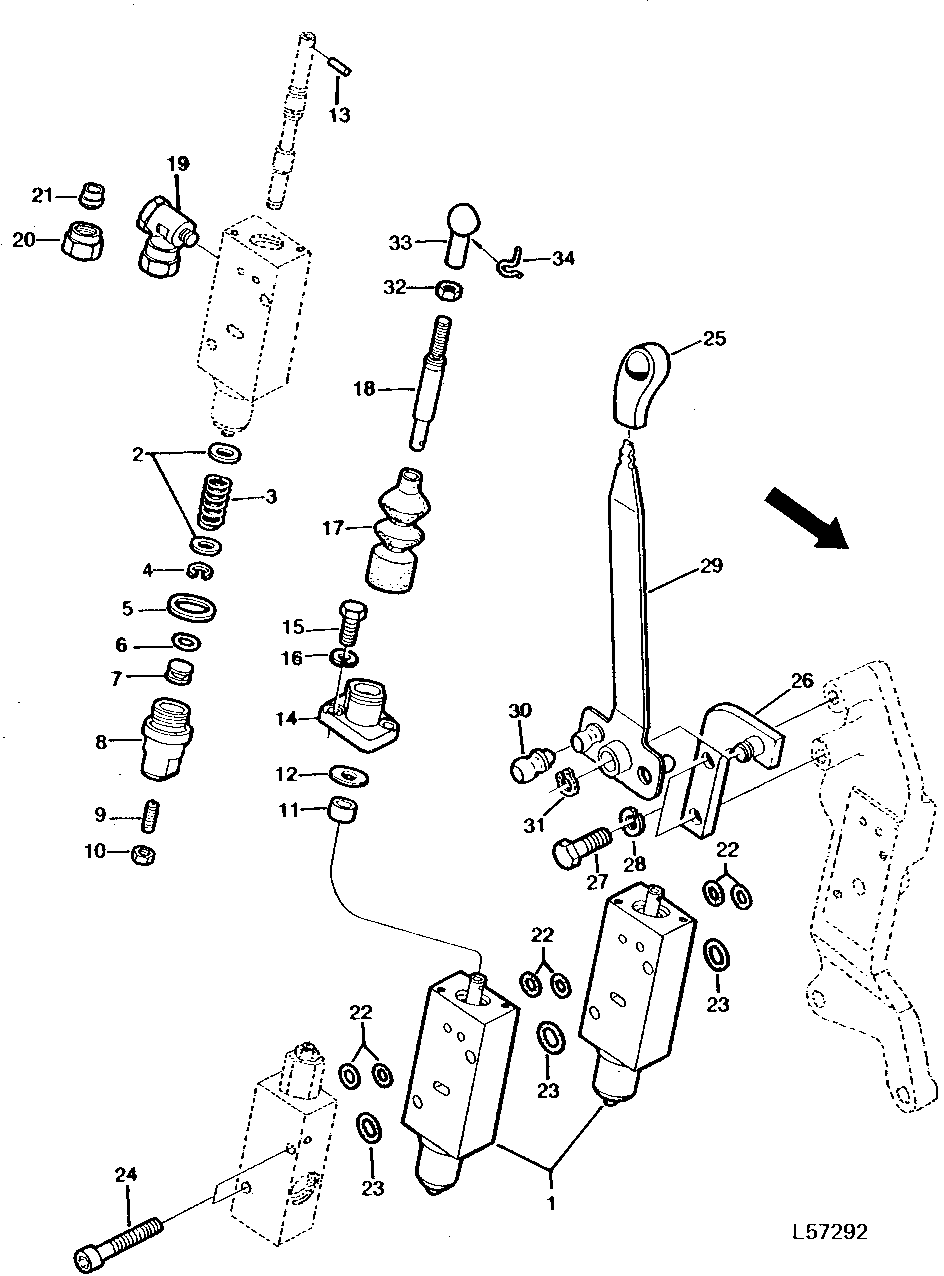

SELECTIVE CONTROL VALVES AND CONTROL LEVER (DOUBLE ACTING) [01K03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL26986	1	SELECTIVE CONTROL VALVE	(INCLUDES L17056, L18893, (2) L20095, L31754, L39810 AND 51M4245)
1	AL14160	2	CONTROL	(INCLUDES KEYS 2 THRU 10) (SUB AL26986)
2	L20095	4	Washer	-
3	L17056	2	Spring	-
4	L18893	2	Snap Ring	-
5	51M4245	2	Sealing Ring	-
6	L53826	2	O-RING	-
7	L20093	2	WASHER	-
8	L20094	2	COVER	-
9	L39810	2	SET SCREW	M6 X 16
10	14M1775	2	NUT	M6
10	AL26986	1	SELECTIVE CONTROL VALVE	(INCLUDES L17056, L18893, (2) L20095, L31754, L39810 AND 51M4245)
11	L20102	2	Seal	-
12	L17658	2	Washer	-
13	R53218	2	Needle Roller	-
14	L17659	2	COVER	-
15	19M7375	4	CAP SCREW	M6 X 18
16	12H302	4	Lock Washer	1/4"
17	L17657	2	BOOT	-
18	AT23719	2	BALL JOINT	-
19	AL14157	2	UNION FITTING	(INCLUDES 15M6139 AND 15M6130)
19	51M4238	2	Sealing Ring	-
20	15M6139	2	FITTING	M12
21	15M6130	2	SLEEVE FITTING	M12
22	L53830	6	O-RING	-
23	L53836	1	O-Ring	-
24	19H3246	2	SCREW	5/16" X 4"
25	R54275	1	GRIP	-
26	AR51872	1	BRACKET	-
27	19H2021	2	Cap Screw	3/8" X 5/8"
28	12H304	2	Lock Washer	3/8"
29	AR66939	1	LEVER	(SUB FOR AR51873) (INCLUDES 55M6194)
30	55M6194	2	BALL STUD	-
31	40M1821	1	Snap Ring	M15 X 1
32	14M7273	2	Nut	M8
33	56M4437	2	BALL JOINT SOCKET	-
34	56M7004	1	Ball Joint Retainer	-

SELECTIVE CONTROL VALVES AND CONTROL LEVER (DOUBLE ACTING) [01K03]
