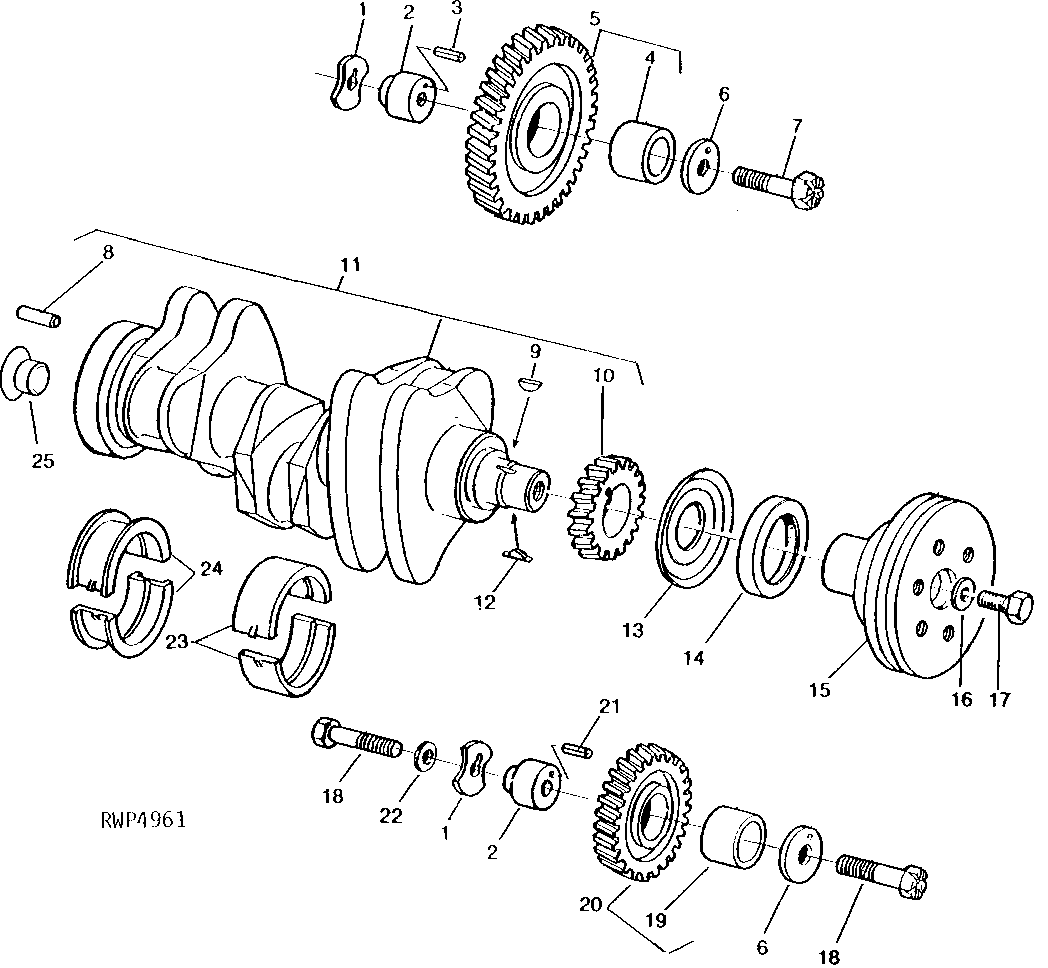

CRANKSHAFT, TIMING GEARS AND MAIN BEARINGS [01B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T26324	2	THRUST WASHER	INNER
2	T26323	2	SHAFT	(SUB R109863, P42337 AND 19H3011)
3	34H283	1	Spring Pin	3/16" X 1-1/8"
4	T20034	1	Bushing	-
5	AR91660	1	Gear	UPPER, (SUB FOR AT18009)
6	T26326	2	THRUST WASHER	OUTER
7	T26327	1	Screw	-
8	T26565	1	Dowel Pin	-
9	26H72	1	Shaft Key	1/8" X 5/8"
10	T20094	1	Helical Gear	-
11	AT18031	1	CRANKSHAFT	-
12	T23604	1	SHAFT KEY	-
13	T20046	1	Oil Slinger	-
14	AT21608	1	SEAL	(SUB AR67942)
15	T25366	1	PULLEY	(SUB R59915)
16	T20217	1	Washer	-
17	19H1721	1	CAP SCREW	1/2" X 1-1/2"
18	T26325	2	SCREW	-
19	T26321	1	Bushing	-
20	AT24252	1	GEAR	LOWER
21	34H286	1	Spring Pin	3/16" X 1-1/2"
22	24H1890	1	Washer	19/32" X 1" X 1/4"
23	AT21140	3	Bearing	STD PLAIN (2 HALVES)
23	AT21108	3	BEARING	0.05MM (.002") U.S. PLAIN (2 HALVES)
23	AT21110	3	BEARING	0.25MM (.010") U.S. PLAIN (2 HALVES)
23	AT21112	3	BEARING	0.51MM (.020") U.S. PLAIN (2 HALVES)
23	AT21114	3	BEARING	0.76MM (.030") U.S. PLAIN (2 HALVES)
24	AT21139	1	BEARING	STD (2 HALVES)
24	AT21130	1	BEARING	0.05MM (.002") U.S. (2 HALVES)
24	AT21132	1	BEARING	0.25MM (.010") U.S. (2 HALVES)
24	AT21134	1	BEARING	0.51MM (.020") U.S. (2 HALVES)
24	AT21136	1	BEARING	0.76MM (.030") U.S (2 HALVES)
25	T20445	1	PLUG	-

CRANKSHAFT, TIMING GEARS AND MAIN BEARINGS [01B05]
