Открытый узел

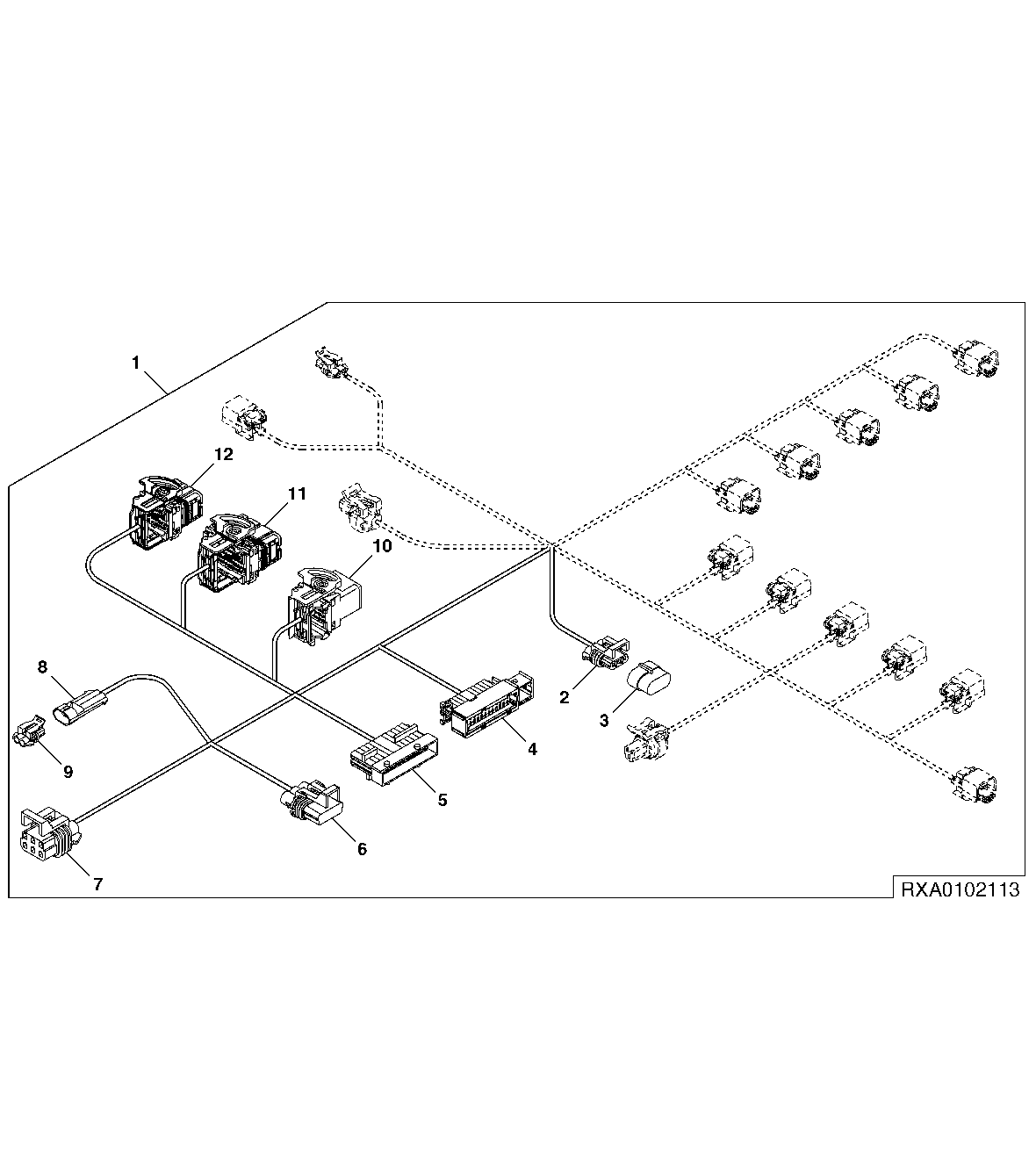

Wiring Harness, Transmission, PST, 2/2

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE267950	1	Chassis Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	Diagnostic Pressure USE WITH (3) 57M7494_Pins, (3) 57M9215_Seals
2	57M7317	1	Elec. Connector Accessory	-
3	57M7257	1	Elec. Connector Housing	Dust Cap
3	57M7317	1	Elec. Connector Accessory	-
4	57M8944	1	Elec. Connector Housing	Chassis Harness Connector 3 USE WITH (17) 57M8621_Pins, (5) 57M8942_Pins, (17) 57M7400_Seals, (5) 57M7399_Seals
4	57M8943	1	Elec.Connect Locking Device	-
5	57M8070	1	Elec. Connector Housing	Chassis Harness Connector 2 USE WITH (16) 57M8732_Pins, (2) 57M8733_Pins, (16) 57M7400_Seals, (2) 57M7399_Seals
5	57M8943	1	Elec.Connect Locking Device	-
5	57M8076	1	Elec. Connector Terminal	-
6	57M7280	1	Elec. Connector Housing	Chassis Harness Connector 1 USE WITH (3) 57M7298_Pins, (3) 57M9218_Seals
6	57M7274	1	Elec. Connector Accessory	-
7	57M7260	1	Elec. Connector Housing	Can Terminator USE WITH (3) 57M7494_Pins, (3) 57M9215_Seals
7	57M7291	1	Electrical Connector Assy	-
8	57M7256	1	Elec. Connector Housing	Back-up Alarm USE WITH (2) 57M7495_Pins, (2) 57M9215_Seals
8	57M7289	1	Elec.Connect Locking Device	-
9	57M7254	1	Elec. Connector Housing	Dust Cap
9	57M7289	1	Elec.Connect Locking Device	-
10	57M8523	1	Elec. Connector Housing	FVC Controller J1 USE WITH (18) 57M7298_Pins, (5) 57M8531_Pins
10	57M8528	1	Electrical Connector Cap	-
11	57M8527	1	Elec. Connector Housing	FVC Controller J2 USE WITH (21) 57M8530_Pins, (4) 57M8531_Pins, (3) 57M9184_Pins
11	57M8529	1	Electrical Connector Cap	-
12	57M8522	1	Elec. Connector Housing	FVC Controller J3 (5) 57M8531_Pins, (9) 57M8530_Pins, (2) 57M9184_Pins
12	57M8528	1	Electrical Connector Cap	-

Wiring Harness, Transmission, PST, 2/2
