Front Line Bundle W/O Ether Aid, Group 47/48 Tires, ILS™/ 1300 MFWD, T3 Engine (2/2) (100096 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE561618	1	Refrigerant Hose	A/C Pressure
2	RE567675	1	Line	A/C Suction ORDER RE582473
2	RE582473	1	Line	A/C Suction
3	RE575051	1	Line	Coolant, Supply From Engine ORDER RE588254; ALSO ORDER R544348
3	RE588254	1	Line	Coolant Supply from Engine
4	RE252625	1	Hose Fitting	-
5	R191781	2	Hose Clamp	-
6	R183411	1	O-Ring	-
7	R46414	2	Clamp	-
8	H112567	1	Plate	-
9	19M7803	1	Screw	M8 X 70
10	R544348	2	Hose	Coolant Supply
10	R560925	1	Hose	Coolant Supply USE WITH RE588254
11	R552258	1	Hose	Coolant Return
12	R183409	4	O-Ring	-
13	19M7866	4	Screw	M8 X 20
14	14M7396	1	Lock Nut	M8
15	RE562559	1	Refrigerant Hose	A/C Receiver/ Dryer USE WITH RE567827
15	RE586441	1	Refrigerant Hose	A/C Receiver/ Dryer USE WITH RE582369
16	RE562560	1	Refrigerant Hose	A/C Condenser USE WITH RE561616
16	RE586439	1	Refrigerant Hose	A/C Condenser USE WITH RE584839
17	R183410	2	O-Ring	-
18	T75197	1	Clamp	USE WITH RE562559
19	14M7298	4	Flange Nut	M8
19	14M7298	3	Flange Nut	M8
20	H128515	2	Clamp	-
21	H121163	1	Strap	-
22	RE309592	1	Oil Tube	Pressure Supply
23	38H5100	1	Union Fitting	-
24	T77613	2	O-Ring	-
25	38H5091	1	Nut	11/16"
26	R538829	1	Hose	Heater Return USE WITH R550914
26	R558750	1	Hose	Heater Return USE WITH R558748
27	RE575050	1	Support	INCLUDES (3) 14M7233
28	E53830	2	Clamp	-
29	H111730	2	Clamp	-
30	R244801	1	Spacer	-
31	R114103	1	Clamp	-
32	19M7897	1	Screw	M8 X 35
33	R34557	1	Clamp	-
34	AH107416	2	Clip	-
35	T184924	6	Hose Clamp	-
36	14M7233	3	Weld Nut	M8
37	R560051	1	Clamp	-
38	R560052	1	Plate	-
39	T27523	1	Clamp	USE WITH RE582473

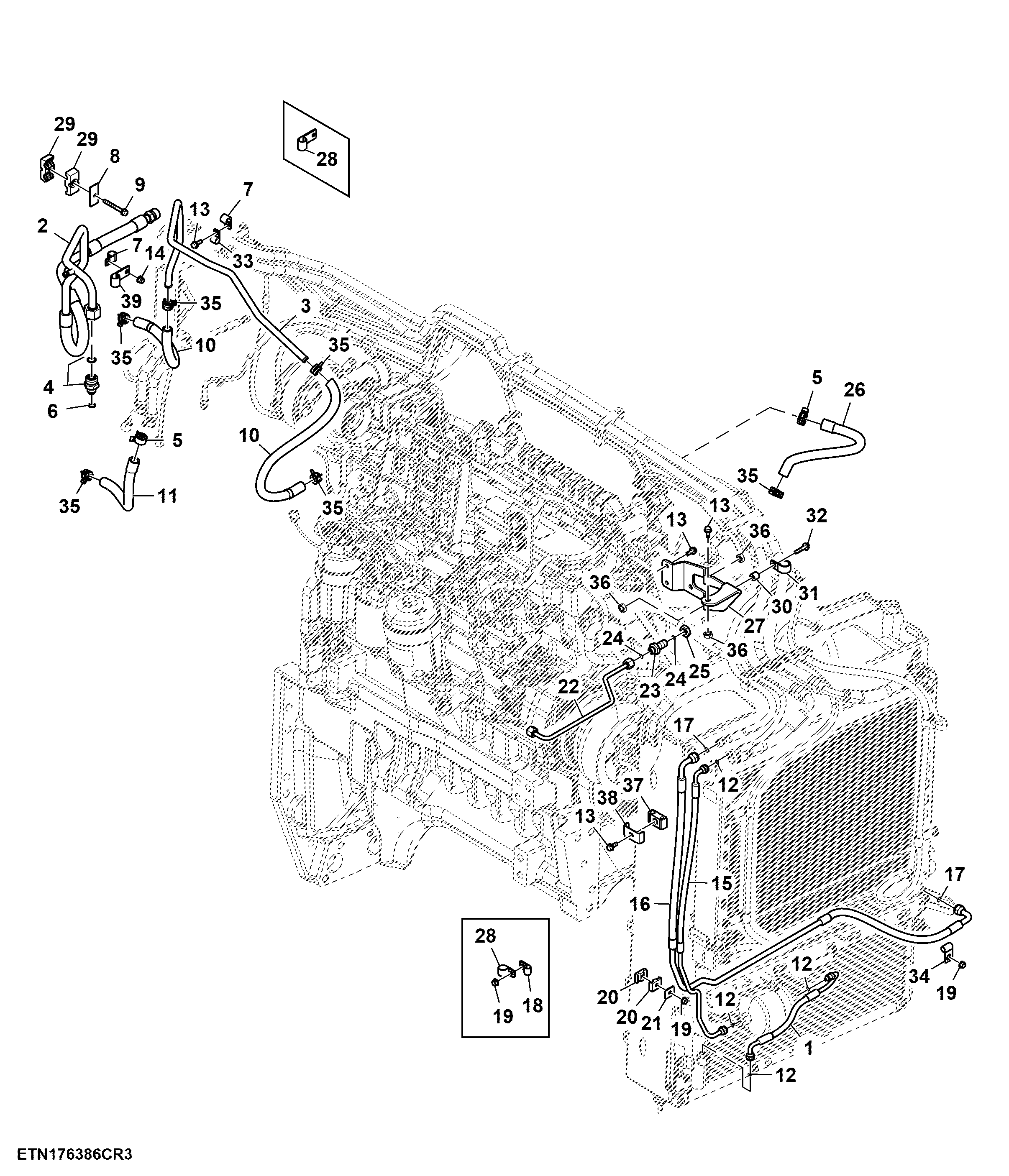

Front Line Bundle W/O Ether Aid, Group 47/48 Tires, ILS™/ 1300 MFWD, T3 Engine (2/2) (100096 - )
