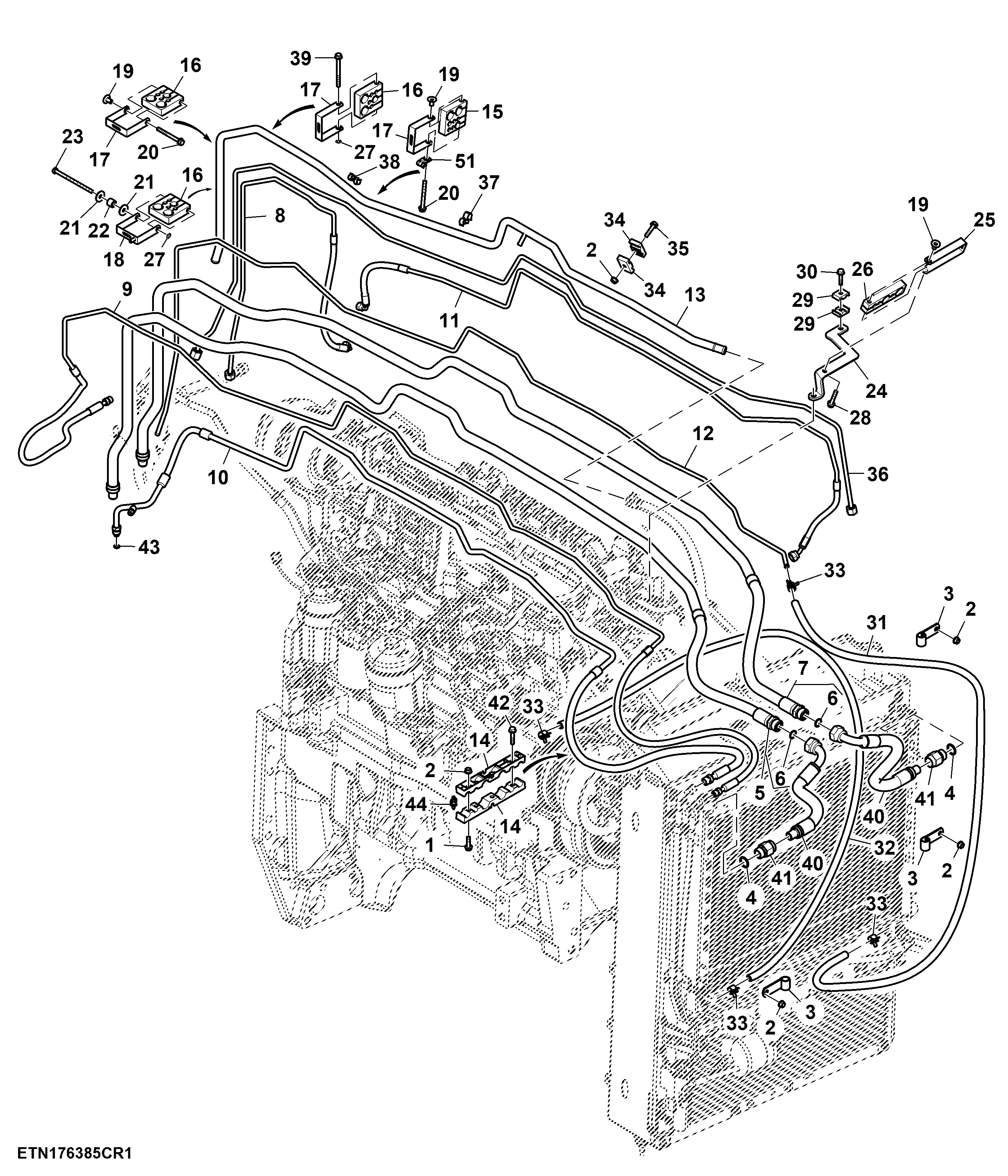

Front Line Bundle W/O Ether Aid, Group 47/48 Tires, 1500 MFWD, T3 Engine (1/2) (100097 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7868	2	Screw	M8 X 30
2	14M7298	7	Flange Nut	M8
3	R544540	4	Clamp	-
4	51M7047	2	O-Ring	23.600 X 2.900 mm
5	RE562617	1	Oil Line	From Cooler
6	T77858	2	O-Ring	-
7	RE562616	1	Oil Line	To Cooler
8	RE576656	1	Oil Line	Fan Drive Supply
9	RE567827	1	Refrigerant Hose	A/C Pressure ORDER RE582369
9	RE582369	1	Refrigerant Hose	A/C Pressure
10	RE561616	1	Refrigerant Hose	A/C Pressure To Condenser ORDER RE584839
10	RE584839	1	Refrigerant Hose	A/C Pressure To Condenser
11	RE574285	1	Line	Fan Drive Pressure
12	R544430	1	Fuel Line	Return ORDER R558746
12	R558746	1	Fuel Line	Return
13	R550914	1	Line	Auxiliary Coolant Return ORDER R558748
13	R558748	1	Line	-
14	R552478	2	Half Clamp	ORDER R560532
14	R560532	2	Half Clamp	-
15	R552146	2	Block Clamp	-
16	R552147	3	Block Clamp	-
17	R307289	4	Channel	-
18	RE567806	1	Strap	-
19	R187365	4	Nut	-
20	19M8039	3	Screw	M8 X 80
21	24M7024	2	Washer	9 X 28 X 3 mm
22	28H3376	1	Spacer	0.364" X 0.540" X 9/16"
23	19M9453	1	Cap Screw	M8 X 130
24	R317479	1	Bracket	-
25	R319544	1	Channel	-
26	R319543	1	Block Clamp	-
27	M84309	2	Nut	-
28	19M8319	1	Screw	M8 X 50
29	H128515	2	Clamp	-
30	19M7897	1	Screw	M8 X 35
31	R540852	1	Hose	Fuel Return USE WITH R544430
32	RE574371	1	Hose	Fuel Cooler
33	R202160	4	Clamp	-
34	H108291	2	Clamp	-
35	19M9839	1	Screw	M8 X 35
36	RE574286	1	Line	Differential Lock Supply
37	L171496	2	Clamp	-
38	L156556	4	Clamp	-
39	19M7913	1	Screw	M8 X 90
40	RE561613	2	Hydraulic Hose	Oil Cooler
41	62M1002	2	Adapter Fitting	-
42	19M7798	2	Screw	M8 X 40
43	R183410	1	O-Ring	-
44	RE258807	1	Tie Band	-

Front Line Bundle W/O Ether Aid, Group 47/48 Tires, 1500 MFWD, T3 Engine (1/2) (100097 - )
