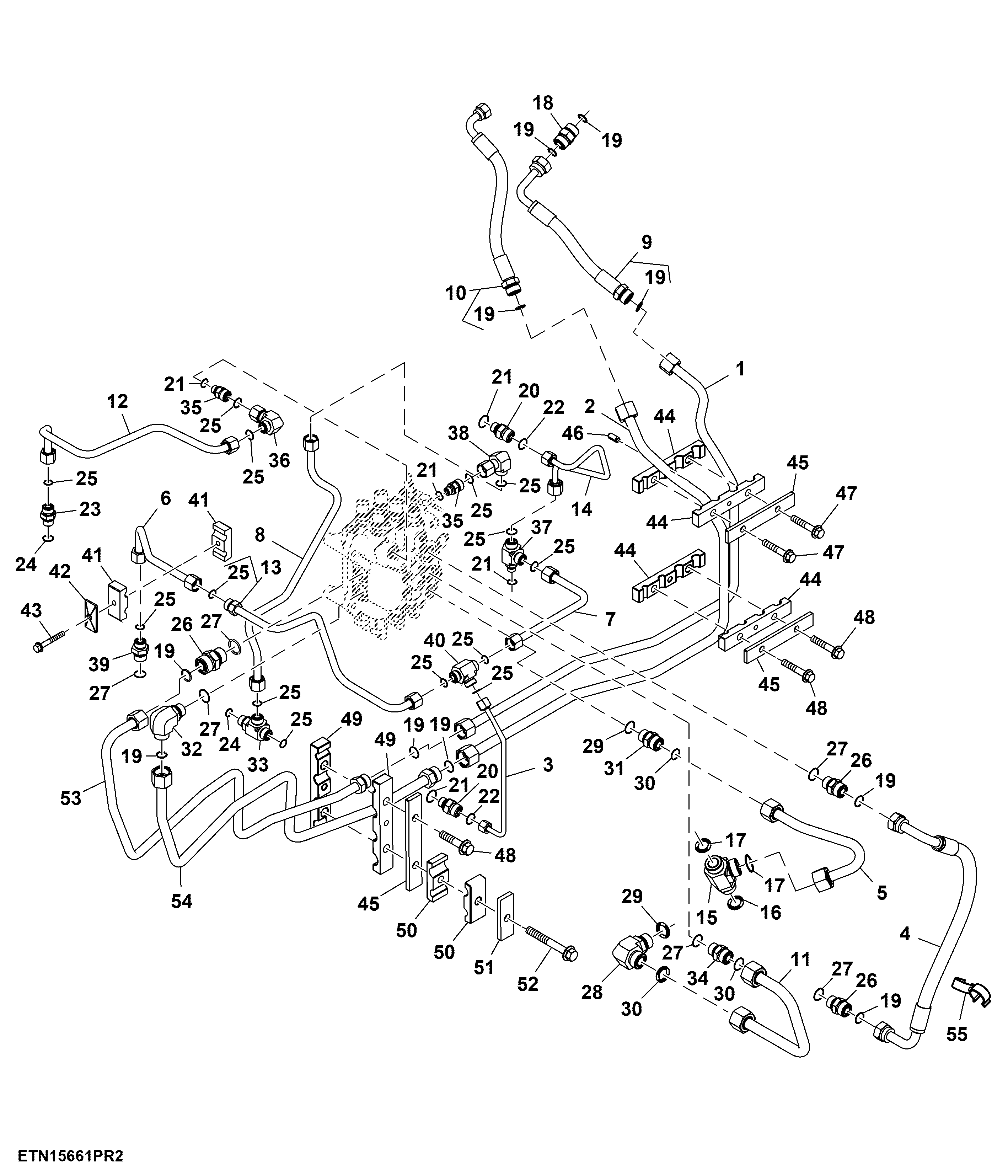

Steering System, W/ ACS™

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE330800	1	Oil Line	(Port A on Manifold to Steering Valve)
2	RE330798	1	Oil Line	(Port B on Manifold to Steering Valve)
3	RE312029	1	Oil Line	(Manifold to Tank Return)
4	RE310995	1	Hydraulic Hose	ORDER RE345816
4	RE345816	1	Hydraulic Hose	P Port to EH Port on Manifold
5	RE306940	1	Oil Line	(Check Valve to SCV Line)
6	RE312862	1	Oil Line	(Top of Diff Case to Tank Return Line)
7	RE312245	1	Oil Line	(Check Valve to Return Cross on Tank)
8	RE307470	1	Oil Line	BUPS Port on ACS™ valve to BU Port on Primary Manifold
9	RE305230	1	Hydraulic Hose	(Port A line to RH Steering Line)
10	RE304987	1	Hydraulic Hose	(Port B Line to LH Steering Line)
11	RE305225	1	Oil Line	Check Valve to ACS™ Valve
12	RE312027	1	Oil Line	ACS™ Valve PT Port to Cross
13	RE312031	1	Oil Line	(Tank Return Line)
14	RE319067	1	Oil Line	BLS on ACS™ to Drain on 12Bar Check
15	38H5110	1	Tee Fitting	-
16	51M7048	1	O-Ring	29.600 X 2.900 mm
17	T76938	2	O-Ring	-
18	38H1280	1	Union Fitting	-
19	T77932	10	O-Ring	-
20	38H5002	2	Adapter Fitting	-
21	51M7041	5	O-Ring	11.300 X 2.200 mm
22	T77613	2	O-Ring	-
23	38H5003	1	Adapter Fitting	-
24	51M7043	2	O-Ring	15.300 X 2.200 mm
25	T77857	14	O-Ring	-
26	38H5004	3	Adapter Fitting	-
27	51M7045	6	O-Ring	19.300 X 2.200 mm
28	38H5019	1	Elbow Fitting	-
29	51M7047	2	O-Ring	23.600 X 2.900 mm
30	T77858	3	O-Ring	-
31	38H5005	1	Adapter Fitting	-
32	38H5018	1	Elbow Fitting	-
33	38H5029	1	Tee Fitting	-
34	38H5121	1	Adapter Fitting	-
35	38H5009	2	Adapter Fitting	-
36	38H1095	1	Elbow Fitting	-
37	38H5065	1	Tee Fitting	-
38	38H5107	1	Elbow Fitting	-
39	38H5076	1	Adapter Fitting	-
40	38H5031	1	Tee Fitting	-
41	H141510	2	Clamp	-
42	H112567	1	Plate	-
43	19M7979	1	Screw	M8 X 55
44	R313221	4	Half Clamp	-
45	R221777	3	Plate	-
46	34M7061	1	Spring Pin	8 X 20 mm
47	19M7806	2	Screw	M10 X 50
48	19M7807	3	Screw	M10 X 60
49	R307873	2	Half Clamp	-
50	R318378	2	Half Clamp	-
51	R221778	1	Plate	-
52	19M7811	1	Screw	M10 X 90
53	RE320761	1	Oil Line	ORDER RE330801
53	RE330801	1	Oil Line	(Port A on Manifold to Steering Valve)
54	RE320739	1	Oil Line	ORDER RE330799
54	RE330799	1	Oil Line	(Port B on Manifold to Steering Valve)
55	AL157838	1	Clamp	USE WITH RE310995
