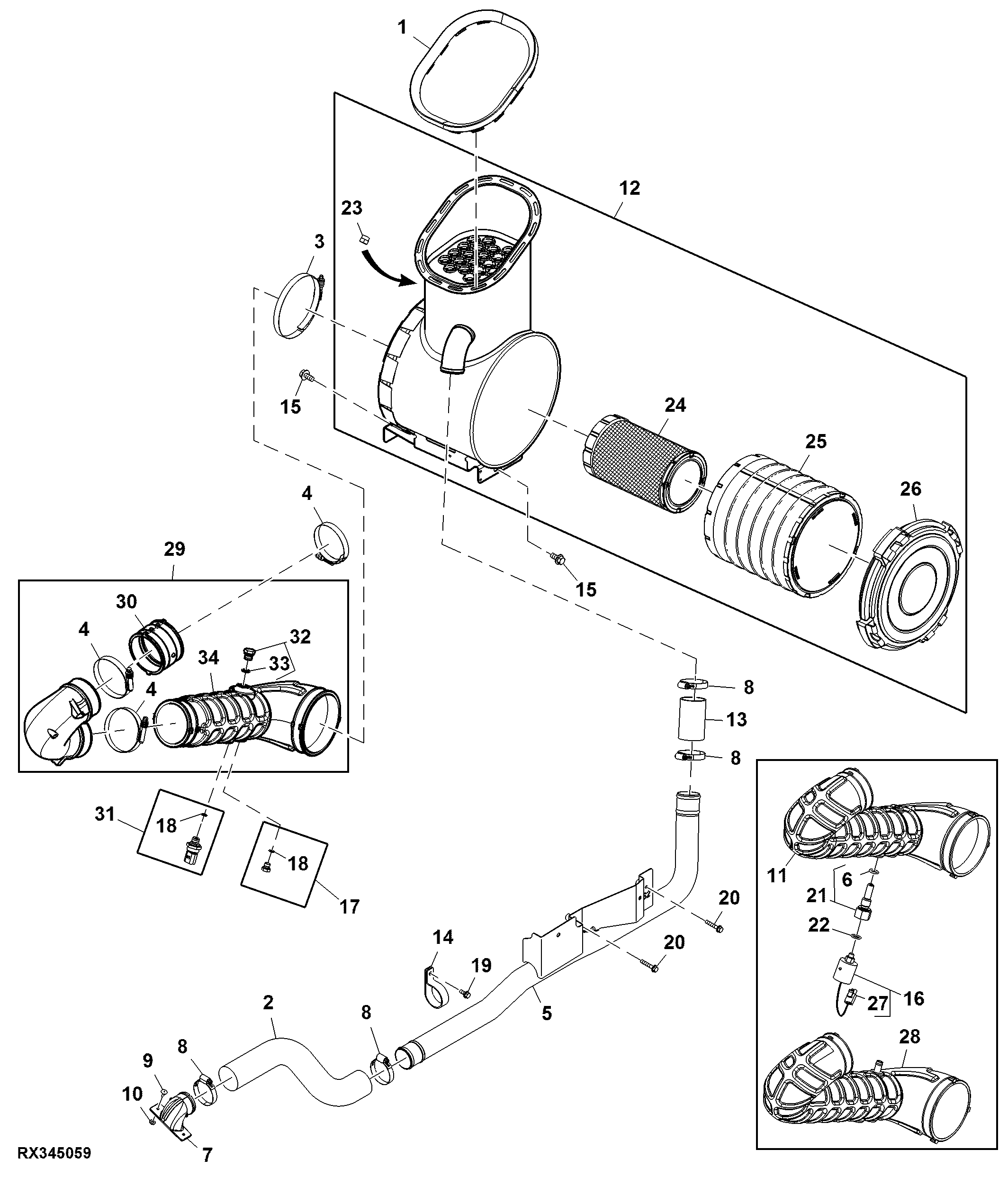

Air Intake, 9.0 L, T2 Engine (053101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R302456	1	Isolator	-
2	R305002	1	Hose	Front Aspirator ORDER R558849
2	R558849	1	Hose	Front Aspirator
3	RE66534	1	Clamp	-
4	RE52703	3	Hose Clamp	-
5	RE332101	1	Tube	Aspirator
6	51M7040	1	O-Ring	9.300 X 2.200 mm
7	R232652	1	Adapter	-
8	AL170672	4	Clamp	-
9	M136047	2	Rivet	-
10	24M7087	2	Washer	5.500 X 10 X 1 mm
11	RE556453	1	Air Intake	(W/O Air Brake) Turbocharger Inlet ORDER RE580684, ALSO ORDER AXE36480, SUB FOR RE241957
12	RE294034	1	Air Cleaner	-
13	R259319	1	Hose	Connect to Precleaner Outlet
14	R241967	1	Clamp	-
15	19M7788	3	Screw	M12 X 25
16	RE219835	1	Air Restriction Sensor	ORDER RE574537
16	RE574537	1	Air Restriction Sensor	-
17	RE46684	1	Fitting Plug	-
18	51M7041	2	O-Ring	11.300 X 2.200 mm
19	19M7868	1	Screw	M8 X 30
20	19M7800	2	Screw	M8 X 50
21	RE239083	1	Adapter Fitting	USE WITH RE556453 AND RE556454
21	R558673	1	Adapter Fitting	USE WITH RE580684
22	R77673	1	O-Ring	-
23	M122275	1	Fitting	-
24	RE587794	1	Air Filter	SUB FOR RE210103
25	RE587793	1	Air Filter	SUB FOR RE210102
26	RE572533	1	Cover	-
27	RE12363	1	Electrical Connector Assy	USE WITH (2) 57M7303_Pins, (2) R78063_Seals
28	RE556454	1	Air Intake	(W/ Air Brake) Turbocharger Inlet ORDER RE580684, ALSO ORDER AXE36480; SUB FOR RE241958
29	RE580684	1	Air Intake	-
30	R557206	1	Air Intake	-
31	AXE36480	1	Pressure Sensor	USE WITH RE580684
32	RE46685	1	Fitting Plug	-
33	51M7043	1	O-Ring	15.300 X 2.200 mm
34	RE580371	1	Air Intake	-

Air Intake, 9.0 L, T2 Engine (053101 - )
