Открытый узел

25 Engine 6090RW413-RE540117-RE568248-ETN113999

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

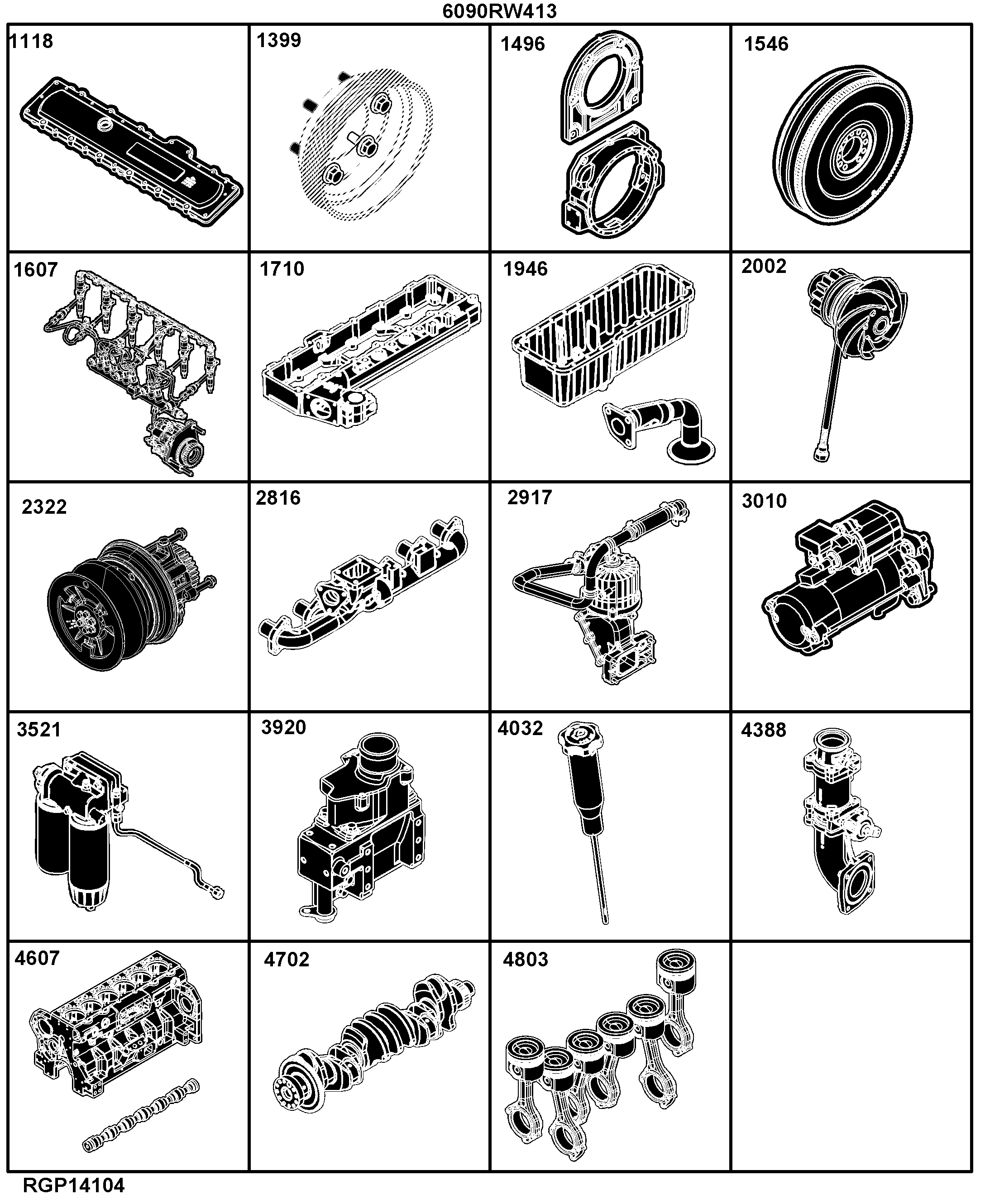

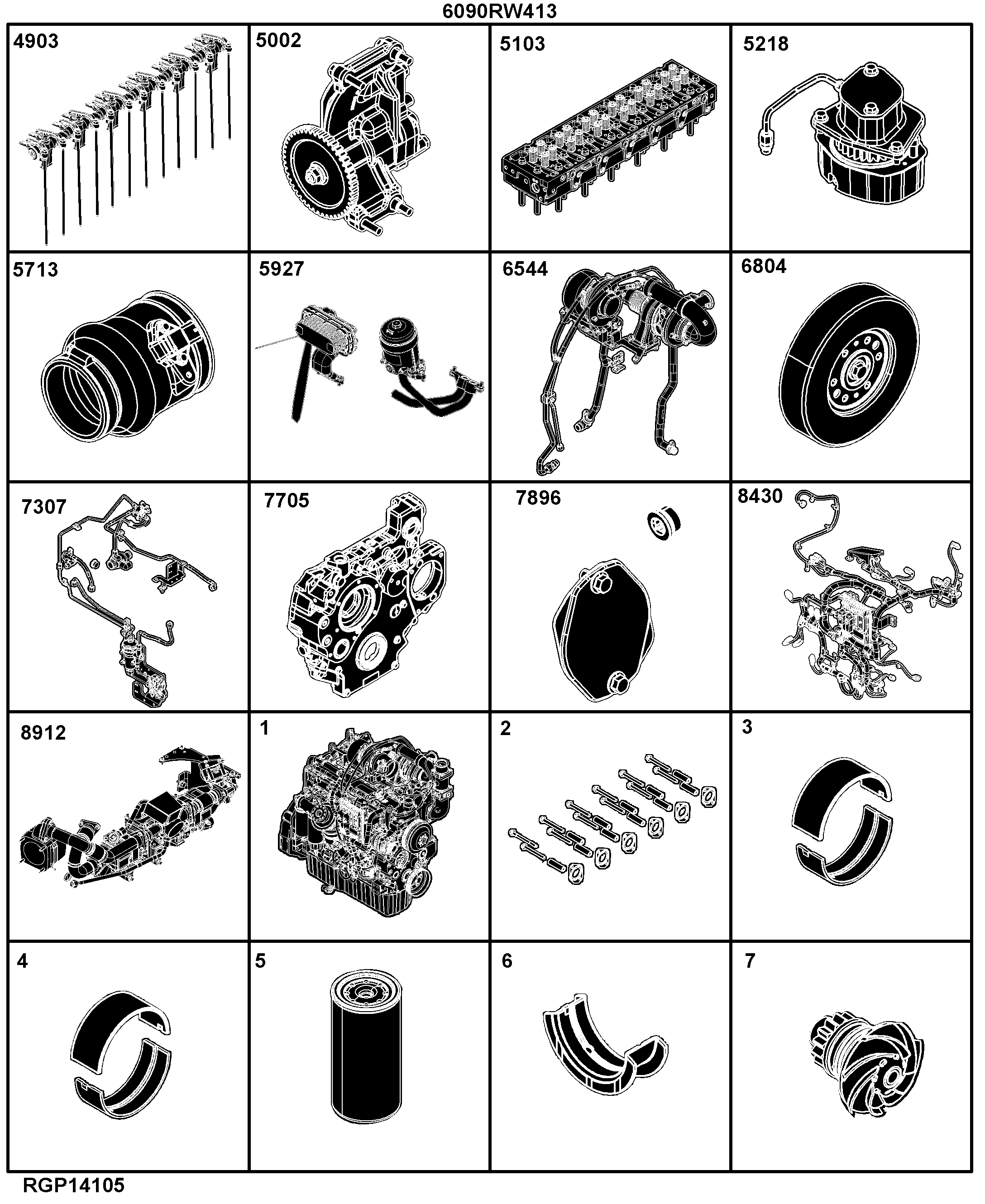

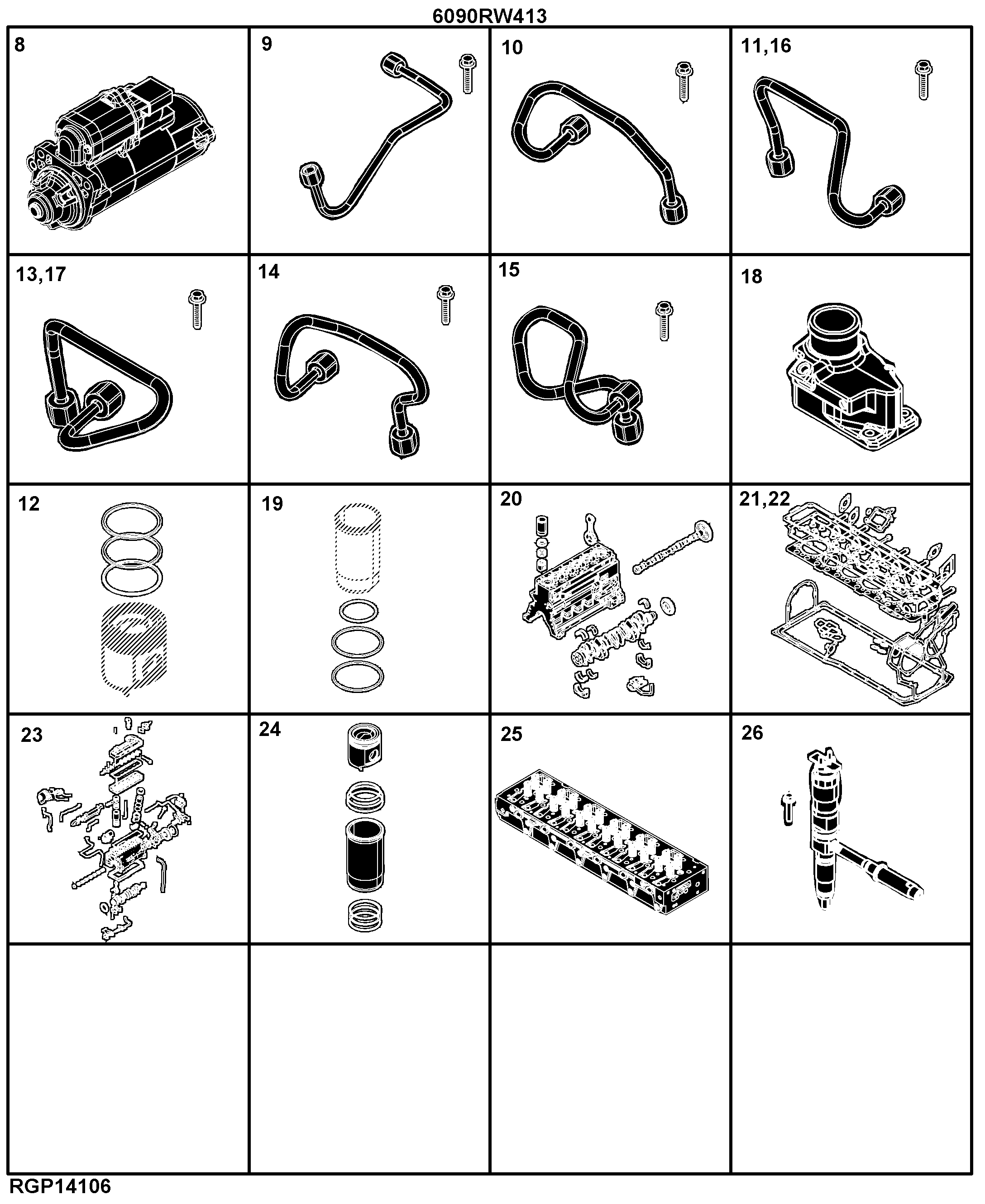

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Overhaul Kit (3/3)	-
-	-	1	9901 Kit, High Pressure Fuel Line	-
-	-	1	9901 Kit, High Pressure Fuel Line	-
-	-	1	9901 Kit, High Pressure Fuel Line	-
-	-	1	9901 Kit, High Pressure Fuel Line	-
-	-	1	9901 Kit, Cylinder Head	-
-	-	1	9901 Gasket Kit, Cylinder Head Removal	-
-	-	1	9901 Fuel Filter Element Service Kit	-
-	-	1	9901 Exhaust Manifold Removal Kit	-
-	-	1	9901 Kit, High Pressure Fuel Line	-
-	-	1	9901 Engine Overhaul Kit (2/3)	-
-	-	1	9901 Engine Overhaul Kit (1/3)	-
-	-	1	9901 Engine Gasket Kit (2/2)	-
-	-	1	9901 Engine Gasket Kit (1/2)	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	8912 Exhaust Gas Recirculation	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	9901 Thermostat Housing	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Short Block Hardware Kit (2/2)	-
-	-	1	9901 Short Block Hardware Kit (1/2)	-
-	-	1	9901 Short Block Assembly	-
-	-	1	9901 Service Kit, Injector Nozzle	-
-	-	1	9901 Service Kit, Cylinder Head Bolts	-
-	-	1	8430 Engine Wiring Harness	-
-	-	1	9901 Repair Kit	-
-	-	1	9901 Repair Kit	-
-	-	1	9901 Piston Ring Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 O Ring Kit, Cylinder Liner	-
-	-	1	9901 Main Bearing Kit	-
-	-	1	9901 Kit, High Pressure Fuel Line	-
-	-	1	2002 Water Pump	-
-	-	1	3920 Thermostat Housing	-
-	-	1	3521 Fuel Filter	-
-	-	1	3010 Starting Motor	-
-	-	1	2917 Ventilating System	-
-	-	1	2816 Exhaust Manifold	-
-	-	1	2322 Fan Drive (3/3)	-
-	-	1	2322 Fan Drive (2/3)	-
-	-	1	2322 Fan Drive (1/3)	-
-	-	1	4032 Engine Oil Dipstick	-
-	-	1	1946 Oil Pan	-
-	-	1	1710 Air Intake Manifold	-
-	-	1	1607 Fuel Injection System	-
-	-	1	1546 Flywheel	-
-	-	1	1496 Flywheel Housing	-
-	-	1	1399 Crankshaft Pulley Hardware ( - 028739)	-
-	-	1	1398 Crankshaft Pulley Hardware (028740 - )	-
-	-	1	1133 Valve Cover (041190 - )	-
-	-	1	5218 Auxiliary Drive	-
-	-	1	7896 Air Compressor Mounting Plug	-
-	-	1	7705 Timing Gear Cover	-
-	-	1	7307 Fuel Dosing System	-
-	-	1	6804 Crankshaft Damper	-
-	-	1	6544 Turbocharger	-
-	-	1	6106 Exhaust Filter / Diesel Particulate Filter	-
-	-	1	5927 Engine Oil Cooler and Oil Filter	-
-	-	1	5713 Water Pump Inlet	-
-	-	1	1118 Rocker Arm Cover ( - 041189)	-
-	-	1	5103 Cylinder Head with Valves	-
-	-	1	5002 Engine Oil Pump	-
-	-	1	4903 Valve Actuating Mechanism	-
-	-	1	4803 Connecting Rods and Pistons	-
-	-	1	4702 Crankshaft and Bearings	-
-	-	1	4607 Cylinder Block	-
-	-	1	4388 Air Intake	-

25 Engine 6090RW413-RE540117-RE568248-ETN113999

Нет текстового описания
