HVAC Lines, 1500 MFWD, Group 47/48 Tires, FT4 Engine (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R307600	1	Bracket	-
2	19M7865	3	Screw	M8 X 16
3	14M7298	10	Flange Nut	M8
4	RE327987	1	Oil Line	-
5	T13814	1	Clamp	-
6	T77613	1	O-Ring	-
7	RE567746	1	Oil Line	Fan Drive Supply
8	RE574286	1	Line	SUB FOR RE567749
9	RE574285	1	Line	Fan Drive Pressure SUB FOR RE567851
10	R558746	1	Fuel Line	Return
11	R560532	2	Half Clamp	-
12	AH107416	2	Clip	-
13	RE584839	1	Refrigerant Hose	-
14	L156556	5	Clamp	-
15	19M7798	2	Screw	M8 X 40
16	19M7913	1	Screw	M8 X 90
17	R183410	3	O-Ring	-
18	19M7866	1	Screw	M8 X 20
19	19M7868	2	Screw	M8 X 30
20	R552146	2	Block Clamp	SUB FOR R307165
21	R307289	4	Channel	-
22	R552147	2	Block Clamp	SUB FOR R307075
23	R187365	4	Nut	-
24	H108291	2	Clamp	-
25	19M7897	1	Screw	M8 X 35
26	R317479	1	Bracket	-
27	R319544	1	Channel	-
28	R319543	1	Block Clamp	-
29	19M8319	1	Screw	M8 X 50
30	H128515	2	Clamp	-
31	R202160	4	Clamp	-
32	19M8039	3	Screw	M8 X 80
33	19M9839	1	Screw	M8 X 35
34	R558747	1	Hose	-
35	RE562560	1	Refrigerant Hose	A/C Condenser USE WITH RE561353
36	R544540	3	Clamp	-
37	E53830	1	Clamp	W/ Ether Aid
37	R544540	1	Clamp	W/O Ether Aid
38	RE584840	1	Hose	-
39	M84309	1	Nut	-
40	RE574275	1	Hydraulic Hose	Fan Drive Valve Supply ORDER RE567746
41	RE574274	1	Oil Line	Fan Drive Valve Supply USE WITH RE574275
42	RE576656	1	Oil Line	Fan Drive Supply
43	RE258807	1	Tie Band	-
44	RE586439	1	Refrigerant Hose	USE WITH RE584140
45	AT318164	1	Valve	High Side
46	AT318166	1	Cap	-

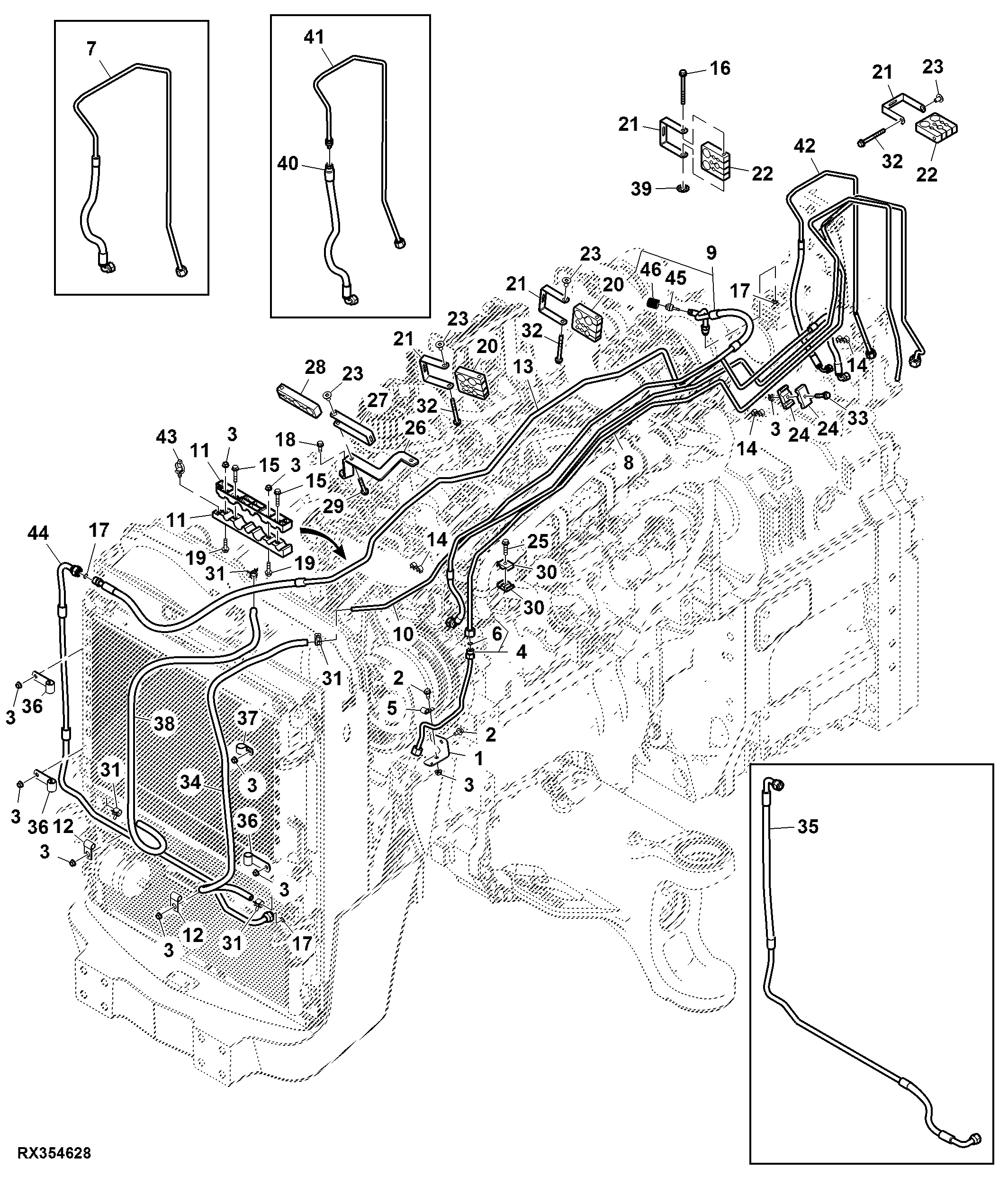

HVAC Lines, 1500 MFWD, Group 47/48 Tires, FT4 Engine (2/2)
