Front Line Bundle W/O Ether Aid, Group 47/48 Tires, 1500 MFWD, T3 Engine (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE561618	1	Refrigerant Hose	-
2	RE567675	1	Line	ORDER RE582473
2	RE582473	1	Line	-
3	RE575051	1	Line	ORDER RE588254, ALSO ORDER R560925
3	RE588254	1	Line	-
4	RE252625	1	Hose Fitting	-
5	H111730	2	Clamp	-
6	R183411	1	O-Ring	-
7	R46414	2	Clamp	-
8	H112567	1	Plate	-
9	19M7803	1	Screw	M8 X 70
10	R544348	2	Hose	-
10	R560925	1	Hose	USE WITH RE588254
11	R552258	1	Hose	-
12	R183409	4	O-Ring	-
13	19M7866	6	Screw	M8 X 20
14	14M7396	1	Lock Nut	M8
15	RE562559	1	Refrigerant Hose	USE WITH RE561353
16	RE562560	1	Refrigerant Hose	USE WITH RE561353
17	R183410	2	O-Ring	-
18	T75197	1	Clamp	USE WITH RE562559
19	14M7298	3	Flange Nut	M8
20	H128515	2	Clamp	-
21	H121163	1	Strap	-
22	RE309592	1	Oil Tube	-
23	38H5100	1	Union Fitting	-
24	T77613	3	O-Ring	-
25	38H5091	1	Nut	11/16"
26	R538829	1	Hose	-
26	R558750	1	Hose	USE WITH R563762
27	RE575050	1	Support	-
28	RE312401	1	Oil Line	-
29	T13814	1	Clamp	-
30	R244801	1	Spacer	-
31	R114103	1	Clamp	-
32	19M7897	1	Screw	M8 X 35
33	R34557	1	Clamp	-
34	AH107416	2	Clip	-
35	T184924	6	Hose Clamp	-
36	R191781	2	Hose Clamp	-
37	E53830	1	Clamp	USE WITH RE567675
37	E53830	1	Clamp	USE WITH RE562560
37	T27523	1	Clamp	USE WITH RE582473
38	RE586441	1	Refrigerant Hose	USE WITH RE584140
39	RE586439	1	Refrigerant Hose	USE WITH RE584140
40	R560051	1	Clamp	-
41	R560052	1	Plate	-
42	AT318163	1	Valve	Low Side
43	AT318165	1	Cap	-
44	R163559	1	O-Ring	-

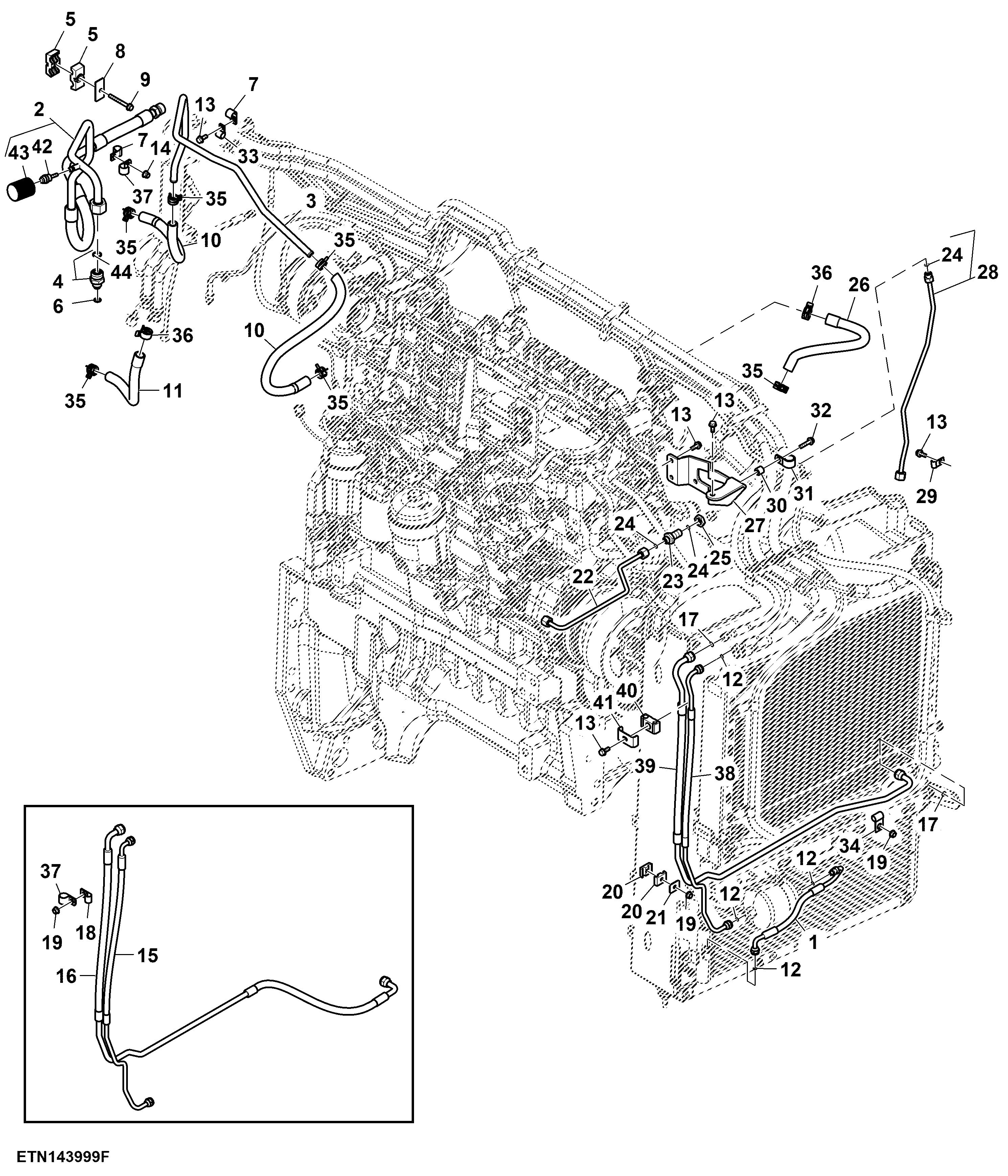

Front Line Bundle W/O Ether Aid, Group 47/48 Tires, 1500 MFWD, T3 Engine (2/2)
