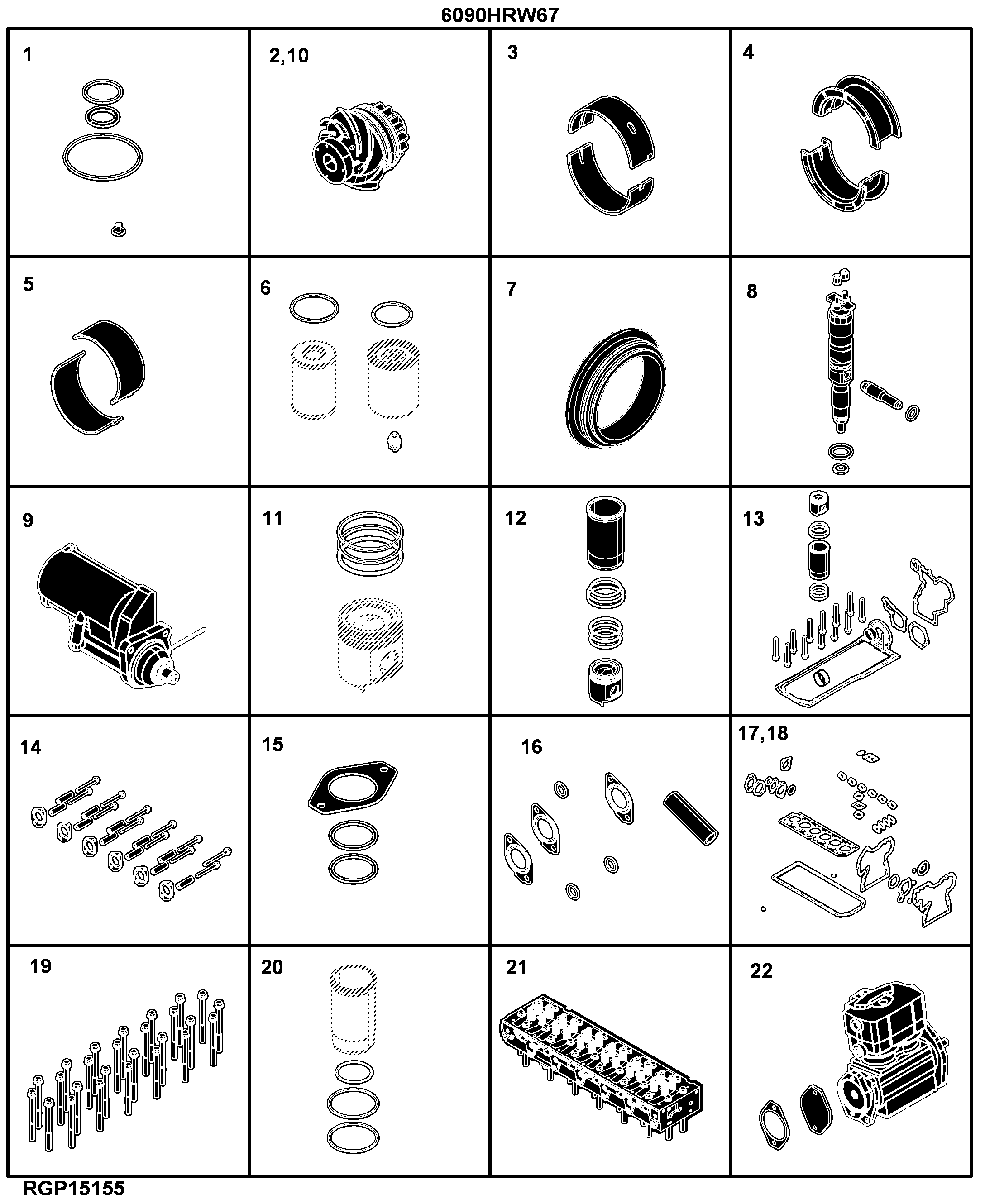

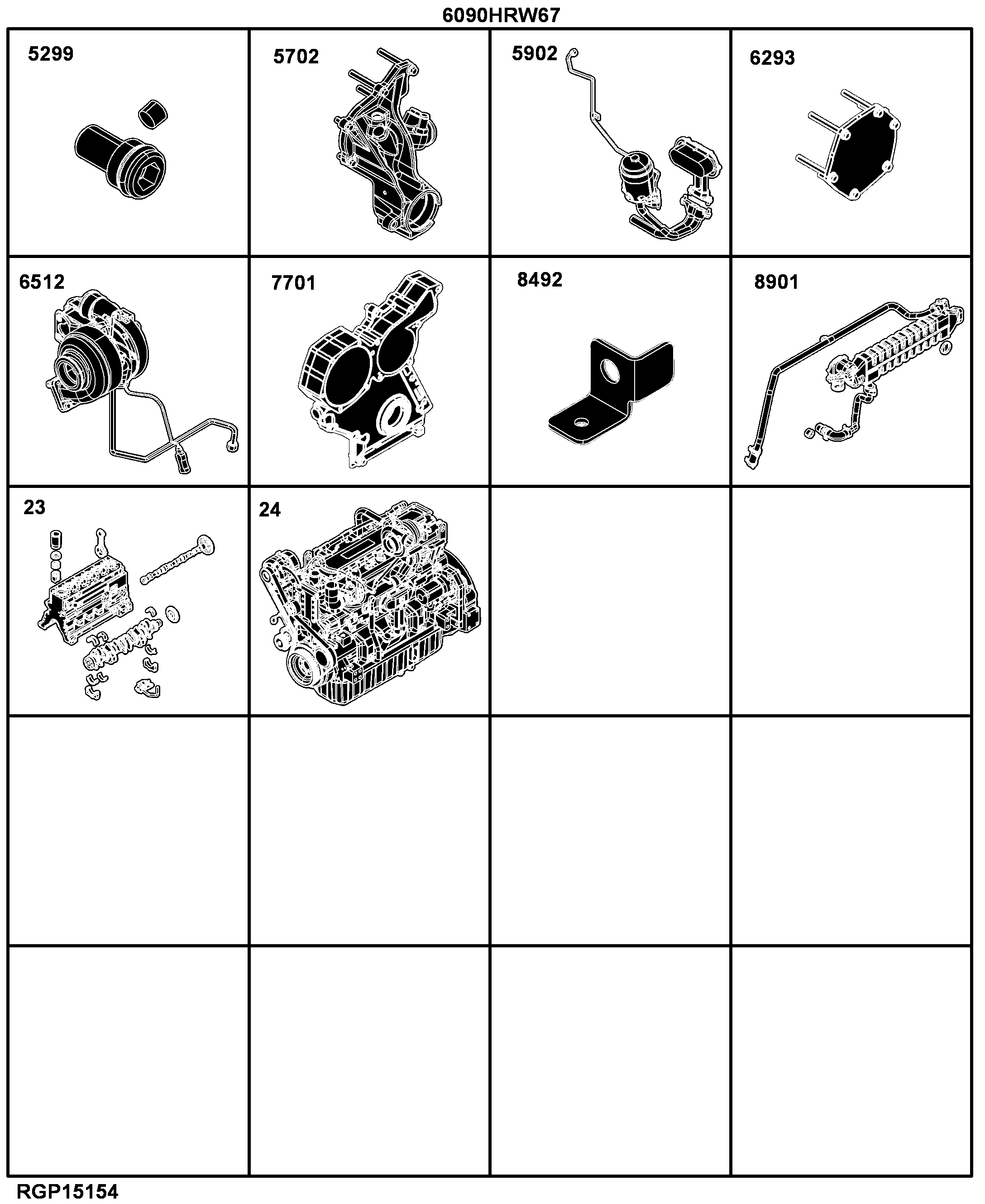

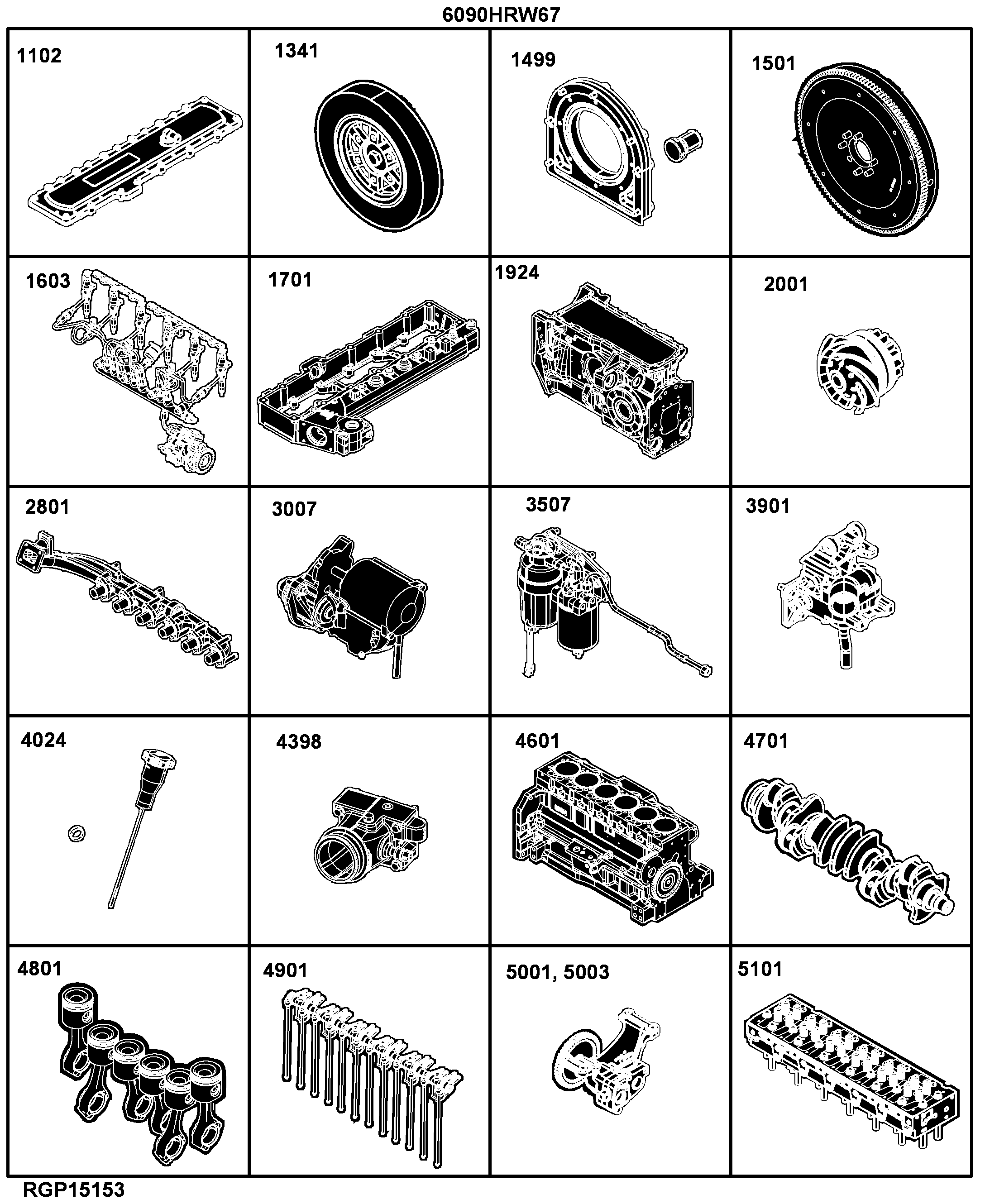

21 Engine 6090HRW67, 6090HRW73-RE539258-RE539264

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Kit, Air Compressor	-
-	-	1	8901 Exhaust Gas Recirculation, EGR	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Cylinder Head Removal Gasket Kit	-
-	-	1	9901 Cylinder Liner Packing	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Engine Short Block Assembly	-
-	-	1	9901 Exhaust Manifold Removal Kit	-
-	-	1	9901 Fuel Filter Element Service Kit	-
-	-	1	9901 Fuel Injector Wiring Harness Seal	-
-	-	1	9901 Gasket Kit, EGR Valve	-
-	-	1	8492 Engine Wiring Harness Brackets	-
-	-	1	9901 Kit, Cylinder Head	-
-	-	1	9901 Kit, Piston Ring	-
-	-	1	9901 Main Bearing Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Primary Fuel Filter Seal Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Service Kit, Cylinder Head Bolts	-
-	-	1	9901 Service Kit, EGR	-
-	-	1	9901 Service Kit, Injector Nozzle	-
-	-	1	9901 Starter Motor Kit	-
-	-	1	9901 Water Pump Repair Kit	-
-	-	1	9901 Water Pump, Replacement	-
-	-	1	4601 Cylinder Block	-
-	-	1	1341 Damper	-
-	-	1	1499 Flywheel Housing	-
-	-	1	1501 Flywheel	-
-	-	1	1603 Fuel Injection Pump	-
-	-	1	1701 Air Intake Manifold	-
-	-	1	1924 Oil Pan	-
-	-	1	2001 Water Pump	-
-	-	1	2801 Exhaust Manifold	-
-	-	1	3007 Starting Motor	-
-	-	1	3507 Fuel Filter	-
-	-	1	3901 Thermostat Housing, Thermostat and Cover	-
-	-	1	4024 Engine Oil Dipstick	-
-	-	1	4398 Air Intake	-
-	-	1	1102 Valve Cover	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5003 Engine Oil Pump	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	5299 Cylinder Block Fittings	-
-	-	1	5702 Water Pump Cover	-
-	-	1	5902 Engine Oil Cooler and Oil Filter	-
-	-	1	6293 Alternator Mounting	-
-	-	1	6512 Turbocharger	-
-	-	1	7701 Timing Gear Cover	-

21 Engine 6090HRW67, 6090HRW73-RE539258-RE539264

Нет текстового описания
