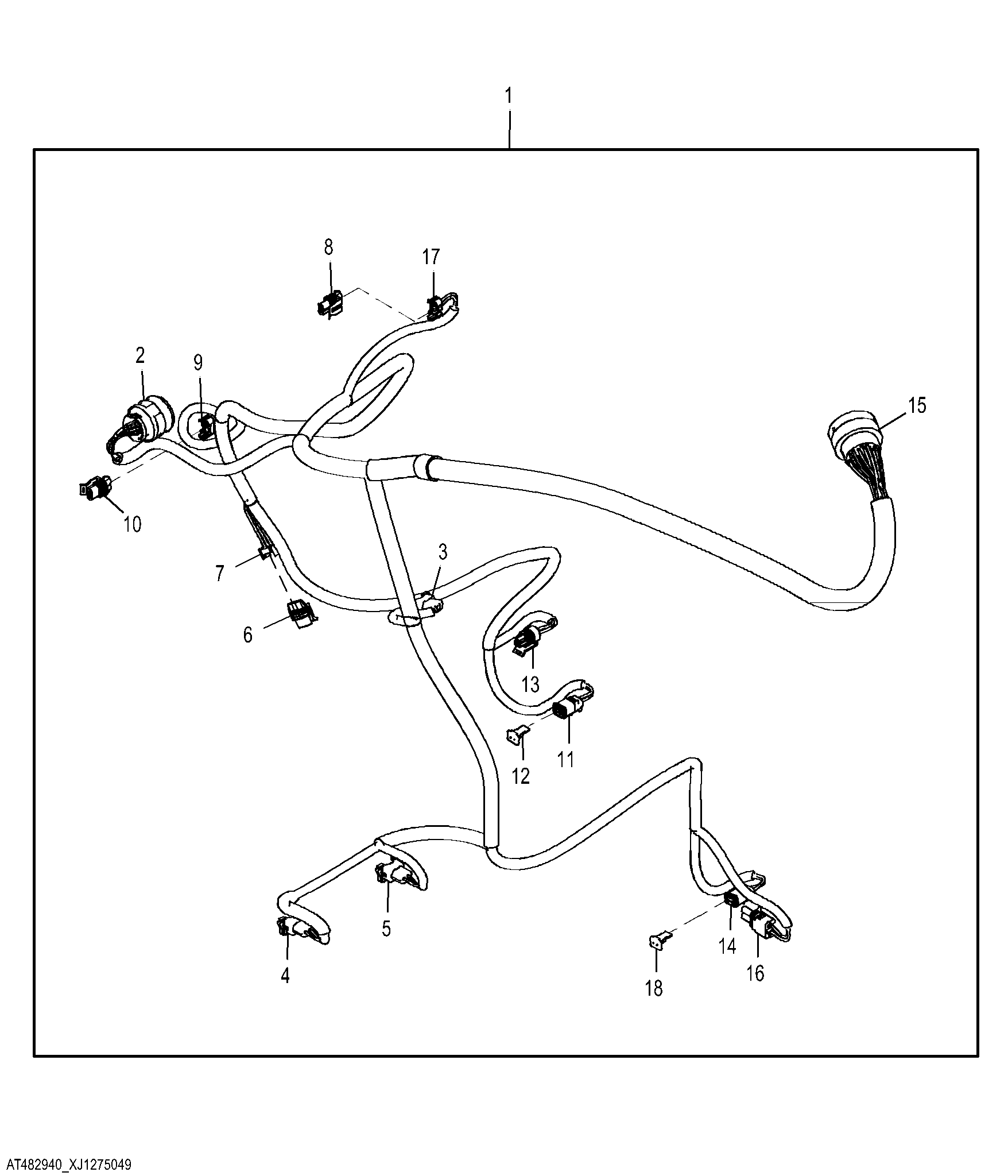

Transmission Wiring Harness and Connector

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT482940	1	Wiring Harness	Transmission Wiring Harness
2	57M7928	1	Elec. Connector Housing	B2, Transmission Clutch Control
2	57M7929	9	Elec. Connector Terminal	-
2	57M7931	9	Elec. Connector Terminal	-
2	57M11151	7	Elec. Connector Accessory	-
3	57M10436	1	Elec. Connector Housing	B28, Torque Converter Input Speed Sensor
3	57M8137	2	Elec. Connector Terminal	-
4	57M10436	1	Elec. Connector Housing	B29, Torque Converter Output Speed Sensor
4	57M8137	2	Elec. Connector Terminal	-
5	57M8137	2	Elec. Connector Terminal	-
5	57M10436	1	Elec. Connector Housing	B30, Internal Clutch Speed Sensor
6	57M7687	1	Elec. Connector Housing	B31, Transmission Output Shaft Speed Sensor
6	57M8571	3	Elec. Connector Terminal	-
6	57M7938	3	Elec. Connector Terminal	-
7	57M7290	1	Elec. Connector Accessory	-
8	57M7254	1	Elec. Connector Housing	Y27, Torque Converter Lockup Solenoid
8	57M10770	2	Elec. Connector Terminal	-
8	57M9883	2	Elec. Connector Cable Seal	-
9	57M9712	1	Elec. Connector Accessory	-
10	57M7254	1	Elec. Connector Housing	B20, Transmission Oil Filter Restriction Switch
10	57M7938	2	Elec. Connector Terminal	-
10	57M8571	2	Elec. Connector Terminal	-
11	57M8021	1	Electrical Connector Assy	Y11, Pilot Enable Solenoid
11	R78065	2	Elec. Connector Terminal	-
12	57M8022	1	Elec.Connect Locking Device	-
13	57M7796	1	Elec. Connector Housing	B36, Hydraulic Reservoir Pressure Sensor
13	57M10925	3	Elec. Connector Terminal	-
14	57M8021	1	Electrical Connector Assy	Y29, Park Brake Release Solenoid
14	R78065	2	Elec. Connector Terminal	-
15	57M7751	1	Elec. Connector Housing	X24B, Load Center, Transmission Inline
15	R78069	1	Elec. Connector Cavity Plug	-
15	57M7542	1	Elec. Connector Terminal	-
15	R78065	29	Elec. Connector Terminal	-
16	RE12363	1	Electrical Connector Assy	B34, Park Brake Pressure Switch
16	57M10924	2	Elec. Connector Terminal	-
16	57M9218	2	Elec. Connector Seal	-
17	57M8022	1	Elec.Connect Locking Device	-
18	57M9712	1	Elec. Connector Accessory	-

Transmission Wiring Harness and Connector
