Starter Jumper Wiring Harness and Connectors

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT460564	1	Wiring Harness	-
2	57M11063	1	Elec. Connector Terminal	G4-(B+), Alternator B Positive
3	57M11064	1	Elec. Connector Accessory	-
4	57M8736	1	Elec. Connector Accessory	-
5	57M9760	1	Elec. Connector Housing	X5041A, Wh Starter Alternator to Engine Frame
5	57M7541	3	Elec. Connector Terminal	-
5	R78066	4	Elec. Connector Terminal	-
5	57M9814	1	Elec. Connector Cavity Plug	-
6	57M7559	1	Elec. Connector Terminal	G4-(D+), Alternator D Positive
7	57M9726	1	Elec. Connector Housing	Y16, Air Conditioner Compressor Clutch
7	R78065	2	Elec. Connector Terminal	-
8	R78053	1	Electrical Connector Assy	B19, Engine Air Filter Restriction
8	57M7251	2	Elec. Connector Terminal	-
8	57M9218	2	Elec. Connector Seal	-
9	57M11483	1	Elec. Connector Housing	V12, Air Conditioner Compressor Clutch Diode
9	57M10687	1	Elec. Connector Terminal	-
9	57M10690	1	Elec. Connector Terminal	-
10	AT387346	1	Resistor	-
11	57M7761	1	Elec. Connector Housing	X80A, Engine Frame to Starter Excitation Inline
11	57M7613	1	Elec. Connector Terminal	-
12	57M10374	1	Elec. Connector Terminal	M1-(50), Starter Excitation
13	57M9952	1	Elec. Connector Terminal	M1-(G)_2, Starter Ground
14	57M11060	1	Elec. Connector Terminal	M1-(G)_1, Starter Ground
15	57M11060	1	Elec. Connector Terminal	M1-(30), Starter Battery Power
16	57M11478	1	Elec. Connector Terminal	G4-(GND), Alternator Ground
17	57M10942	1	Diode	V1, Starter Coil Suppression 5-AMP Diode
18	AT103399	1	Diode	-
19	R44302	1	Tie Band	-
20	R44302	1	Tie Band	-

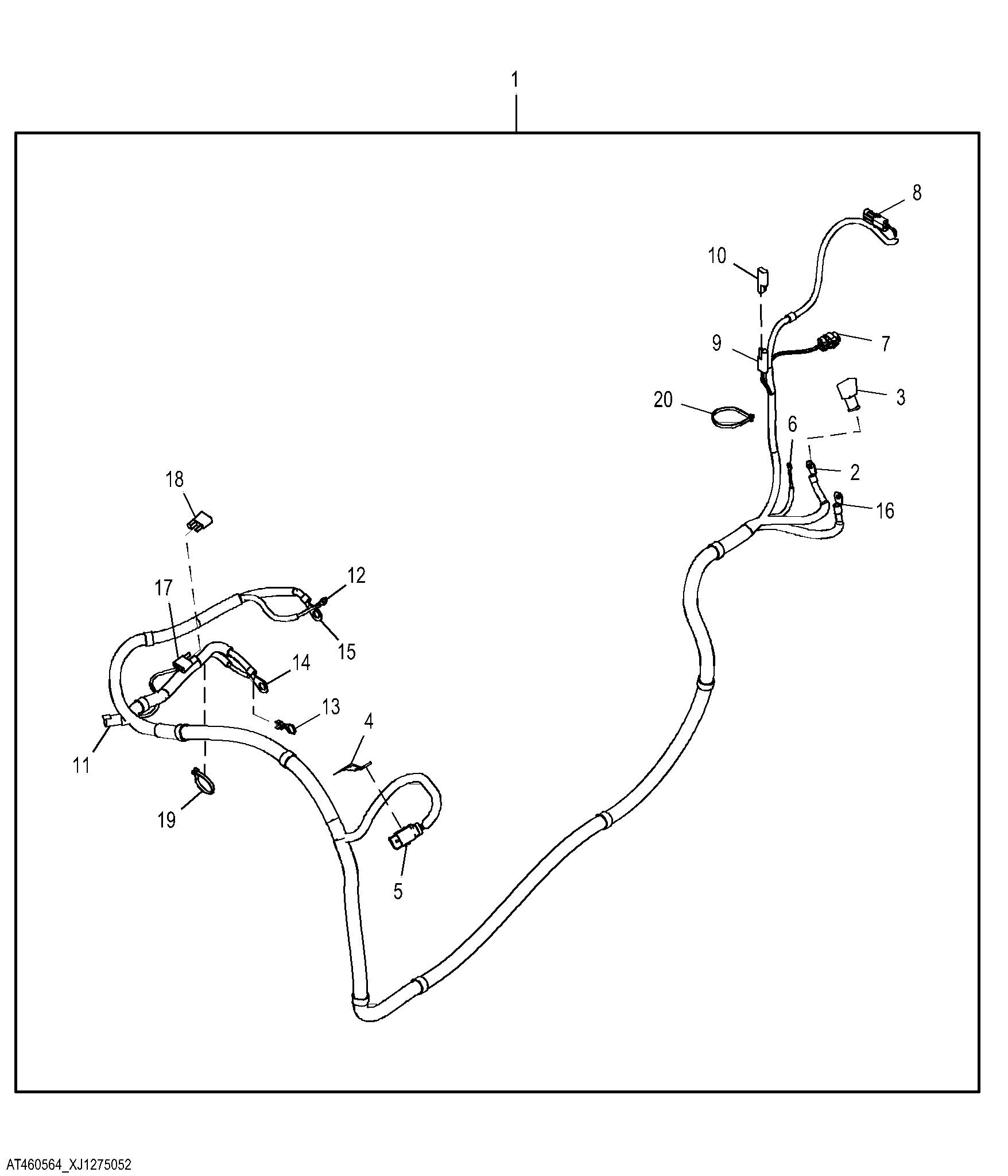

Starter Jumper Wiring Harness and Connectors
