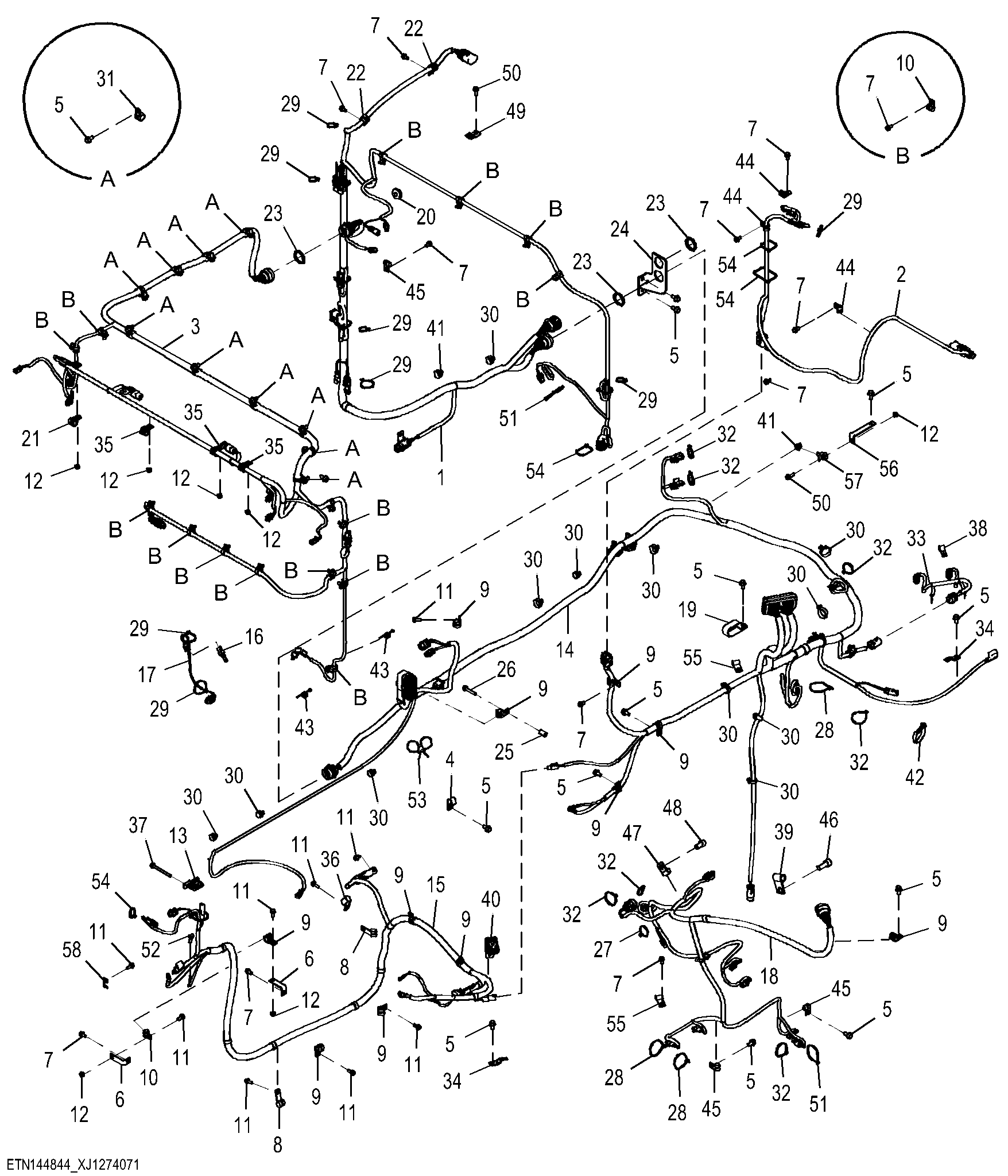

Chassis Main Wiring Harness and Hardware

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT460548	1	Wiring Harness	Components on Seperate Page Baffle Wiring Harness
2	AT469174	1	Wiring Harness	Components on Seperate Page Secondary Steering Wiring Harness
3	AT469177	1	Chassis Wiring Harness	Components on Seperate Page Rear Frame Wiring Harness
4	T38377	1	Clamp	NA, NOT USED THIS APPL
5	19M9844	33	Screw	M10 X 20
6	T151959	2	Angle	-
7	19M9405	20	Screw	M8 X 16
8	R343208	4	Clamp	-
9	T74416	11	Clamp	-
10	T75276	18	Clamp	-
11	19M9836	9	Screw	M8 X 20
12	14M7649	7	Flange Nut	M8
13	T389880	1	Clamp	-
14	AT515255	1	Wiring Harness	Components on Seperate Page Engine Frame Wiring Harness, SUB FOR AT484431
15	AT460564	1	Wiring Harness	Components on Seperate Page Starter Jumper Wiring Harness
16	RE525016	1	Thermocouple	Air Temperature Sensor
17	AT460566	1	Wiring Harness	Components on Seperate Page Jumper Air Instake Sensor Wiring Harness
18	AT482940	1	Wiring Harness	Components on Seperate Page Transmission Wiring Harness
19	T185154	1	Clamp	-
20	R74362	1	Grommet	-
21	T76252	1	Clamp	-
22	T269641	2	Clamp	-
23	57M8035	3	Nut	-
24	T377717	1	Bracket	-
25	T281881	1	Bushing	-
26	19M7800	1	Screw	M8 X 50
27	R44302	1	Tie Band	-
28	R44302	4	Tie Band	-
29	R44302	15	Tie Band	-
30	H224073	28	Tie Band	-
31	T78787	10	Clamp	-
32	R44302	14	Tie Band	-
33	AT465000	1	Wiring Harness	Components on Seperate Page Axle Temperature Sensor Wiring Harness
34	57M8736	2	Elec. Connector Accessory	-
35	T74416	4	Clamp	-
36	T70659	1	Clamp	-
37	19M9843	1	Screw	M8 X 90
38	57M13293	1	Clamp	-
39	T59940	1	Clip	-
40	T389878	1	Clamp	NA, NOT USED THIS APPL
41	H224073	2	Tie Band	-
42	H224073	1	Tie Band	-
43	AH225363	2	Clip	-
44	T74412	3	Clamp	-
45	T78974	3	Clamp	-
46	19M10067	1	Socket Head Screw	M16 X 40
47	AA31281	1	Clamp	-
48	19M9201	1	Screw	M14 X 25
49	57M10650	1	Clip Kit	-
50	19M9837	2	Screw	M8 X 25
51	H77698	3	Tie Band	-
52	T103917	1	Boot	-
53	T252445	1	Clamp	-
54	R44302	6	Tie Band	-
55	T185683	2	Clip	-
56	T341633	1	Angle	-
57	N380408	1	Clamp	-
58	57M10310	1	Elec. Connector Accessory	ORDER 57M12934
58	57M12934	1	Elec. Connector Accessory	-

Chassis Main Wiring Harness and Hardware
