824K Series II Loader (PIN: 1DW824K_ _ _F664579- )(Engine 6135HDW11)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

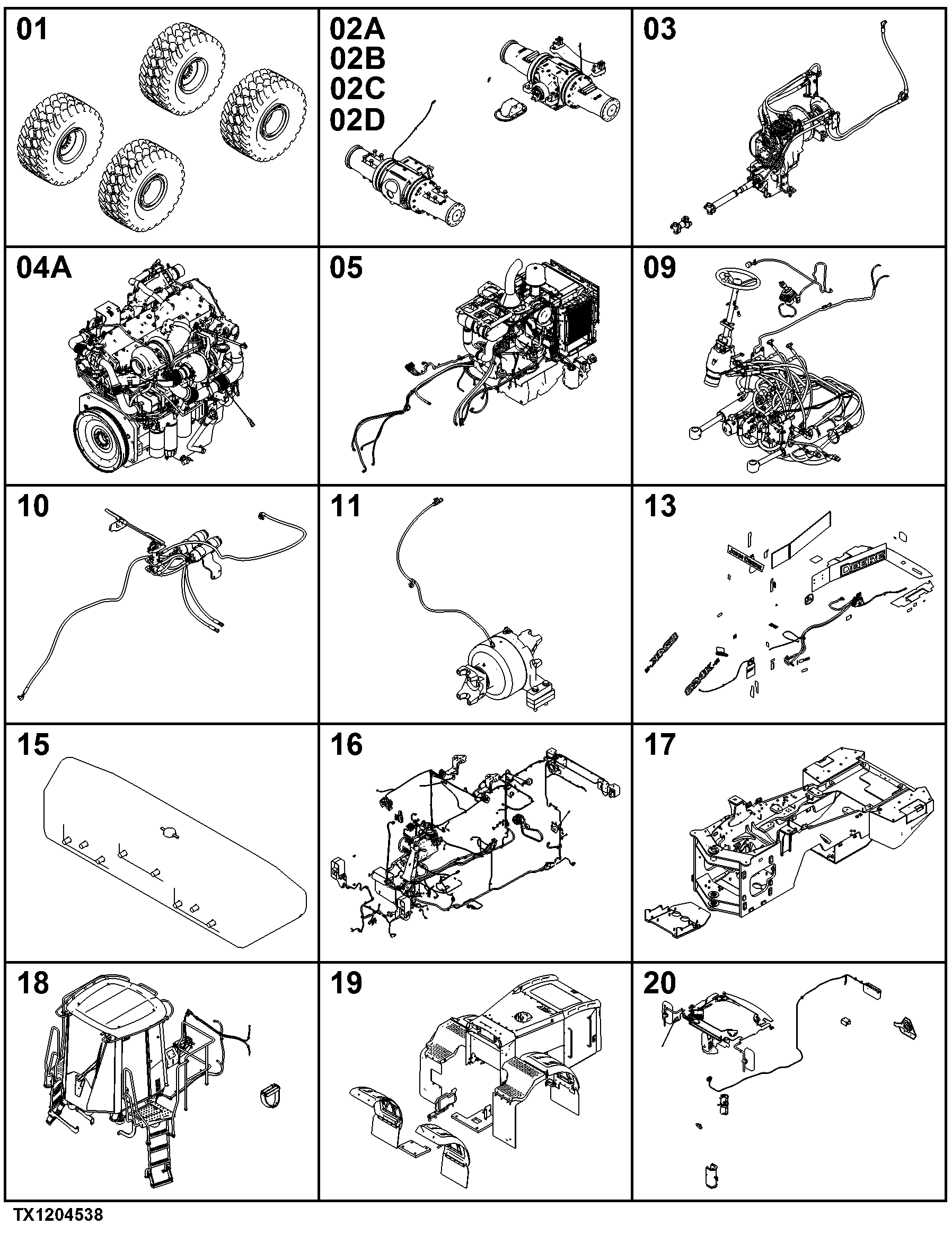

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	02B Front Axle with Differential Lock-1600 Series TeamMate™ V YZ19877	-
-	-	1	02C Rear Axle with Standard Differential - 1600 Series TeamMate™ V YZ19878	-
-	-	1	02D Rear Axle with Differential Lock - 1600 Series TeamMate™ V YZ19879	-
-	-	1	04A Engine – Misc. Engine / Complete Engine	-
-	-	1	04B Engine 6135HDW11-RE552911	-
-	-	1	11 Parking Brakes	-

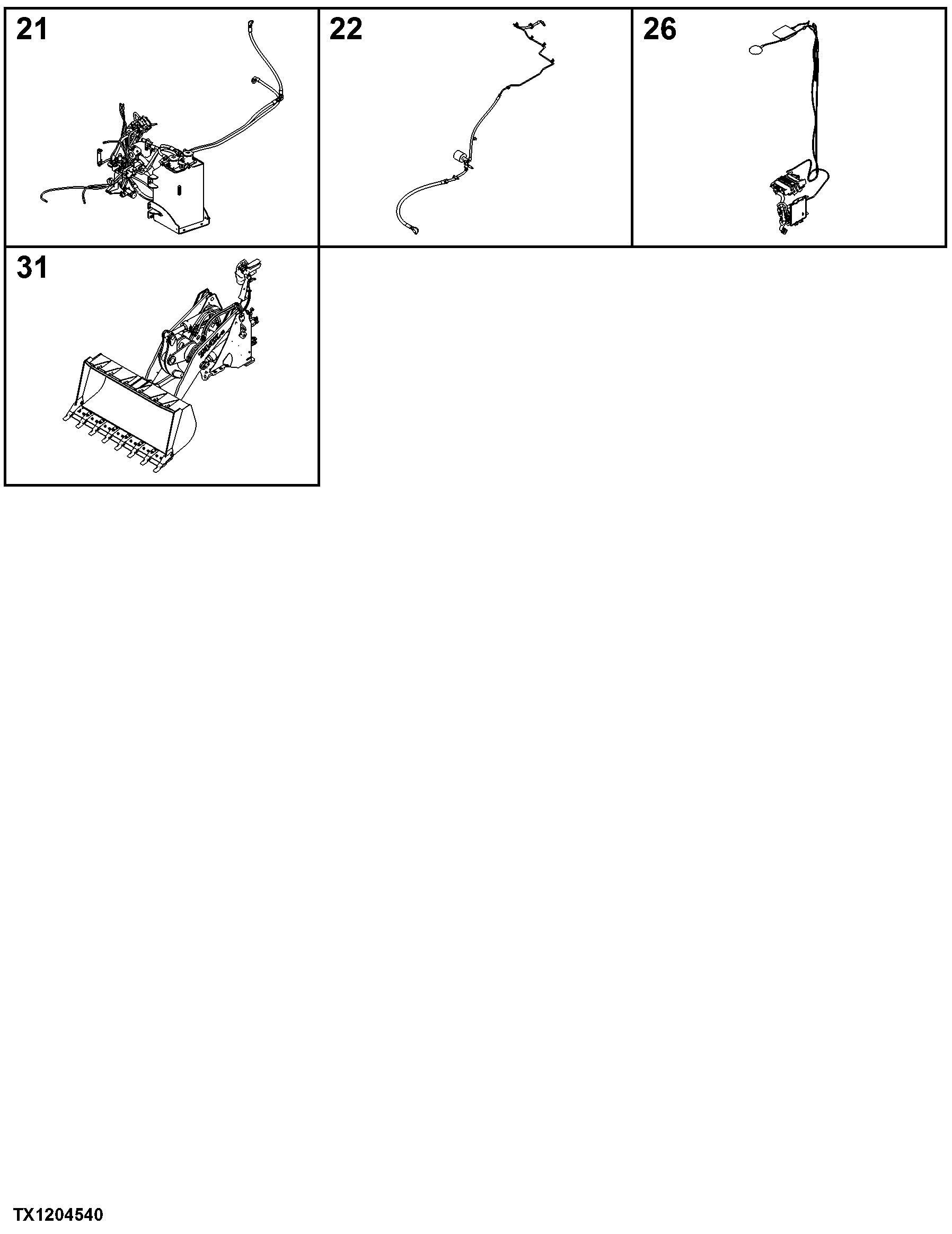

-	-	1	31 Loader	-
-	-	1	26 Global Vehicle Communication	-

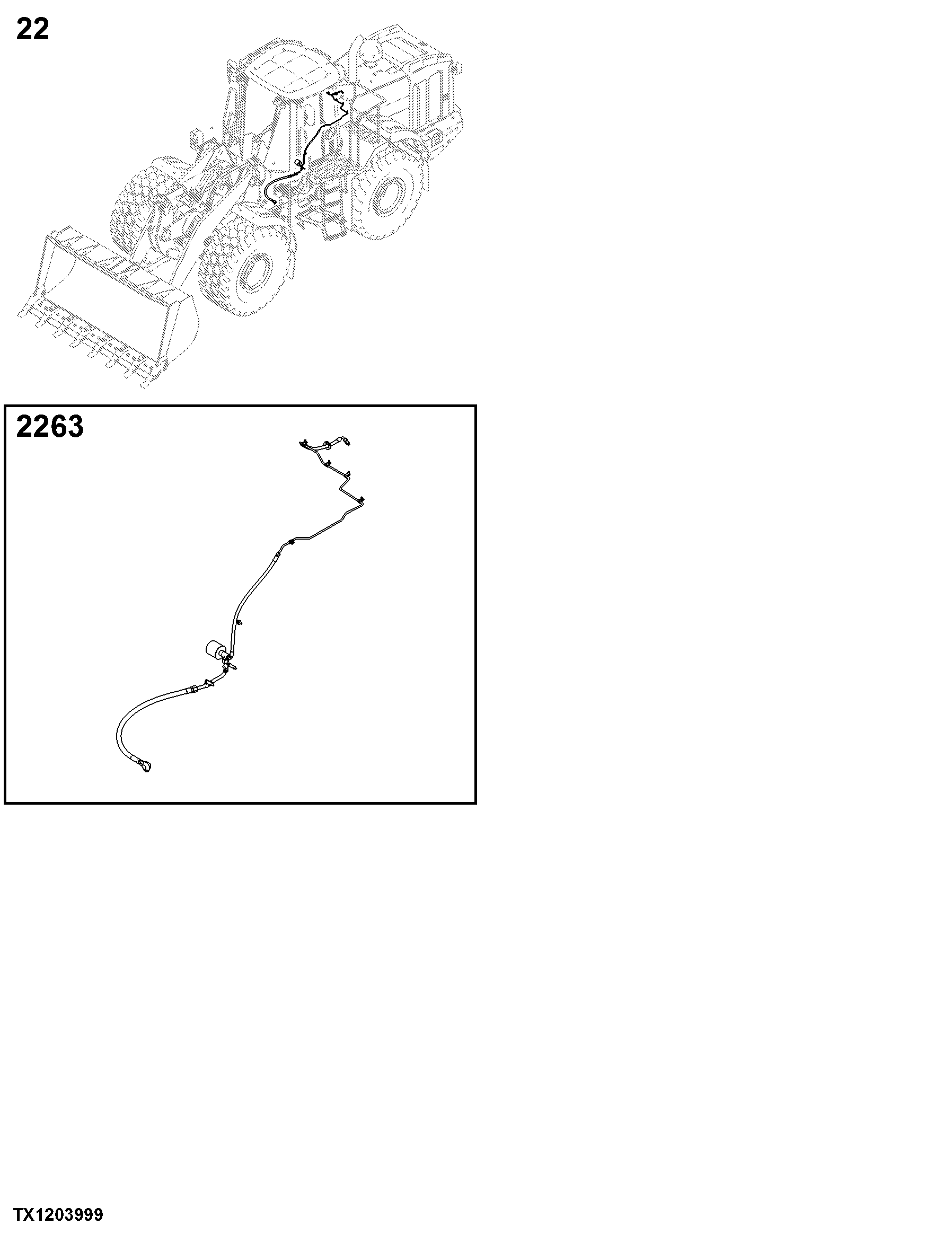

-	-	1	22 Vehicle Pneumatic Systems	-

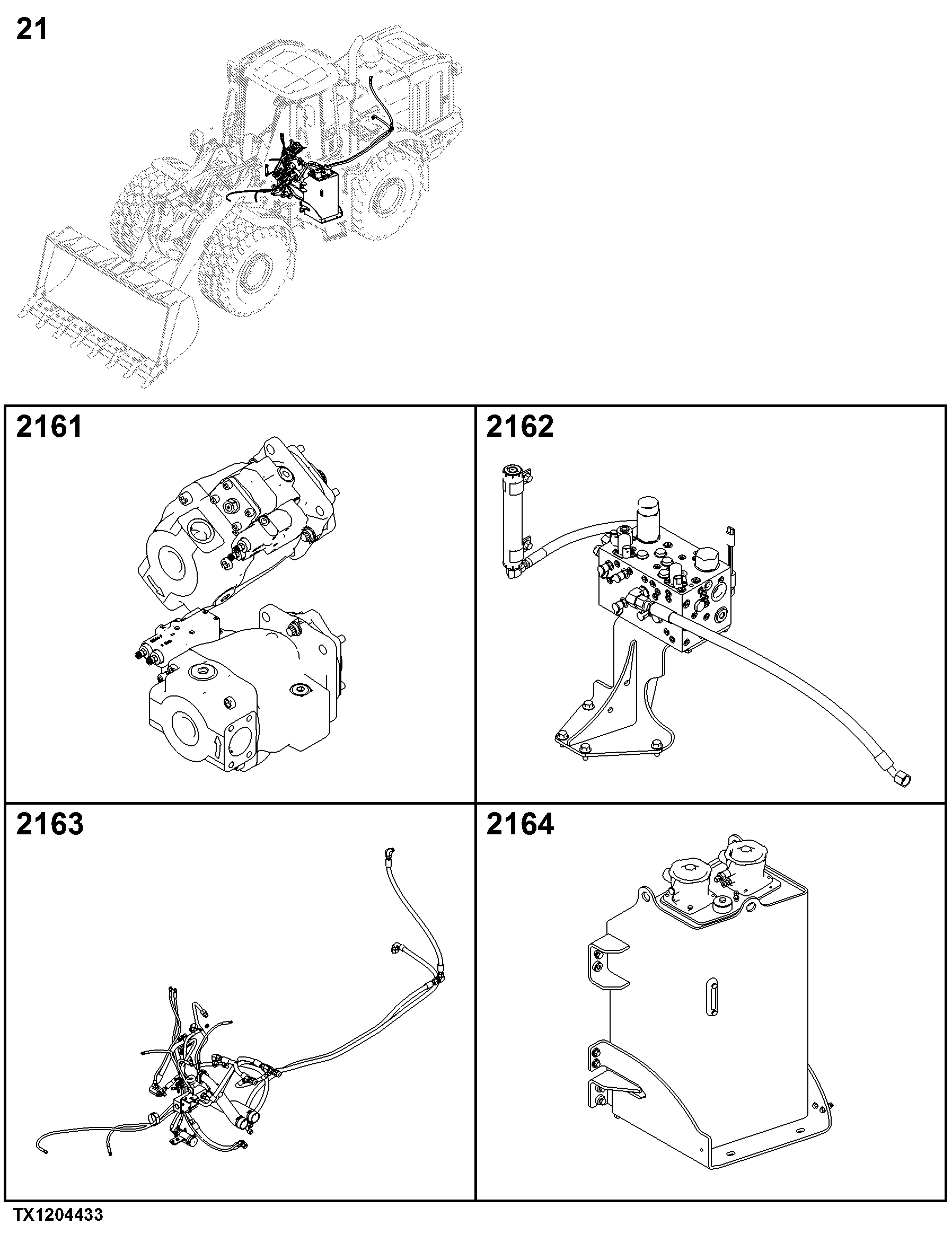

-	-	1	21 Vehicle Main Hydraulic System	-

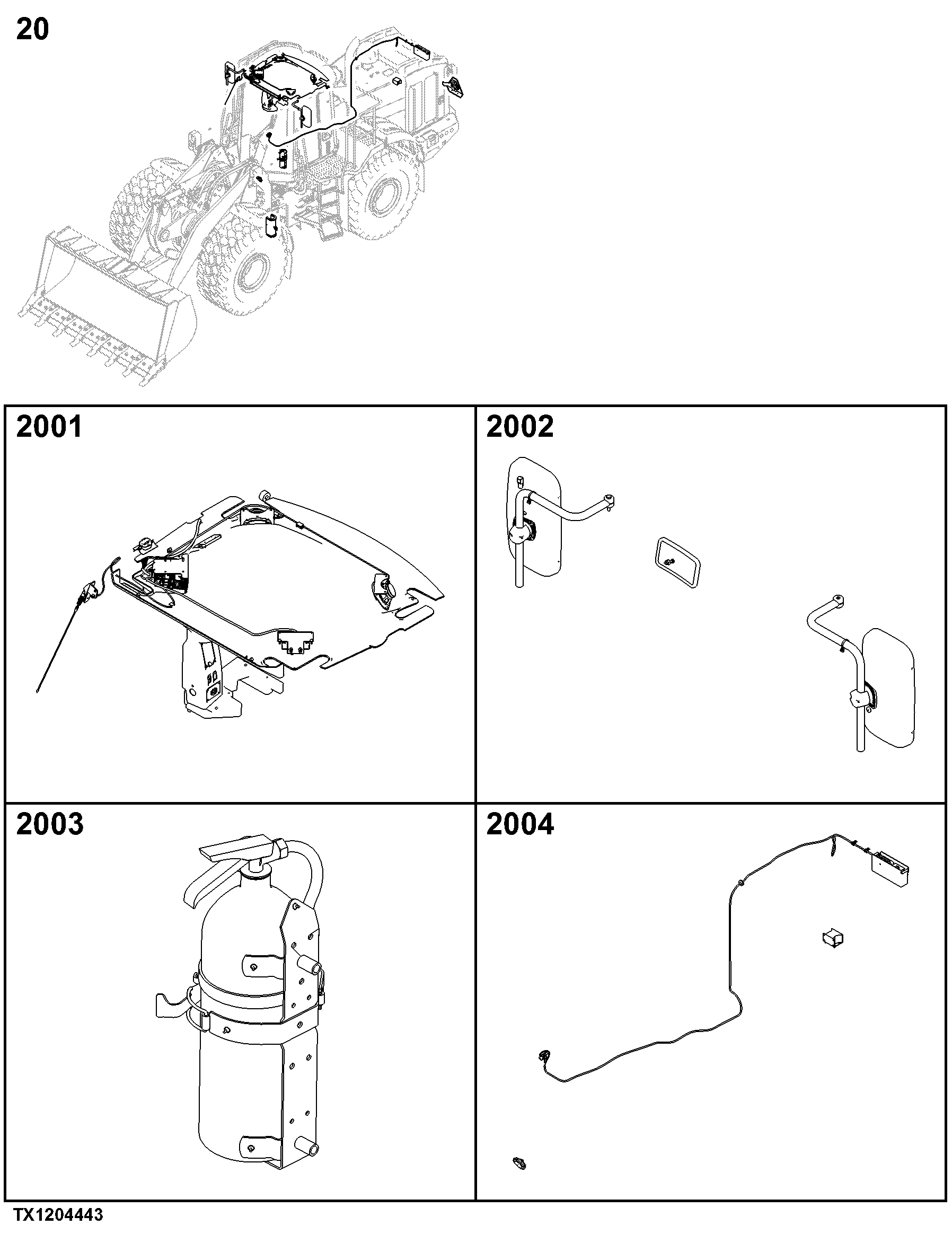

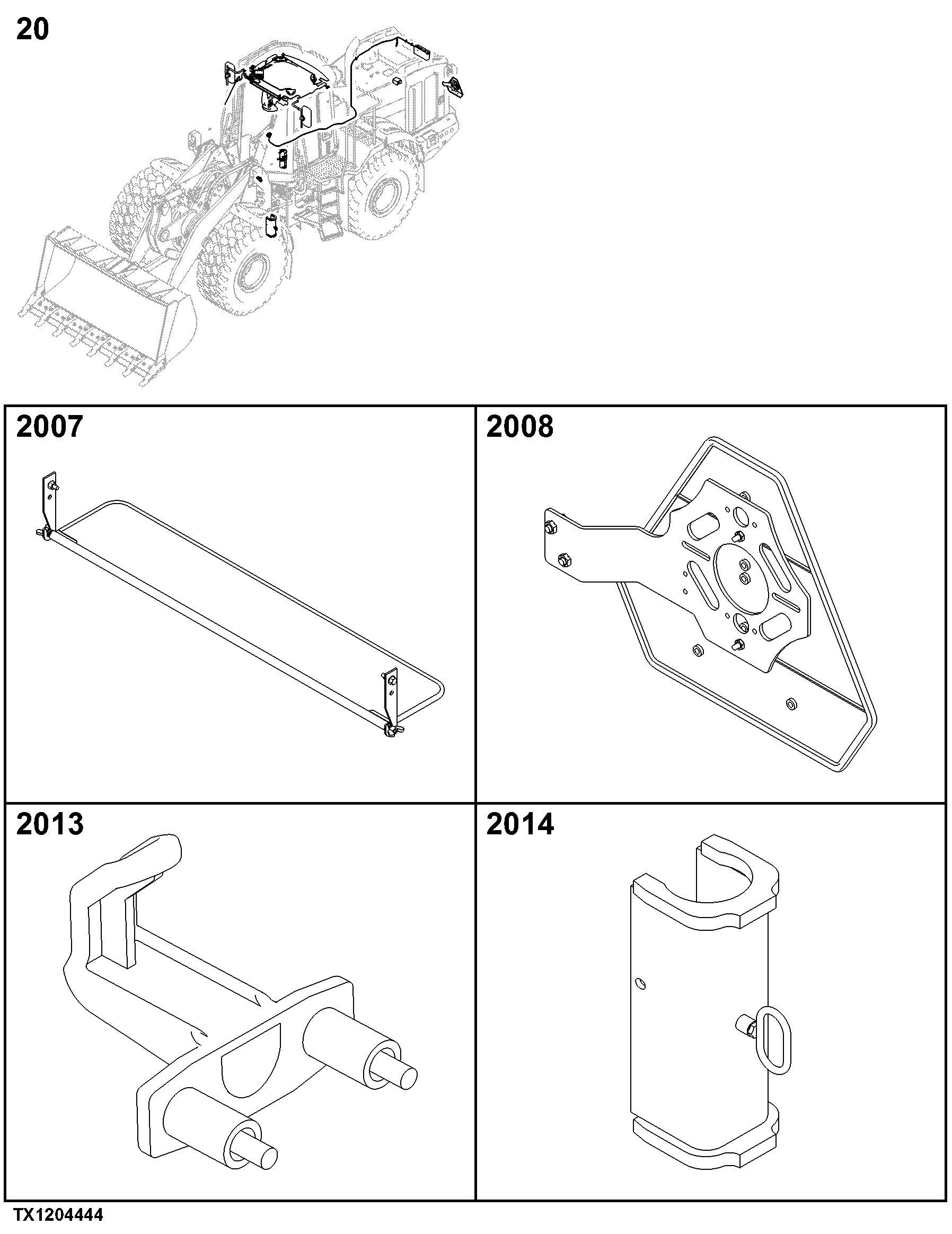

-	-	1	20 Safety, Convenience & Miscellaneous	-

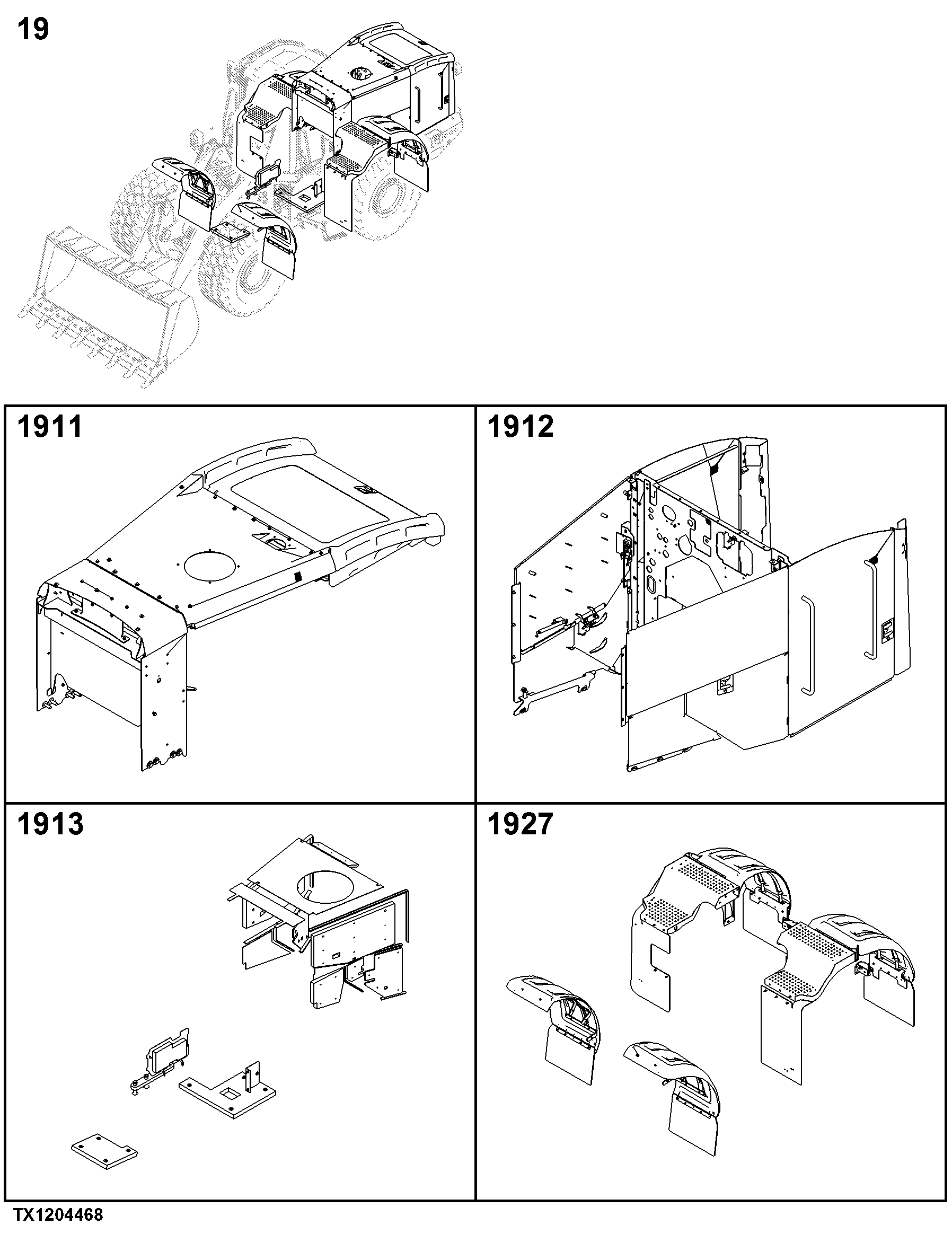

-	-	1	19 Sheet Metal & Styling	-

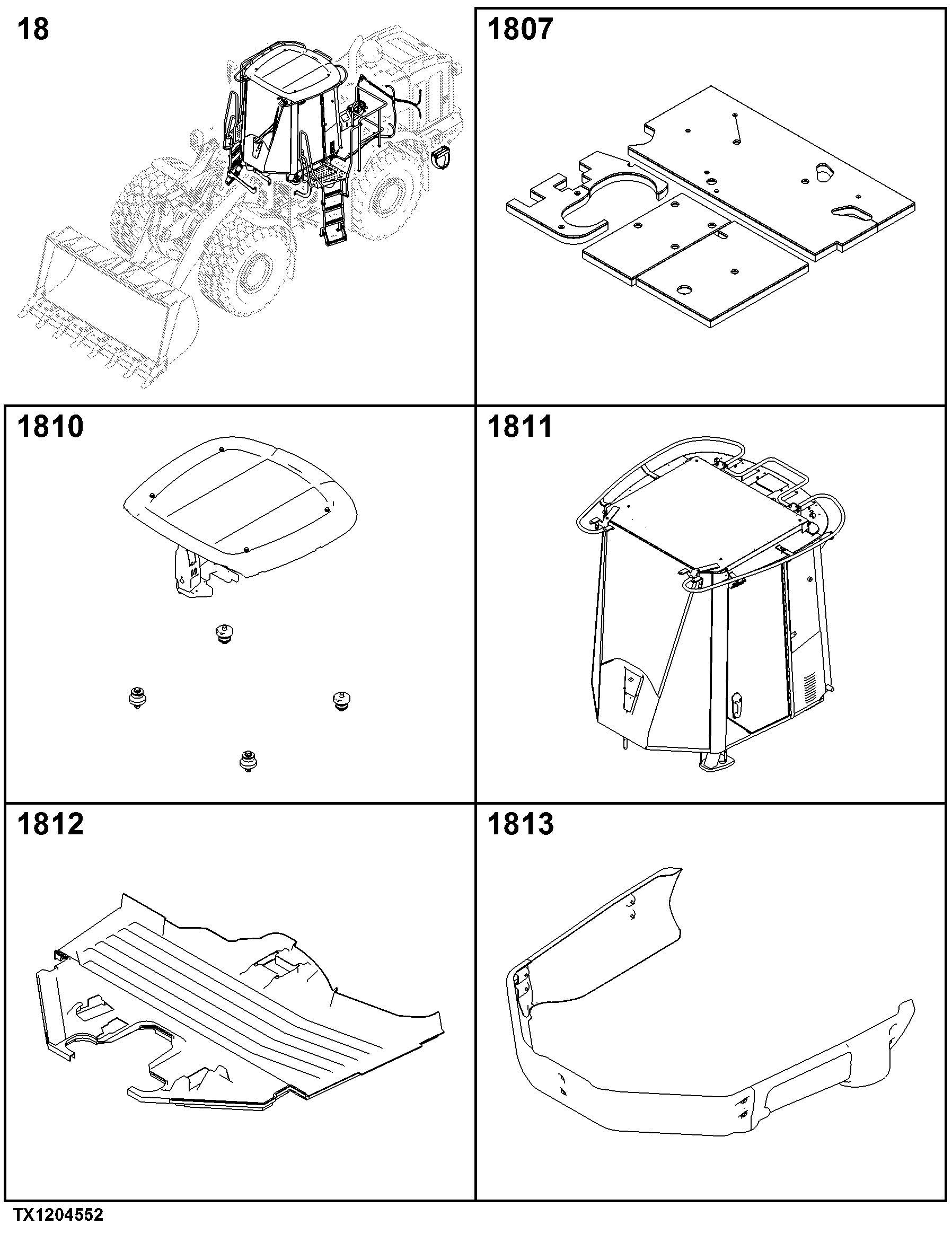

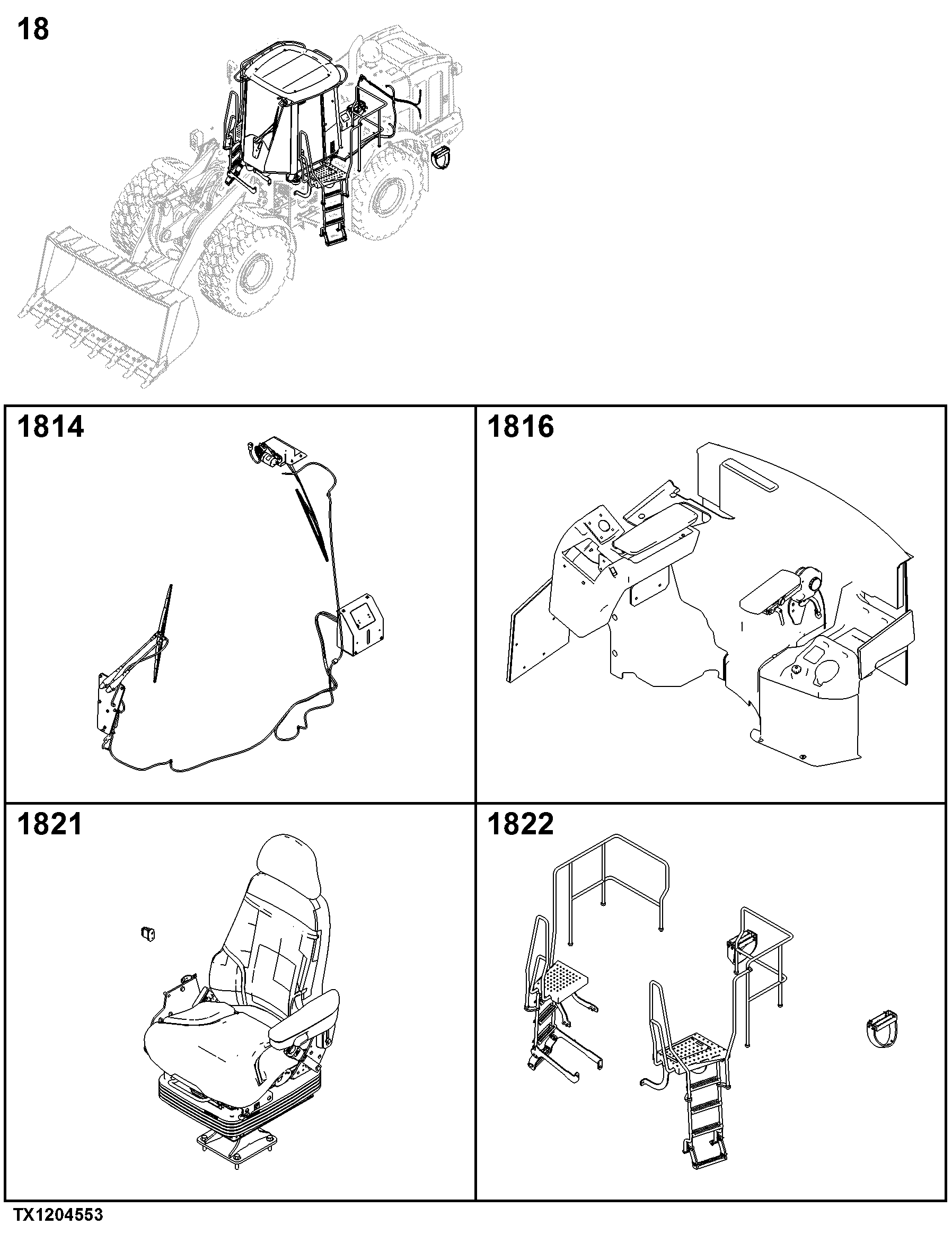

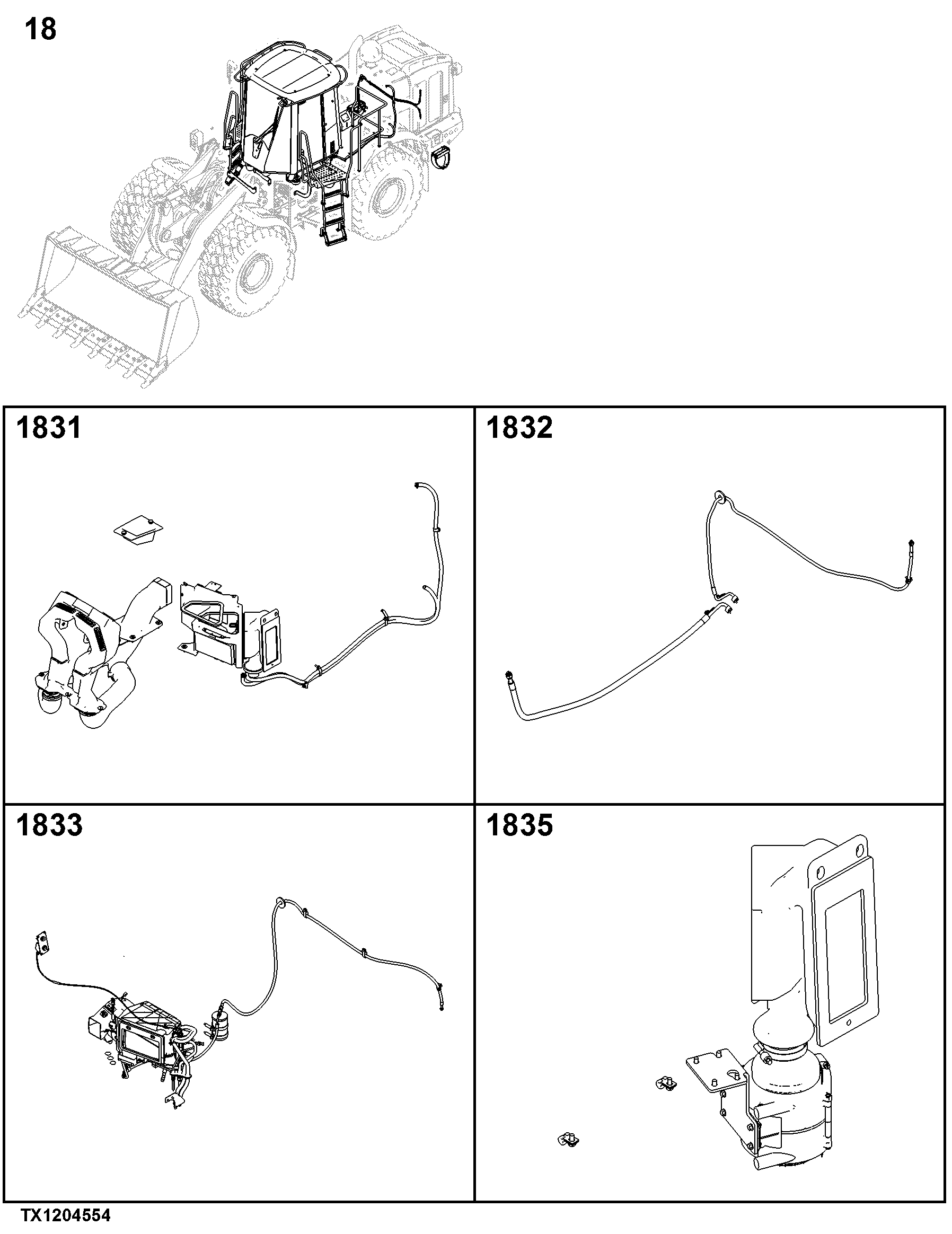

-	-	1	18 Operator's Station	-

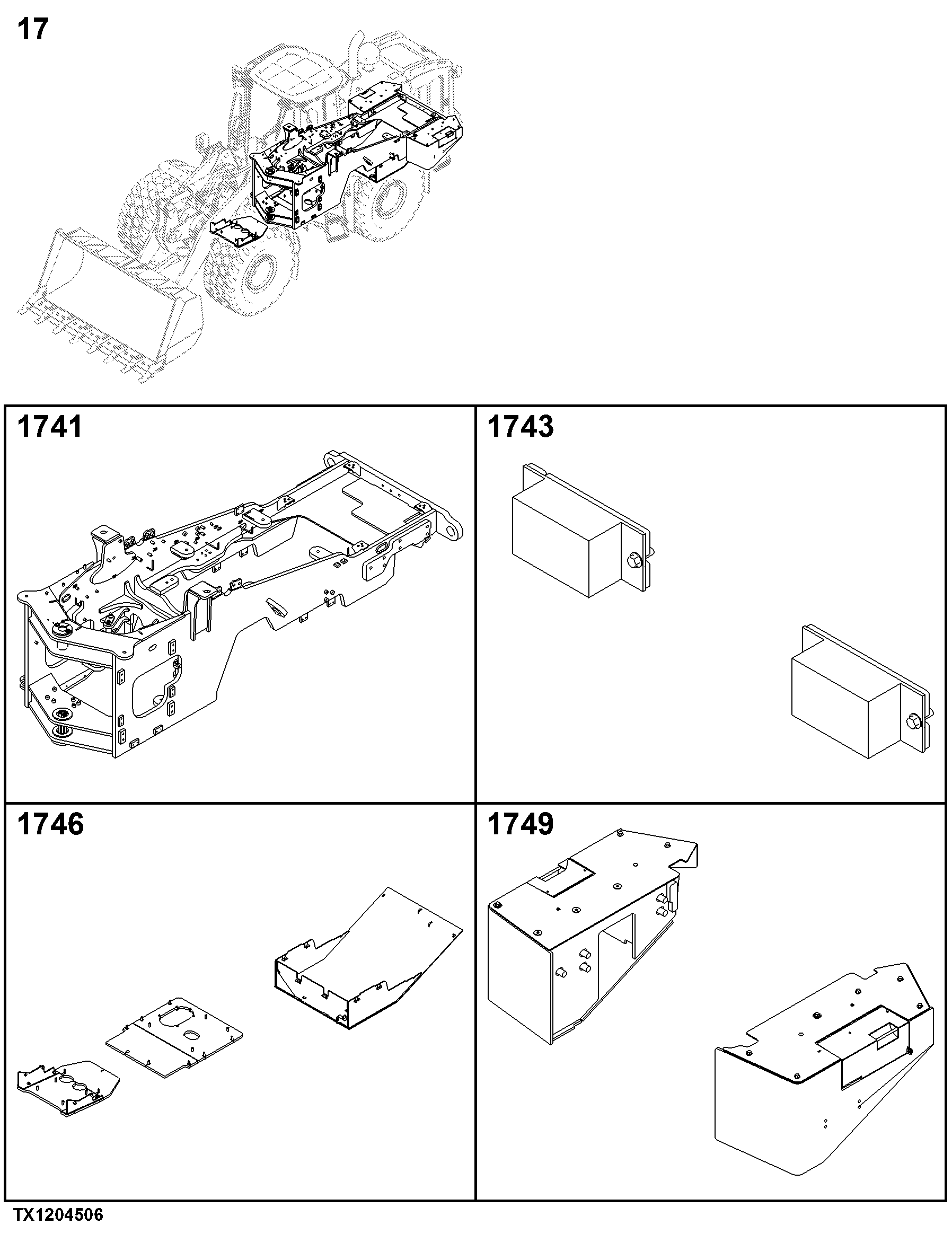

-	-	1	17 Frame Chassis Or Supporting Structure	-

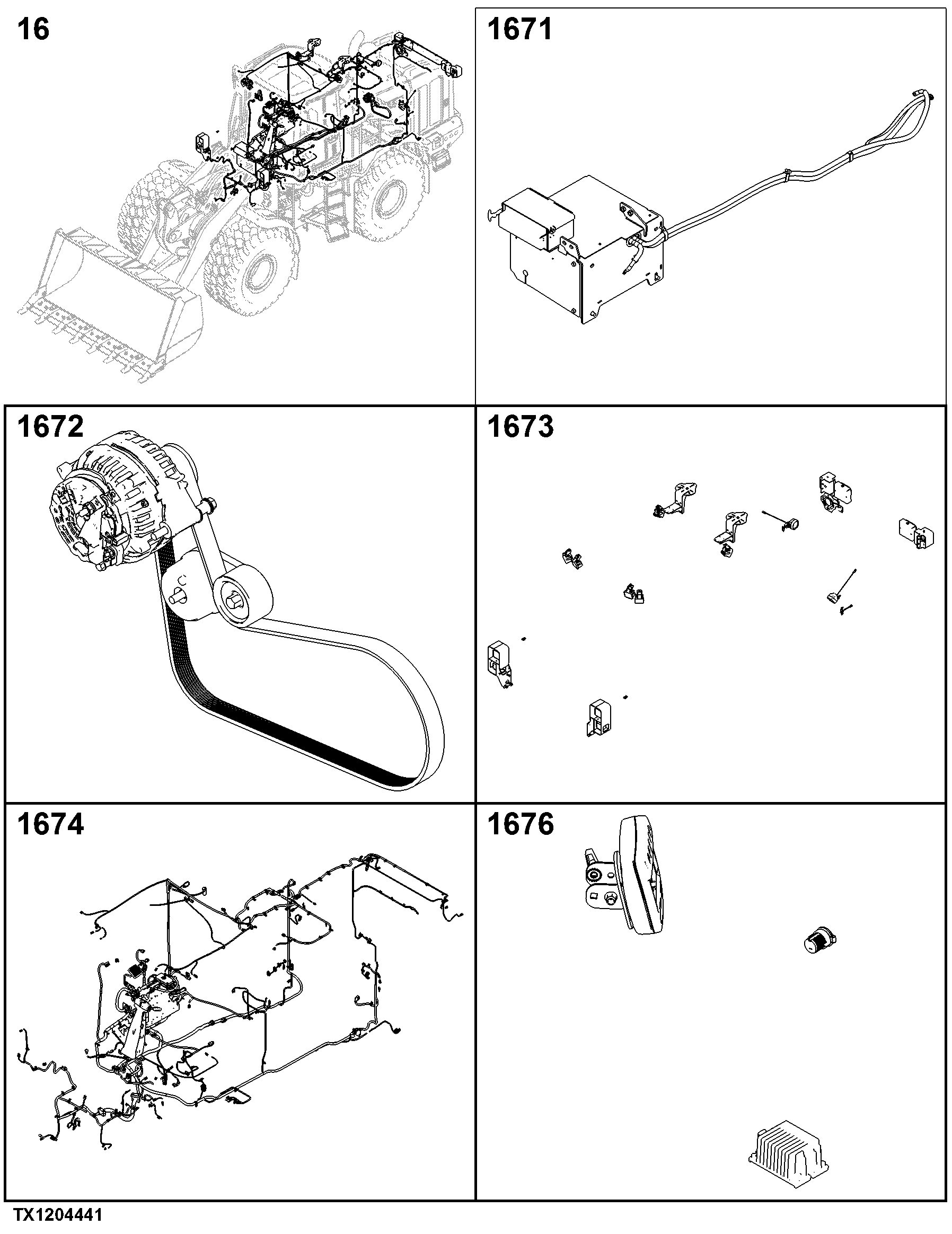

-	-	1	16 Vehicle Electrical Systems	-
-	-	1	15 Equipment Attaching	-

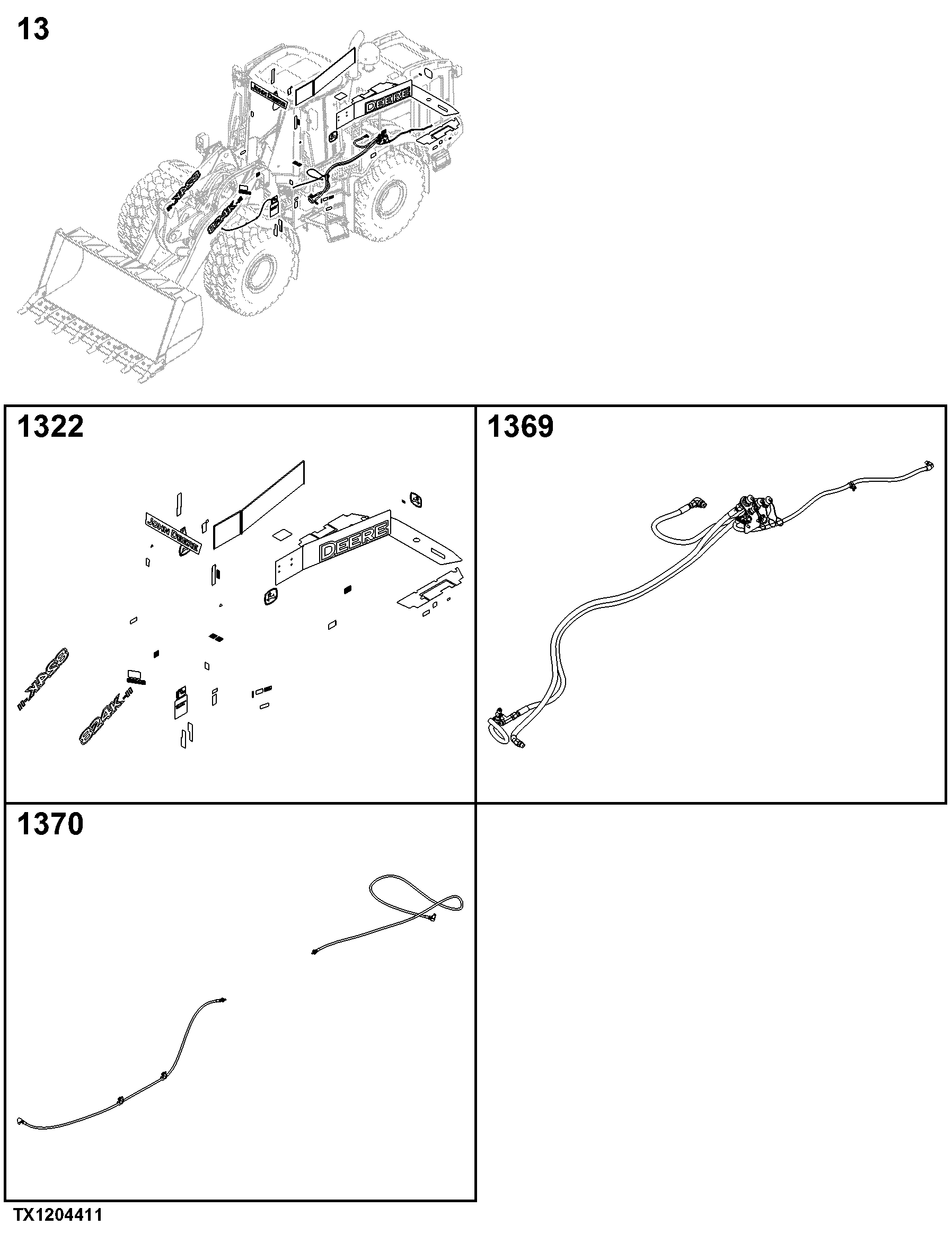

-	-	1	13 Miscellaneous Vehicle	-
-	-	1	1 Wheels, Tires and Tracks	-

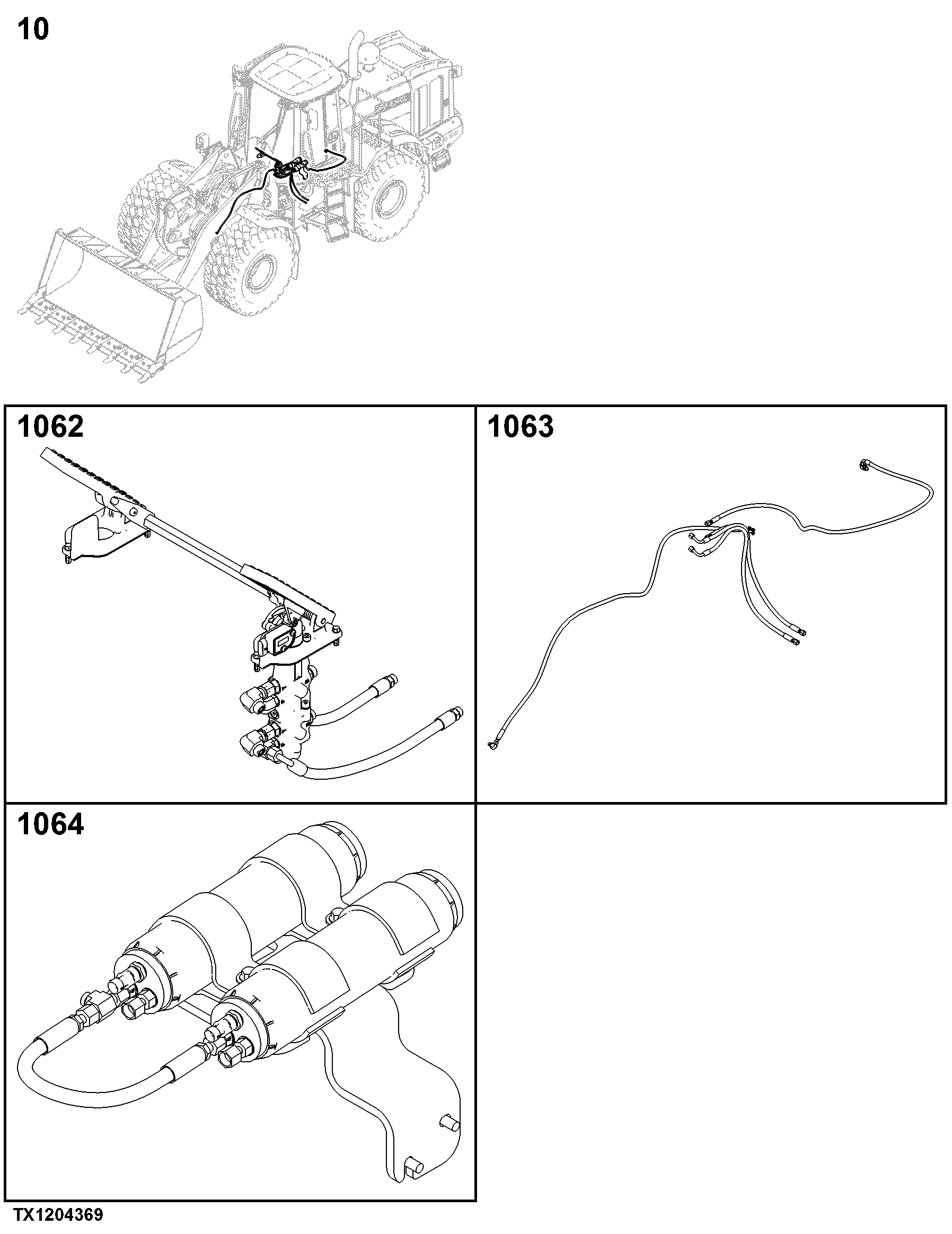

-	-	1	10 Service Brakes	-

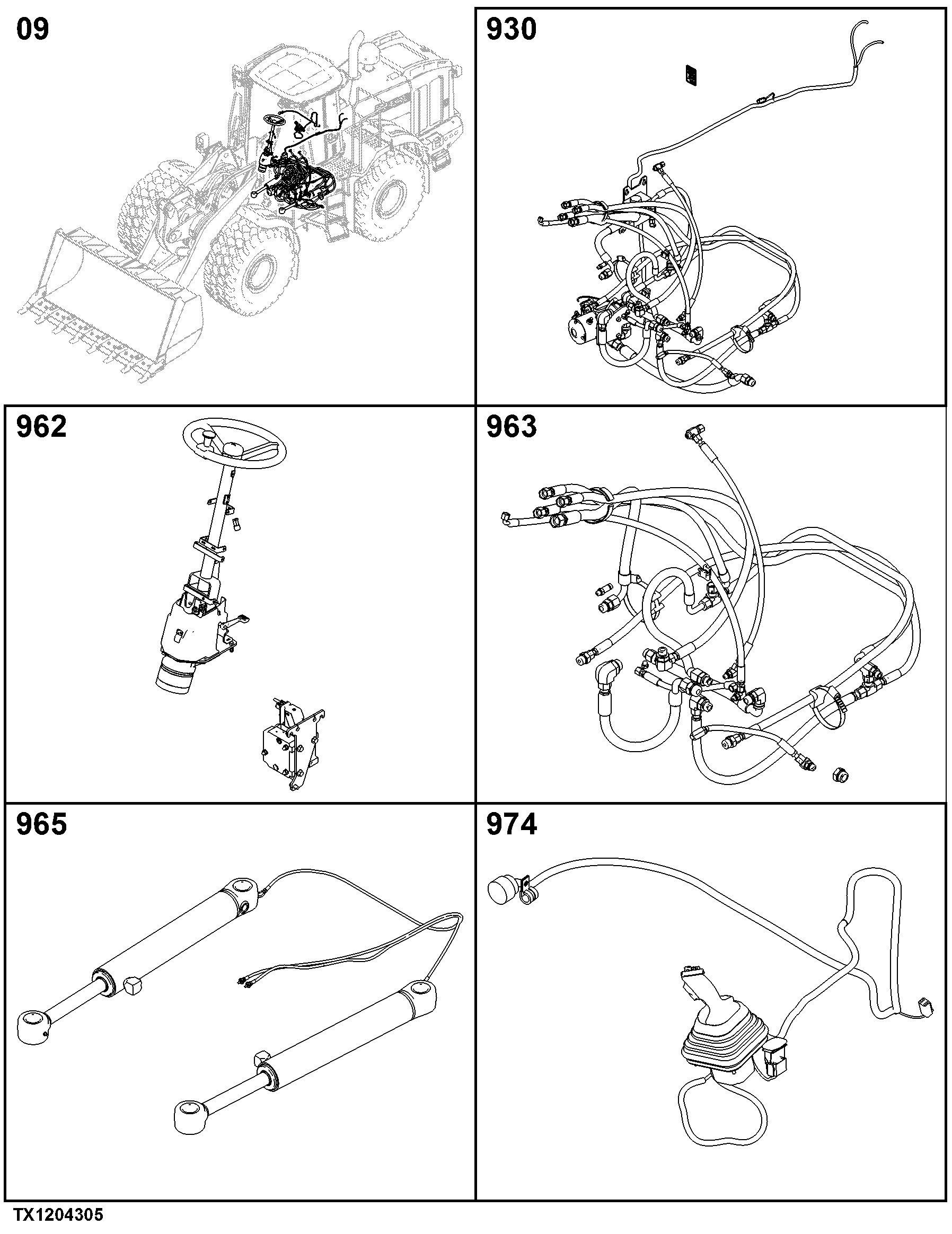

-	-	1	9 Steering System	-

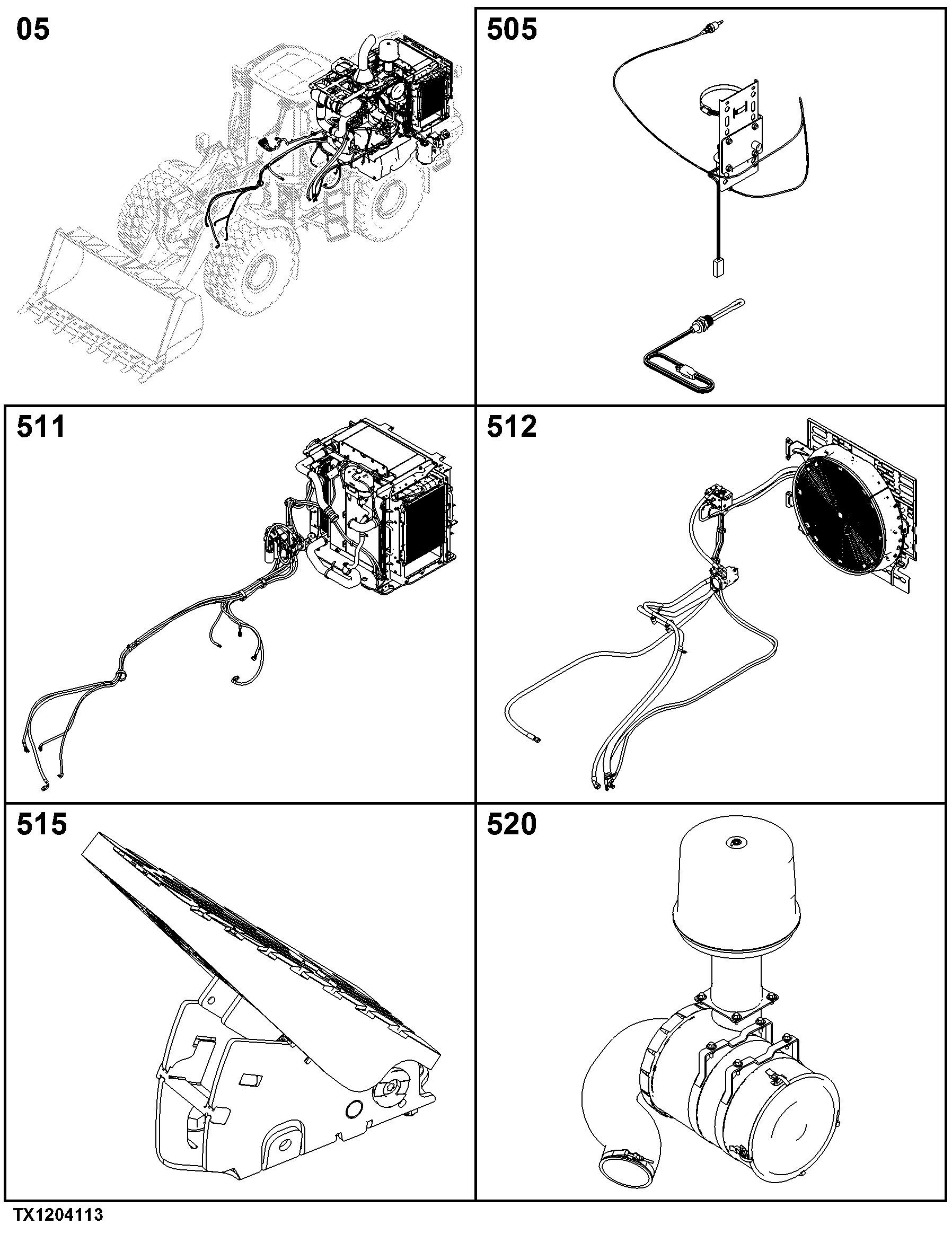

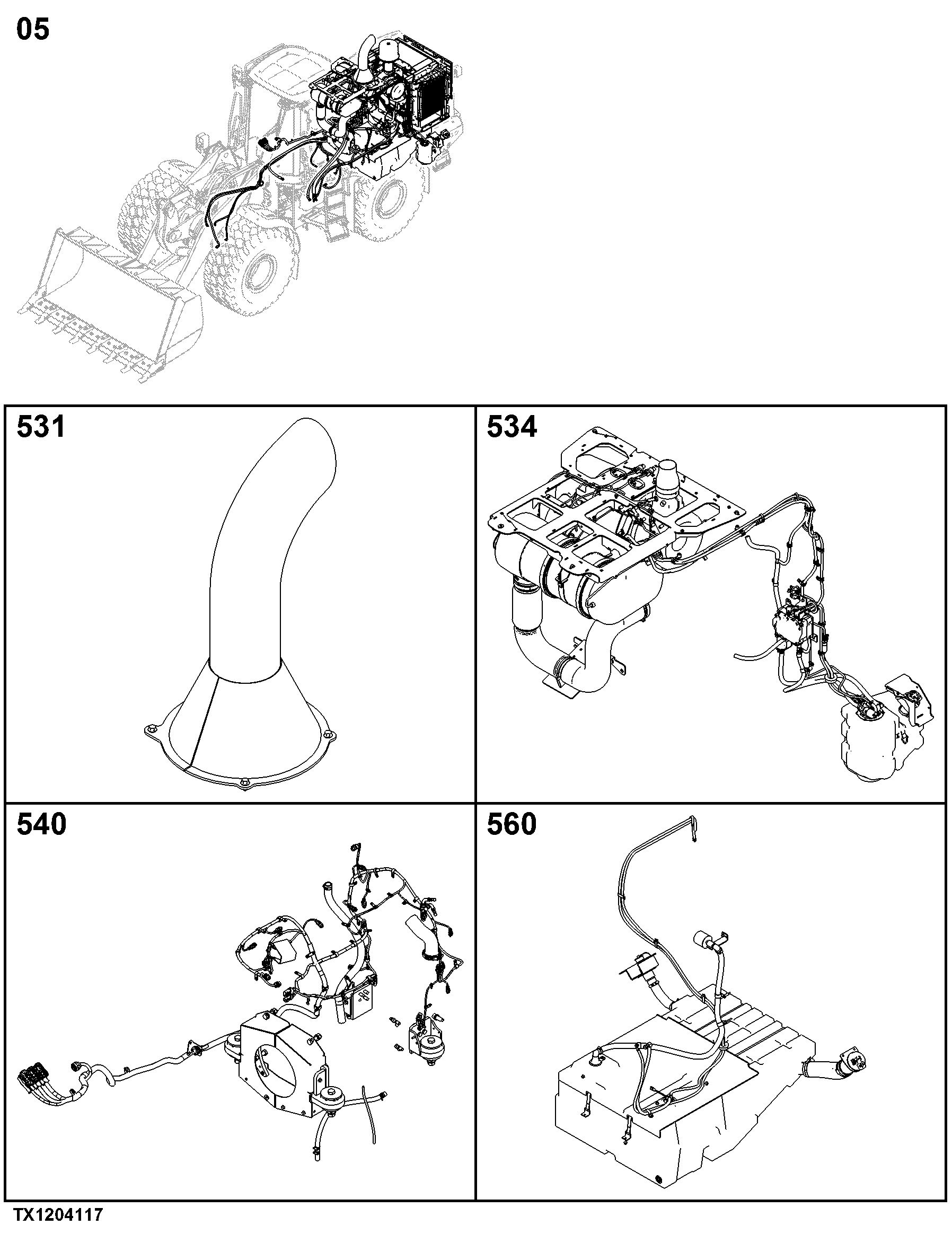

-	-	1	5 Engine Auxiliary System	-
-	-	1	04C Engine 6135HDW19-DZ106175	-

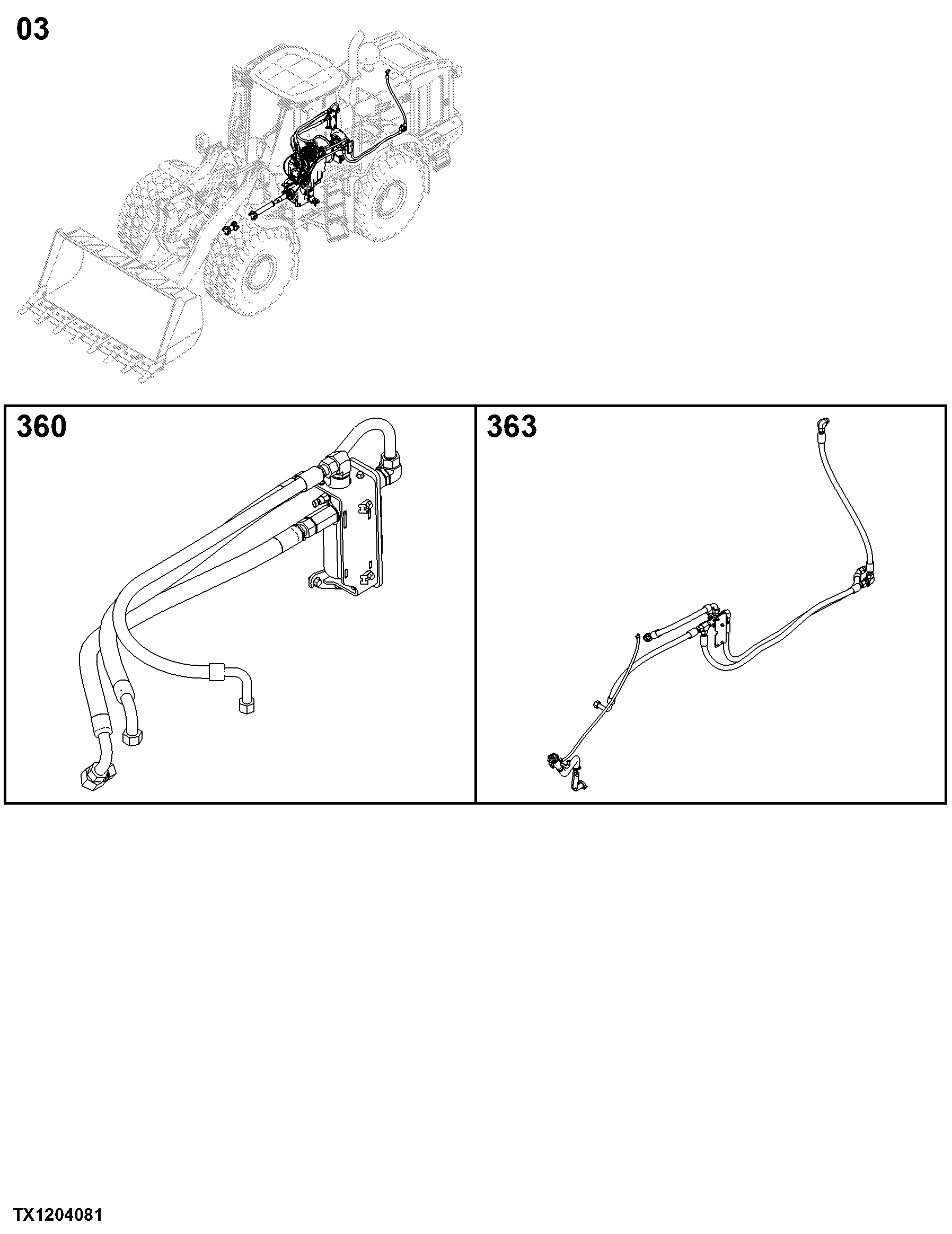

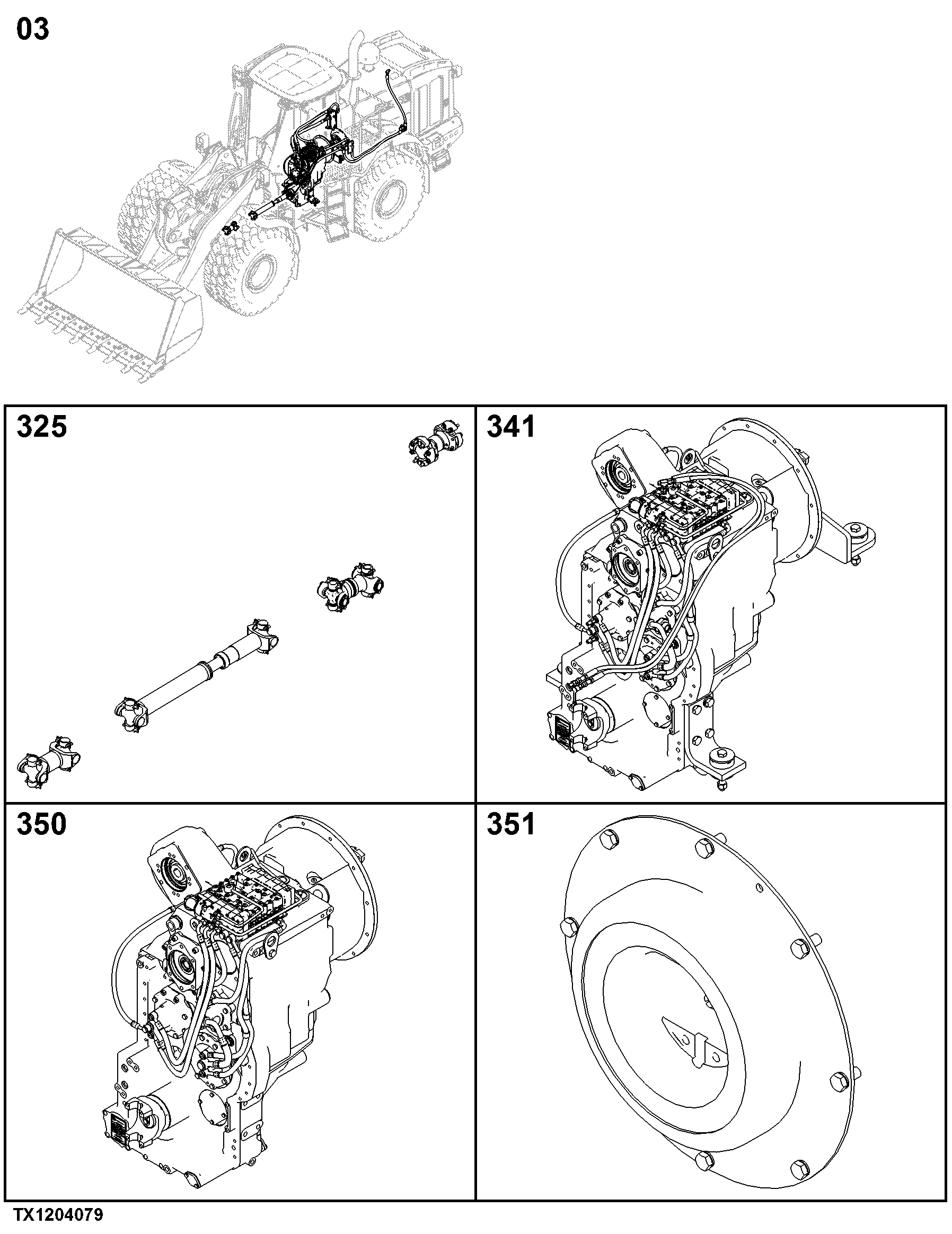

-	-	1	3 Transmission	-
-	-	1	02A Axles, Differentials & Suspension Systems	-
