Открытый узел

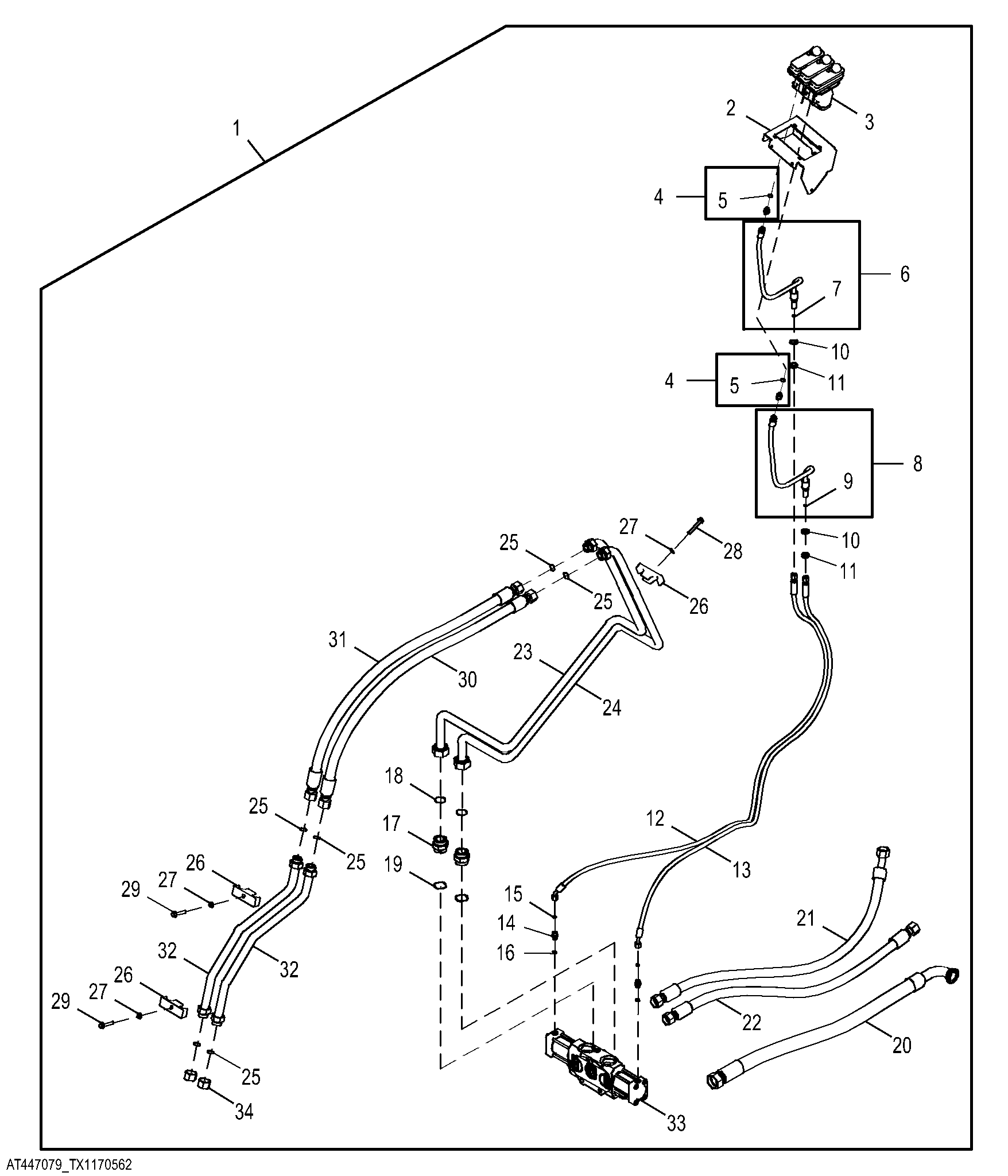

2-Lever to 3-Lever Pilot Controller Conversion Kit (662428 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT207984	3	Rod	Three Spool Stud Assembly Not Illustrated
1	AT447079	1	Control Kit	Whole Goods, INCLUDES AT207984, 810000500 AND T170067
1	T170067	6	Nut	Not Illustrated
1	810000500	6	WASHER*5/8	Not Illustrated
2	AT341526	1	Plate	-
3	AT300154	1	Hydr./Pilot Control Valve	3-Lever Fingertip Controller Components On Separate Page
4	62H1001	2	Adapter Fitting	SUB FOR 63H1001
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	AT336507	1	Hydraulic Hose	Hydraulic / Pilot Control Valve
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	AT336507	1	Hydraulic Hose	Hydraulic / Pilot Control Valve
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	12H327	2	Lock Washer	3/4"
11	T81029	2	Nut	-
12	AT336508	1	Hydraulic Hose	Hydraulic / Pilot Control Valve To Spool Valve, ORDER AT460757
12	AT460757	1	Hydraulic Hose	-
13	AT336508	1	Hydraulic Hose	Hydraulic / Pilot Control Valve To Spool Valve, ORDER AT460757
13	AT460757	1	Hydraulic Hose	-
14	38H1160	2	Adapter Fitting	ORDER 38H1045
14	38H1045	1	Elbow Fitting	-
15	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	38H1191	2	Adapter Fitting	-
18	T78784	2	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
19	R26773	2	O-Ring	43.688 X 2.997 mm (1.720" X 0.118")
20	AT361353	1	Hydraulic Hose	-
21	AT361352	1	Hydraulic Hose	To Spool Valve
22	AT349098	1	Hydraulic Hose	To Spool Valve
23	AT203072	1	Line	-
24	AT203073	1	Line	-
25	T76938	6	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
26	T52979	3	Clamp	-
27	24M7239	3	Washer	10.700 X 21 X 2.500 mm
28	19M8114	1	Screw	M10 X 70
29	19M7807	2	Screw	M10 X 60
30	AT206844	1	Hydraulic Hose	-
31	AT206844	1	Hydraulic Hose	-
32	AT203074	2	Line	-
33	AT225955	1	Spool Valve	Auxiliary Valve Section Components Listed on Seperate Page
34	38H1419	2	Fitting	-

2-Lever to 3-Lever Pilot Controller Conversion Kit (662428 - )

Нет текстового описания
