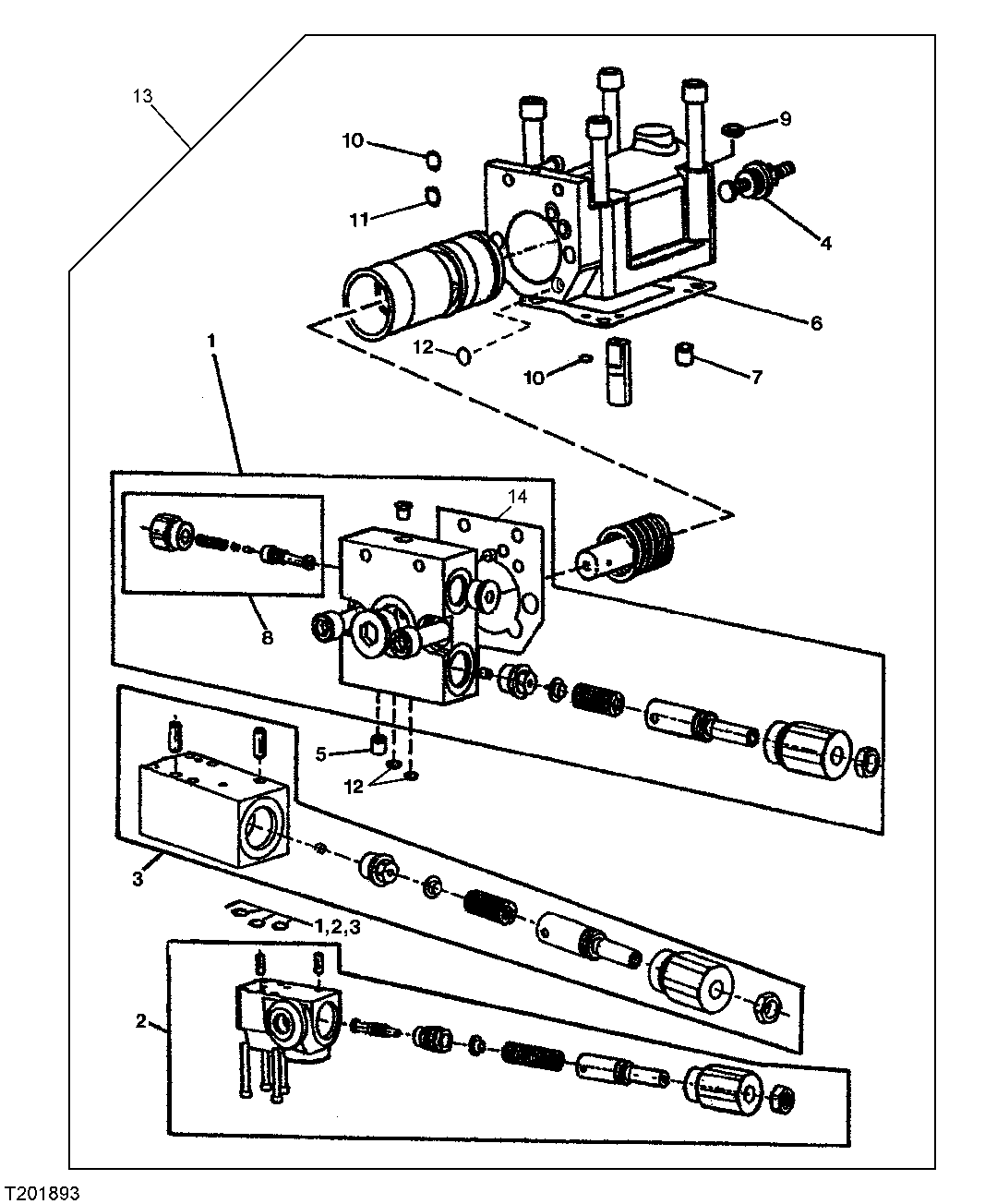

STEERING AND LOADER HYDRAULIC PUMP CONTROL VALVES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT208637	1	Control	(PUMP CONTROL END CAP) (PVG130) (LOADER PUMP) (INCLUDES ALL SEALS, GASKETS AND O-RINGS NEEDED FOR INSTALLATION), ORDER AT353756
1	AT353756	1	Hydraulic Pump	3200 PSI, PVG130 Loader Pump
1	T118681	1	O-Ring	(CENTER OF PUMP CONTROL END CAP)
1	AT208657	1	Cap	(PUMP CONTROL END CAP) (PVG75) (STEERING/LOADER PUMP) (INCLUDES ALL SEALS, GASKETS AND O-RINGS NEEDED FOR INSTALLATION) INSTALLATION)
2	AT208640	1	Flow Control Hyd. Valve	LOAD SENSING VALVE ASSEMBLY (PVG75 AND 130) (STEERING/LOADER PUMP AND LOADER PUMP) (INCLUDES ALL SEALS, GASKETS, AND O-RINGS NEEDED FOR INSTALLLATION)
3	AT208641	1	Hyd Actuated Control Valve	LOAD SENSING PLUS VALVE ASSEMBLY (PVG75 AND 130) (STEERING/LOADER PUMP AND LOADER PUMP) (INCLUDES ALL SEALS, GASKETS AND O-RINGS NEEDED FOR INSTALLATION)
4	AT209881	1	Stop	Stroke Limiter
5	T166400	1	Orifice	-
6	T166279	1	Gasket	(USE WITH AT208647)
6	T178707	1	Gasket	(USE WITH AT208637)
7	T166404	1	Orifice	(USE WITH AT208647)
7	T178706	1	Orifice	(USE WITH AT208637)
8	AT186257	1	Spool Kit	-
9	T166395	4	Washer	(USE WITH AT208647)
10	T166274	2	O-Ring	-
11	T40308	1	O-Ring	-
12	T166275	3	O-Ring	-
13	AT208647	1	Control	PUMP CONTROL (PVG75) (STEERING/LOADER PUMP)
13	AT208637	1	Control	PUMP CONTROL (PVG130) (LOADER PUMP), ORDER AT353756
13	AT353756	1	Hydraulic Pump	3200 PSI, PVG130 Loader Pump
14	-	1	Part 21	(SUB AT208638)
..	AT208643	1	Seal Kit	Pump Includes Gasket and O -Ring Between Pump and Control Assembly, (PVG75)
..	AT208633	1	Seal Kit	Pump Includes Gasket and O -Ring Between Pump and Control Assembly, (PVG130)
..	AT208648	1	Seal Kit	Control Valve Includes Gasket and O -Ring Between Pump and Control Assembly, (PVG75)
..	AT208638	1	Seal Kit	Control Valve Includes Gasket and O -Ring Between Pump and Control Assembly, (PVG130)

STEERING AND LOADER HYDRAULIC PUMP CONTROL VALVES

Нет текстового описания
