LOADER BUCKETS, BUCKET PINS AND CUTTING EDGE (BOLT-ON SPILLGUARD) (SN -612710)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7489	3	Cap Screw	M16 X 45
2	AT339970	2	Pin Fastener	(SUB FOR AT206731)
3	AT353853	1	Pin Fastener	(SUB FOR AT223925)
4	19M7789	3	Screw	M12 X 30, (USE WITH AT223925)
4	19M8295	3	Cap Screw	M16 X 55, (USE WITH AT353853)
4	24M7097	3	Washer	17 X 28 X 2.500 mm, (USE WITH AT353853)
5	-	1	Part 7	(SUB AT353853) (T180931 NLA)
5	T242247	1	Plate	(USE WITH AT353853)
6	AT228893	4	Ring	Includes O -Ring, Cap Screws, Lock Nuts, and Washers, (INCLUDES 24M7027)
6	24M7027	1	Washer	5.300 X 10 X 1 mm, (USE WITH AT228893)
8	T198214	1	Washer	80.500 X 165 X 2 mm (3.169" X 6.496" X 0.079"), 2.0 mm
9	T156262	1	Dura-Max Cutting Edge	-
10	T146932	8	Nut	25.400 mm (1")
11	T146933	8	Bolt	25.400 X 76.200 mm (1" X 3")
12	T156079	2	Single Bar Shoe	-
13	JD7759	2	Lubrication Fitting	-
14	T101480	3	Washer	-
15	T176064	3	Bushing	-
16	T198213	4	Washer	2.5 mm
17	-	1	Part 20	6.0 yd³, (AT305065 NLA) (SUB AT346234 ) (ALSO ORDER (2) T101480, AT353851, (2) AT346092, (4) T102137, (2) T233013, (18) T198213 AND (4) AT228893)
17	-	1	Part 21	6.75 yd³, (AT317819 NLA) (SUB AT346211 ) (ALSO ORDER (2) T101480, AT353851, (2) AT346092, (4) T102137, (2) T233013, (18) T198213 AND (4) AT228893)

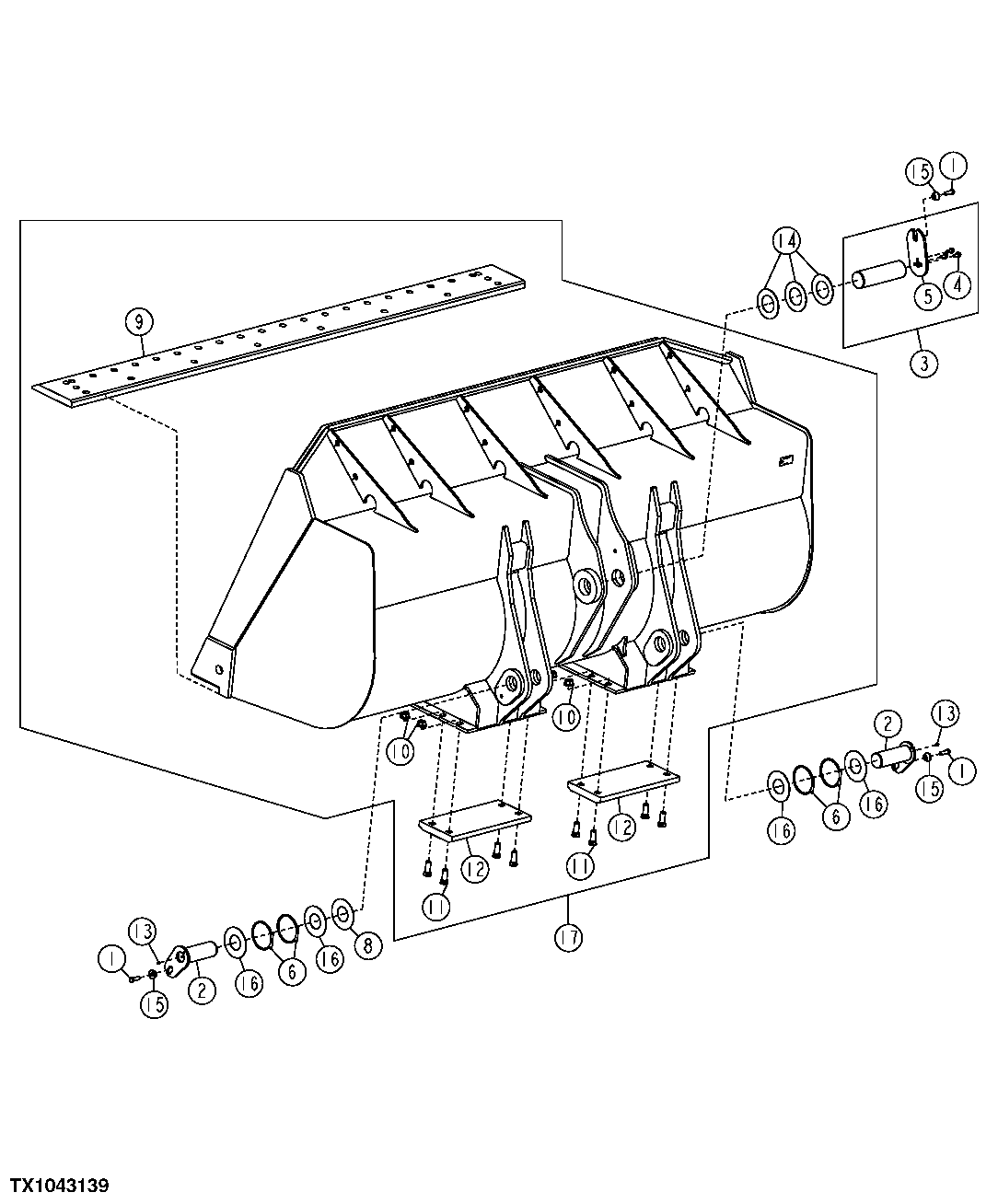

LOADER BUCKETS, BUCKET PINS AND CUTTING EDGE (BOLT-ON SPILLGUARD) (SN -612710)
