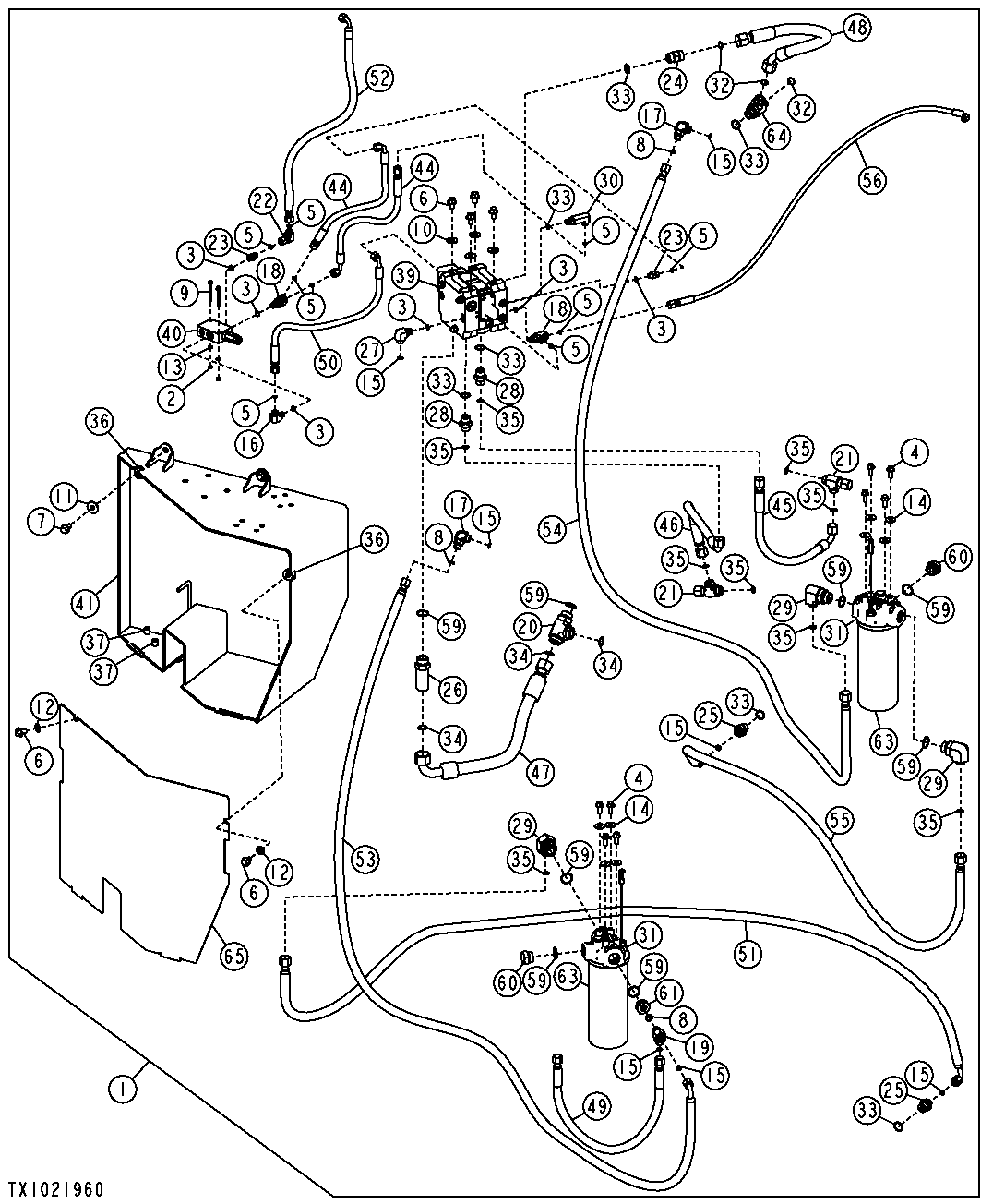

JOYSTICK HYDRAULIC STEERING KIT (1 OF 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Additional Components Listed On Following Page, (AT335888 NLA)
2	14M7272	2	Nut	M6
3	R26448	5	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
4	19M7785	8	Screw	M10 X 25
5	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
6	19M7787	6	Screw	M12 X 20
7	19M7788	5	Screw	M12 X 25
8	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
9	19M8040	2	Screw	M6 X 60
10	24H1748	4	Washer	1/2" X 1-1/4" X 0.105"
11	24M7180	5	Washer	13 X 37 X 3 mm
12	24M7240	2	Washer	13 X 25 X 3 mm
13	24M7293	2	Washer	6.500 X 13 X 1.600 mm
14	24M7296	8	Washer	10.500 X 30 X 2.500 mm
15	T77857	5	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
16	38H1004	1	Elbow Fitting	-
17	38H1005	1	Elbow Fitting	-
18	38H1023	1	Tee Fitting	-
19	38H1024	1	Tee Fitting	-
20	38H1027	1	Tee Fitting	-
21	38H1032	1	Tee Fitting	-
22	38H1094	1	Elbow Fitting	-
23	38H1160	1	Adapter Fitting	-
24	38H1163	1	Adapter Fitting	-
25	38H1175	1	Adapter Fitting	-
26	38H1216	1	Adapter Fitting	-
27	38H1314	1	Elbow Fitting	-
28	38H1329	1	Adapter Fitting	-
29	38H1422	1	Elbow Fitting	-
30	38H1568	1	Elbow Fitting	-
31	AT302906	1	Filter Head	-
32	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
33	U12547	4	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
34	T76938	3	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
35	T77932	4	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
36	T125546	2	Bushing	-
37	28H2497	2	Spacer	0.423" X 0.675" X 5/8"
38	AT307045	1	Pressure Switch	-
39	AT348578	1	Elec-Hyd Proportional Valve	Components On Separate Page, (SUB FOR AT338923)
40	AT327459	1	Oil Pressure Reg. Valve	-
41	AT329845	1	Valve Cover	-
44	AT331914	2	Hydraulic Hose	17.4752" X 560 mm (22") X 17.4752"
45	AT331915	1	Hydraulic Hose	1" X 580 mm (22-3/4") X 1"
46	AT331916	1	Hydraulic Hose	1" X 525 mm (20-3/4") X 1"
47	AT331917	1	Hydraulic Hose	36.5252" X 520 mm (20-1/2") X 36.5252"
48	AT331918	1	Hydraulic Hose	30.1752" X 620 mm (24-1/2") X 30.1752"
49	AT331919	1	Hydraulic Hose	13/16" X 800 mm (31-1/2") X 13/16"
50	AT331920	1	Hydraulic Hose	17.4752" X 670 mm (26-1/2") X 17.4752"
51	AT331921	1	Hydraulic Hose	1" X 2850 mm (112-1/4") X 13/16"
52	AT331922	1	Hydraulic Hose	17.4752" X 730 mm (28-3/4") X 17.4752"
53	AT331923	1	Hydraulic Hose	13/16" X 3075 mm (121") X 13/16"
54	AT331924	1	Hydraulic Hose	13/16" X 2800 mm (110-1/4") X 1"
55	AT331925	1	Hydraulic Hose	1" X 2120 mm (83-1/2") X 5/8"
56	AT331926	1	Hydraulic Hose	17.4752" X 1245 mm (49") X 9/16"
59	R29936	6	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
60	R36636	2	Drain Plug	-
61	T132838	1	Fitting Plug	-
62	P46051	1	O-Ring	10.770 X 2.616 mm (0.424" X 0.103")
63	AT308274	1	Oil Filter	-
64	38H1026	1	Tee Fitting	-
65	T223303	1	Cover	-
