ENGINE OIL COOLER, OIL FILTER HOUSING, OIL FILTER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE500657	1	Oil Cooler	(SUB FOR RE53722)
2	R134716	2	O-Ring	-
3	R500209	1	Gasket	(SUB FOR R116855)
4	RE71255	1	Pipe Plug	-
5	R116854	1	Housing	-
6	15H639	3	Pipe Bushing	1/8"
7	AT13740	1	Drain Valve	-
8	19M8574	2	Screw	M10 X 85
9	R500210	1	Gasket	(SUB FOR R116864)
10	15H685	2	Pipe Plug	1/4"
11	R127208	1	Adapter Fitting	-
12	RE58935	1	Oil Filter	-
13	R500055	2	Valve	(SUB FOR (2) R108867)
14	R98064	2	Spring	-
15	U17409	3	O-Ring	26.594 X 2.946 mm (1-3/64" X 0.116")
16	R500232	3	Fitting Plug	(SUB FOR R134727)
17	19M7810	1	Screw	M10 X 80
18	19M7958	7	Screw	M10 X 150
19	R500283	1	Bushing	(SUB FOR R94620 ) (SUB RE500473, THIS APPLICATION ) (ORDER RE505883)( RE500473 NLA)
19	U40750	1	Washer	-
20	RE500473	1	Housing	(MARKED R126344 ) (SUB RE505883)
20	R503400	1	Housing	(SUB RE515304)
21	RE505883	1	Housing	(MARKED R503400 ) (SUB RE515304)
22	R124186	1	Pressure Relief Valve	-
23	R130717	1	Spring	-
24	R63532	1	Valve	-
25	T31636	1	Spring	-
26	R26375	1	O-Ring	-
27	R33138	1	Fitting	-
28	R116203	1	Elbow Fitting	-
29	AT222377	1	Engine Oil Press. Sensor	(SUB FOR RE56009, THIS APPLICATION)
29	RE167207	1	Sensor	-
30	R136500	2	Nut	(SUB FOR R119149)
31	15H686	1	Pipe Plug	1"
32	R55233	1	Pipe Plug	-
33	R503714	1	Housing	-
34	RE515304	1	Housing	(MARKED R503714)

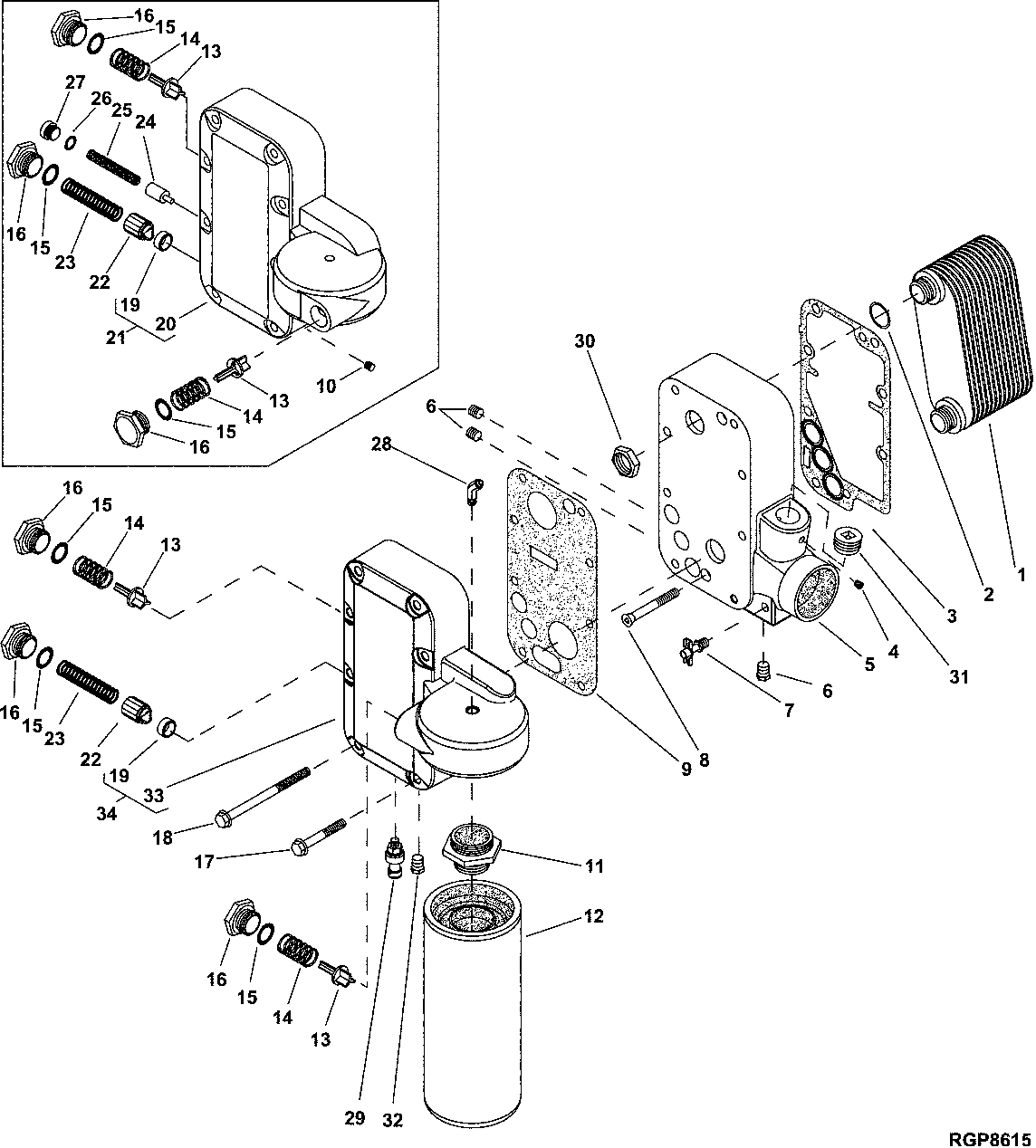

ENGINE OIL COOLER, OIL FILTER HOUSING, OIL FILTER
