Открытый узел

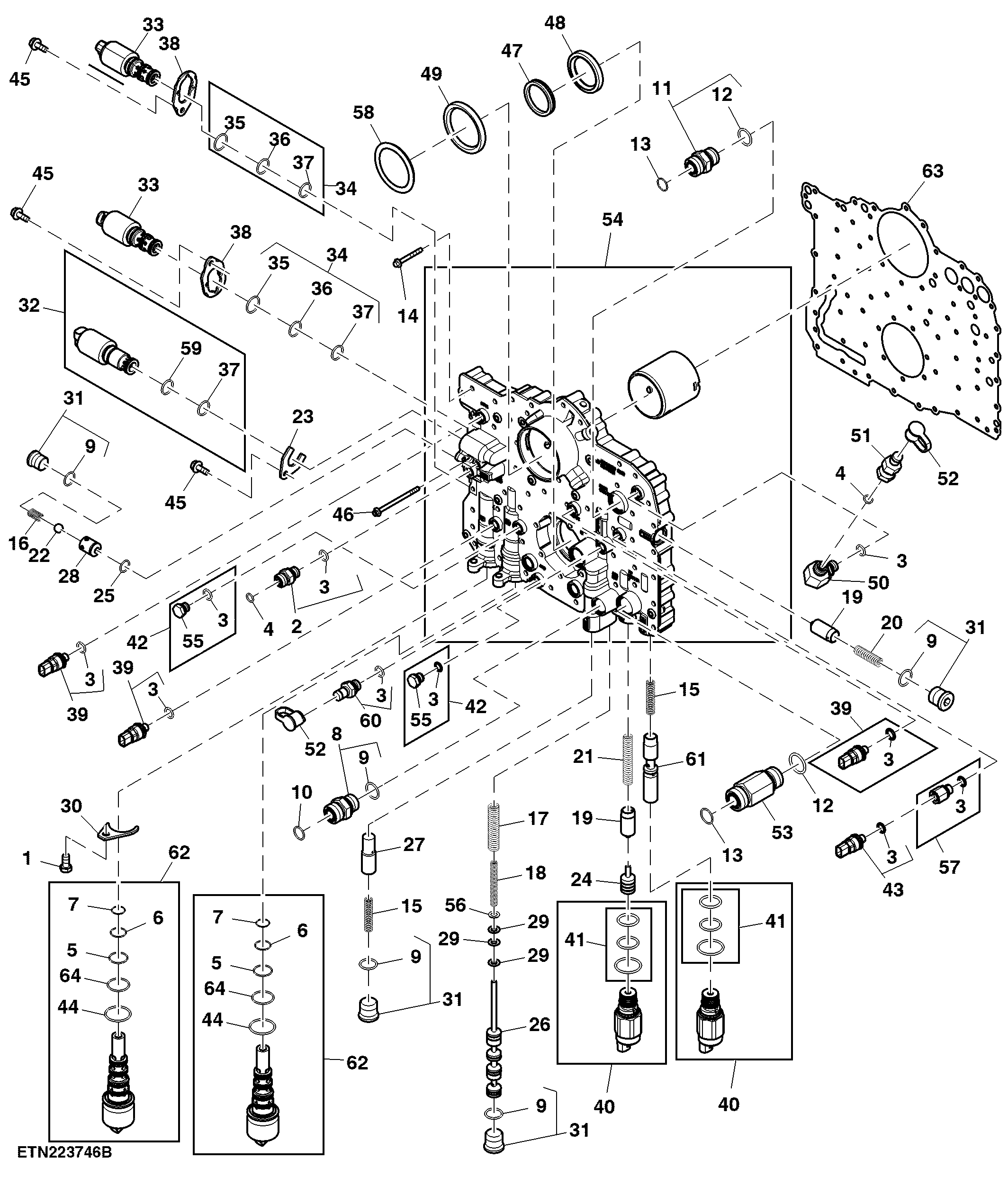

Manifold, Lower Rear, W/ MFWD (100097 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7938	2	Cap Screw	M10 X 20
2	38H5002	1	Adapter Fitting	-
3	51M7041	10	O-Ring	11.300 X 2.200 mm
4	T77613	2	O-Ring	-
5	U11326	2	O-Ring	-
6	R62070	2	Ring	-
7	R27928	2	O-Ring	-
8	38H5004	1	Adapter Fitting	-
9	51M7045	5	O-Ring	19.300 X 2.200 mm
10	T77932	1	O-Ring	-
11	38H5005	1	Adapter Fitting	-
12	51M7047	3	O-Ring	23.600 X 2.900 mm
13	T77858	3	O-Ring	-
14	L115609	69	Screw	-
15	R116040	2	Spring	-
16	R128397	1	Compression Spring	-
17	R160627	1	Compression Spring	-
18	R160628	1	Compression Spring	-
19	R161099	2	Valve	-
20	R161100	1	Spring	-
21	R161101	1	Compression Spring	-
22	H23836	1	Ball	-
23	R308519	1	Clamp	-
24	R310832	1	Valve Spool	-
25	R33259	1	O-Ring	-
26	R336692	1	Valve Spool	-
27	R336694	1	Valve Spool	-
28	R337186	1	Valve	-
29	R86638	1	Shim	TK = 0.760 mm
30	R95045	2	Clamp	-
31	RE162743	4	Fitting Plug	-
32	RE577638	1	Solenoid Valve	Park Sump Block Solenoid Y670
33	RE211157	1	Solenoid Valve	Park Brake Supply Solenoid Y633; INCLUDES R104554, R104555 AND R104556
33	RE211157	1	Solenoid Valve	MFWD Solenoid Y665; INCLUDES R104554, R104555 AND R104556
34	RE47392	2	O-Ring Kit	-
35	R104554	2	Ring	ORDER RE47392
36	R104555	2	Ring	ORDER RE47392
37	R104556	3	Ring	ORDER RE47392
38	R211082	2	Clamp	-
39	RE584415	1	Pressure Sensor	Park Brake Pressure Sensor B707
39	RE584415	1	Pressure Sensor	System 2 Pressure Sensor B727
39	RE584415	1	Pressure Sensor	R2 Clutch Pressure Sensor B640
40	RE244397	1	Solenoid Valve	Hydraulic Oil Cooler Control Solenoid Valve Y624
40	RE244397	1	Solenoid Valve	Lube Priority Solenoid Valve Y635
41	RE276475	2	Repair Kit	-
42	RE46684	2	Fitting Plug	-
43	RE584414	1	Pressure Sensor	Lube Pressure Sensor B721
44	U41966	2	O-Ring	-
45	19M7775	5	Screw	M6 X 16
46	R540418	1	Screw	-
47	T121280	1	Seal	-
48	RE14439	1	Seal	-
49	RE565834	1	Seal	-
50	38H5016	1	Elbow Fitting	INCLUDES 51M7041
51	RE60701	1	Diagnostic Coupling	-
52	R77175	2	Cover	-
53	R543735	2	Fitting	-
54	RE596268	1	Manifold	-
55	R107768	2	Drain Plug	-
56	R556658	1	Shim	TK = 0.38 mm
57	RE594842	1	Adapter Fitting	-
58	RE571325	1	Seal	-
59	51M7085	1	O-Ring	19 X 2 mm
60	RE190805	1	Diagnostic Coupling	-
61	R550876	1	Valve Spool	-
62	RE574665	1	Solenoid Valve	R2 Proportional Solenoid Valve Y640
62	RE574665	1	Solenoid Valve	R1 Proportional Solenoid Valve Y628
63	R566162	1	Gasket	-
64	R106663	2	O-Ring	-

Manifold, Lower Rear, W/ MFWD (100097 - )

Нет текстового описания
