Открытый узел

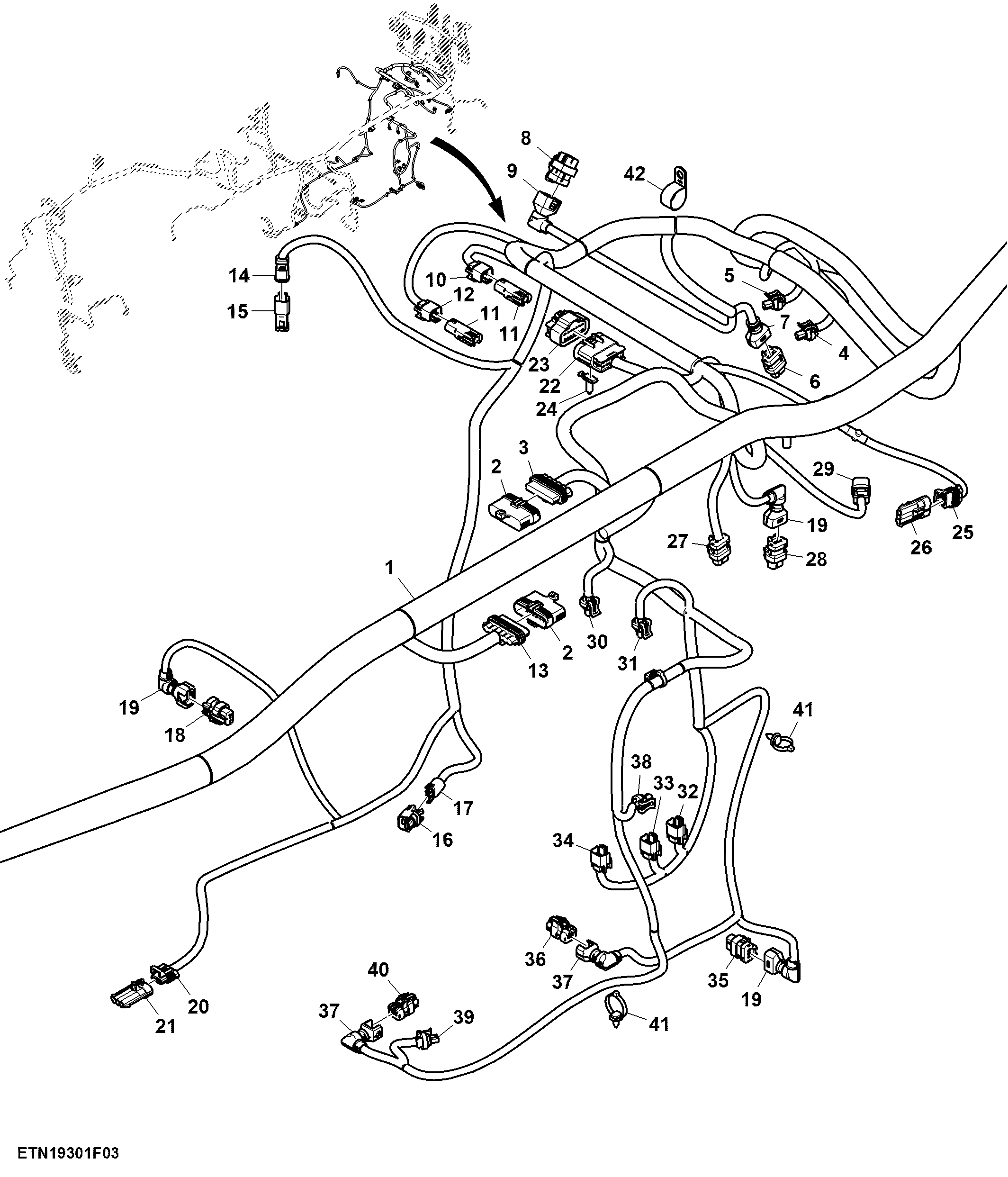

Chassis Wiring Harness Connectors, MFWD W/ AutoTrac™, T2 Engine (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE579212	1	Wiring Harness	-
2	57M8611	2	Electrical Connector Assy	-
3	57M8326	1	Electrical Connector Assy	-
3	57M10432	1	Elec.Connect Locking Device	-
3	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
3	57M9406	1	Elec. Connector Accessory	SPK02, Splice Pack 2
4	57M8625	1	Elec. Connector Housing	B255, Rear Right Brake Pressure
4	57M8624	1	Elec.Connect Locking Device	-
4	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
5	57M8625	1	Elec. Connector Housing	B256, Rear Left Brake Pressure
5	57M8624	1	Elec.Connect Locking Device	-
5	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
6	57M9780	1	Elec. Connector Housing	X721A, Draft Sensor
6	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
7	57M9838	1	Elec. Connector Accessory	-
8	57M9786	1	Elec. Connector Housing	B698, Rockshaft Pos
8	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
9	57M10229	1	Elec. Connector Accessory	-
10	57M8924	1	Elec. Connector Housing	Y613, CSC Susp Up
10	57M8633	2	Elec. Connector Accessory	-
10	RWA11099	1	Repair Wire Assembly	Cavity A, B
11	57M9222	2	Elec. Connector Housing	-
12	57M8924	1	Elec. Connector Housing	Y614, CSC Susp Down
12	57M8633	2	Elec. Connector Accessory	-
12	RWA11099	1	Repair Wire Assembly	Cavity A, B
13	57M9406	1	Elec. Connector Accessory	SPK02, Splice Pack 2
13	RWA11089	1	Repair Wire Assembly	CavityA, B, C, D, E, F
13	57M8326	1	Electrical Connector Assy	-
13	57M10432	1	Elec.Connect Locking Device	-
14	57M8639	1	Elec. Connector Housing	Y615, CSC Damping
14	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
15	57M8022	1	Elec.Connect Locking Device	-
15	57M8023	1	Elec. Connector Housing	-
16	57M8924	1	Elec. Connector Housing	Y500, Rear PTO Solenoid
16	57M8633	1	Elec. Connector Accessory	-
16	57M9222	1	Elec. Connector Housing	-
16	RWA11099	1	Repair Wire Assembly	Cavity A, B
17	57M11380	1	Elec. Connector Accessory	-
18	57M9780	1	Elec. Connector Housing	B717, Hyd Charge Press
18	57M9784	1	Elec. Connector Housing	-
18	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
19	57M9847	3	Elec. Connector Accessory	-
20	57M7255	1	Elec. Connector Housing	X201A, Radar Interconnect
20	57M7290	1	Elec. Connector Accessory	-
20	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
21	57M7257	1	Elec. Connector Housing	-
22	RWA11103	1	Repair Wire Assembly	Cavity G, H, A, P
22	RWA11098	1	Repair Wire Assembly	Cavity B, C, D, M, E, F, J, K, L, N
22	57M9522	1	Elec. Connector Housing	X059A, Trailer Brakes
22	57M10627	2	Elec. Connector Accessory	-
23	57M8920	1	Elec. Connector Housing	-
24	57M8910	1	Clip	-
25	57M7255	1	Elec. Connector Housing	B308, CSC Cab Position Sensor
25	57M7290	2	Elec. Connector Accessory	-
25	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
26	57M7257	1	Elec. Connector Housing	-
27	57M9780	1	Elec. Connector Housing	B517, Primary Wheel Speed
27	57M9784	1	Elec. Connector Housing	-
27	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
28	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
28	57M9784	1	Elec. Connector Housing	-
28	57M9780	1	Elec. Connector Housing	B516, Secondary Wheel Speed
29	57M8924	1	Elec. Connector Housing	Y666, Rear Diff Lock
29	57M8633	1	Elec. Connector Accessory	-
29	RWA11099	1	Repair Wire Assembly	Cavity A, B
30	57M8625	1	Elec. Connector Housing	B261, Pump Pressure 1
30	57M8624	1	Elec.Connect Locking Device	-
30	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
31	57M8625	1	Elec. Connector Housing	B262, Pump Pressure 2
31	57M8624	1	Elec.Connect Locking Device	-
31	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
32	RWA11099	1	Repair Wire Assembly	Cavity A, B
32	57M8633	1	Elec. Connector Accessory	-
32	57M8924	1	Elec. Connector Housing	Y747, Steer 1 Off
33	57M9210	1	Elec. Connector Housing	Y749, Steer 1 Right
33	57M8633	1	Elec. Connector Accessory	-
33	RWA11099	1	Repair Wire Assembly	Cavity A, B
34	57M9210	1	Elec. Connector Housing	Y748, Steer 1 Left
34	57M8633	1	Elec. Connector Accessory	-
34	RWA11099	1	Repair Wire Assembly	Cavity A, B
35	57M9780	1	Elec. Connector Housing	B555, Diff Case Oil Presence Sensor
35	57M9784	1	Elec. Connector Housing	-
35	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
36	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
36	57M9779	1	Elec. Connector Housing	-
36	57M9775	1	Elec. Connector Housing	B696-1, Rear PTO Speed-1
37	57M9846	2	Elec. Connector Accessory	-
38	57M8625	1	Elec. Connector Housing	Backup Pump Pressure
38	57M8624	1	Elec.Connect Locking Device	-
38	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
39	57M8625	1	Elec. Connector Housing	B552, Hydraulic Oil Filter Restriction Sensor
39	57M8624	1	Elec.Connect Locking Device	-
39	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
40	57M9773	1	Elec. Connector Housing	B694, Hyd Oil Temp
40	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
41	RE258807	27	Tie Band	-
42	57M9857	2	Clamp	-

Chassis Wiring Harness Connectors, MFWD W/ AutoTrac™, T2 Engine (2/3)

Нет текстового описания
