Открытый узел

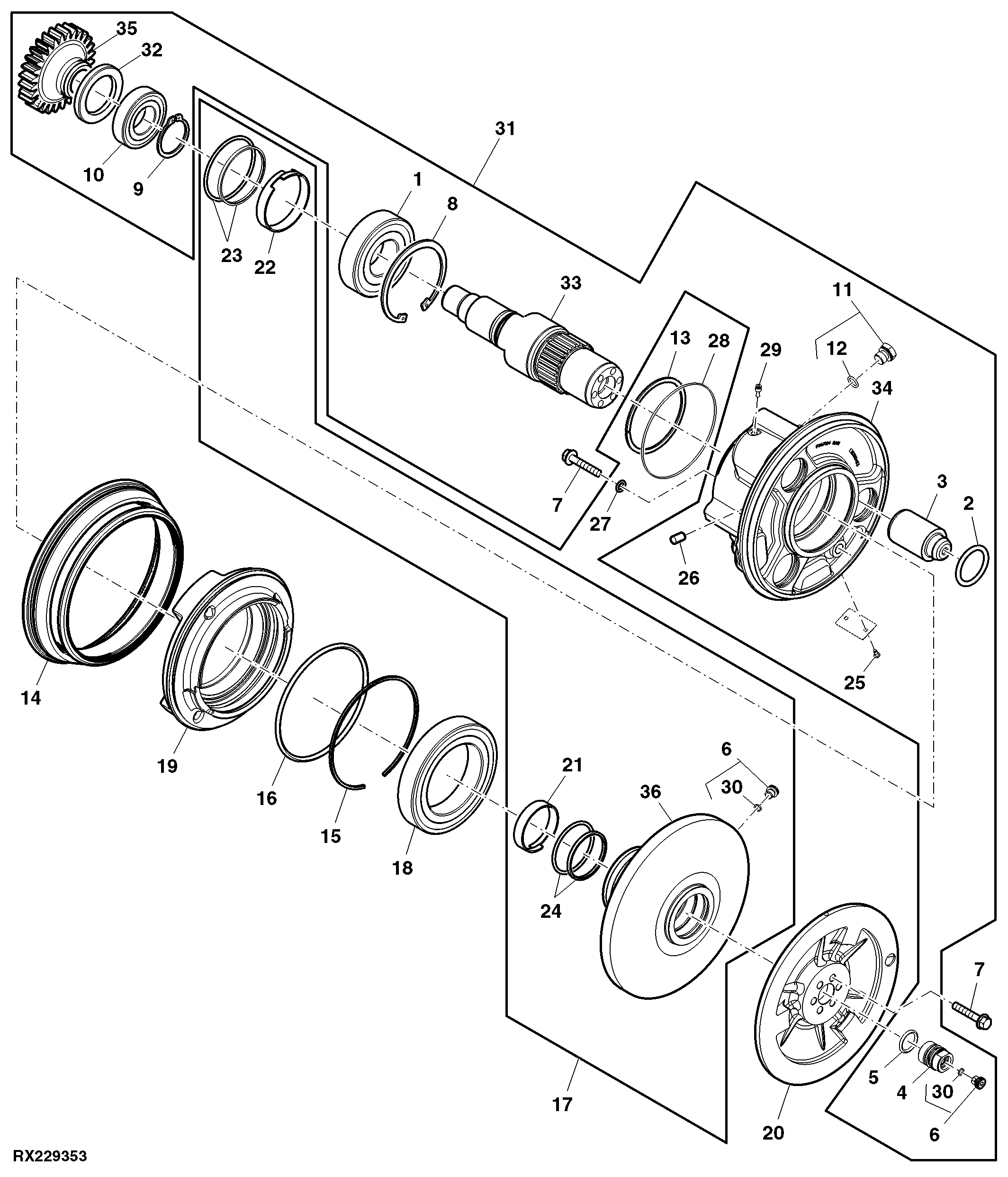

Fan Drive, Driver Assembly, Variable Speed, 9.0 L Engine, Sheave Assembly, IT4

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE346079	1	Ball Bearing	SUB FOR RE308210
2	R326674	3	O-Ring	-
3	R326617	3	Piston	-
4	R325840	1	Fitting Plug	-
5	R495R	1	O-Ring	-
6	RE336324	4	Drain Plug	USE WITH R335472
6	58M5575	2	Lubrication Fitting	USE WITH R545118
7	19M10012	7	Screw	M8 X 45
8	40M7285	1	Snap Ring	-
9	40M7180	1	Snap Ring	-
10	RE346081	1	Ball Bearing	SUB FOR RE308209
11	64M5003	1	Drain Plug	-
12	51M7041	1	O-Ring	11.300 X 2.200 mm
13	A1402R	1	Snap Ring	-
14	R551372	1	Boot	SUB FOR R267263
15	R318428	1	Snap Ring	-
16	R279025	1	O-Ring	-
17	RE558427	1	Sheave Assembly	ORDER COMPONENTS ORDER R545118 ;INCLUDES R335472, R335491, R335492, RE300797, RE300803 AND (2) RE336324, R545118
17	R545118	1	Half Sheave	ALSO ORDER R335491, R335492, RE300797, RE300797, RE346082, (2) 58M5575
18	RE346082	1	Ball Bearing	SUB FOR RE308211
19	R345108	1	Shift Collar	SUB FOR APPL R277447
20	R306157	1	Half Sheave	-
21	R302459	1	Wear Ring	Plastic USE WITH R302314
21	R335491	1	Wear Ring	Steel USE WITH R335472
22	R335492	1	Wear Ring	Steel USE WITH R335472
22	R302460	1	Wear Ring	Plastic USE WITH R302314
23	RE300797	1	Seal	-
24	RE300803	1	Seal	-
25	37H44	2	Screw	0.154" X 3/8"
26	R98527	1	Filter	-
27	N307886	1	O-Ring	-
28	F37010045	1	O-Ring	-
29	AT107509	1	Plug	-
30	51M7039	4	O-Ring	8.100 X 1.600 mm
31	RE337483	1	Driver	ORDER RE557717
31	RE557717	1	Fan Drive	ORDER RE578435
31	RE578435	1	Fan Drive	-
32	RE308406	1	Seal	-
33	R335470	1	Shaft	ORDER RE557717
34	RE588025	1	Housing	INCLUDES AT107509; SUB FOR RE576830 OR R333483
35	R308404	1	Gear	Z=28, ORDER RE557717
36	R302314	1	Half Sheave	ORDER RE558427
36	R545118	1	Half Sheave	SUB FOR R335472; ALSO ORDER (2) 58M5575, RE300803, RE300797, R335491, R335492 AND RE346082

Fan Drive, Driver Assembly, Variable Speed, 9.0 L Engine, Sheave Assembly, IT4

Нет текстового описания
