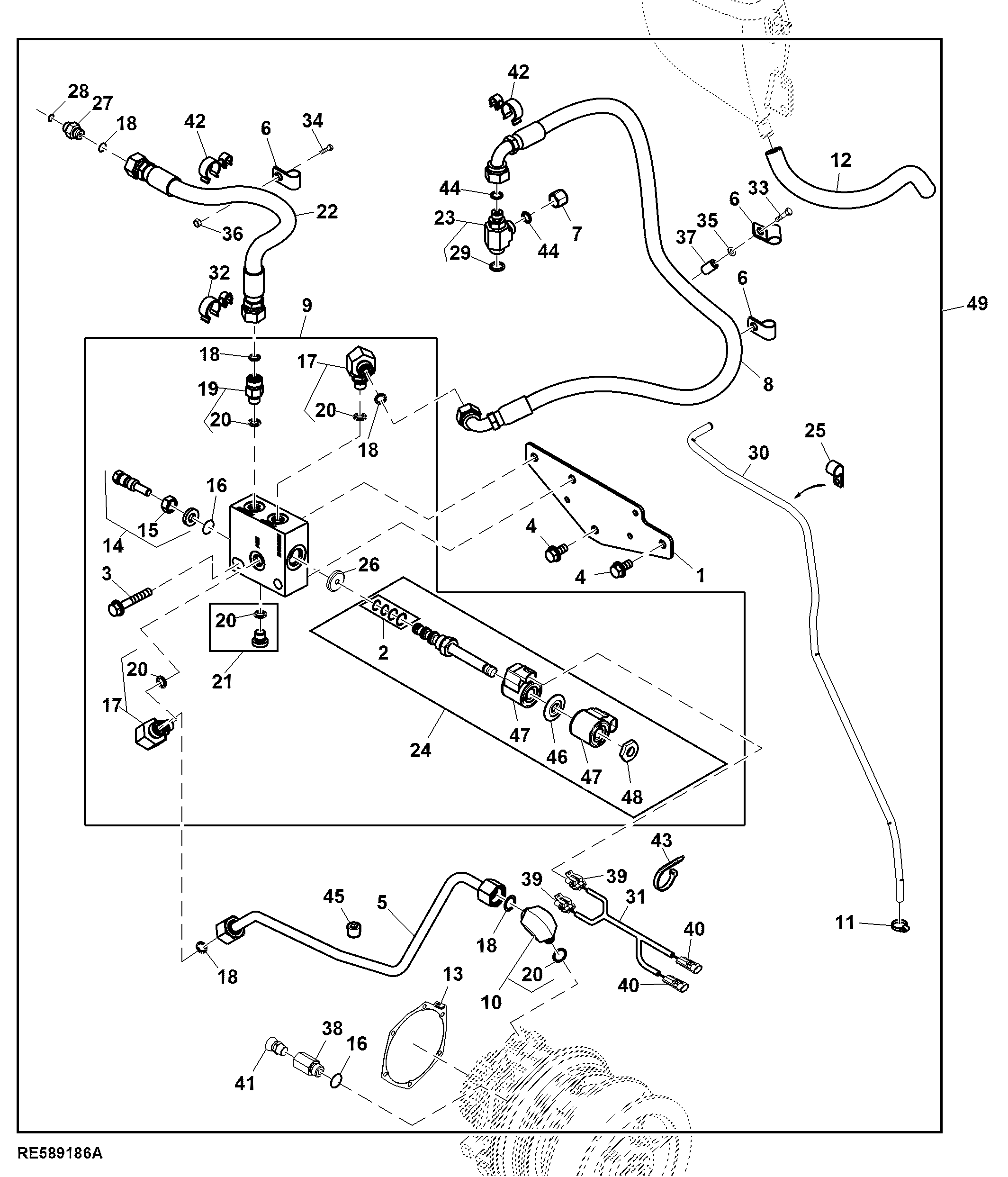

Repair Kit, Fan Driver Hose and Valve, PST, 9L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE284942	1	Bracket	-
2	F433465	1	Seal Kit	-
3	19M7800	2	Screw	M8 X 50
4	19M7865	2	Screw	M8 X 16
5	RE284468	1	Oil Tube	Valve To Drive
6	AH97280	3	Clip	-
7	38H1416	1	Fitting	-
8	RE311113	1	Hydraulic Hose	Supply
9	RE268241	1	Flow Control Hyd. Valve	-
10	38H5016	1	Elbow Fitting	-
11	R196590	1	Hose Clamp	-
12	R267645	1	Hose	Deaeration Tank
13	R272886	1	Gasket	-
14	RE42567	1	Fitting Plug	-
15	R27296	1	Nut	-
16	R26286	2	O-Ring	-
17	38H5022	2	Elbow Fitting	-
18	T77613	5	O-Ring	-
19	38H5008	1	Adapter Fitting	-
20	51M7040	5	O-Ring	9.300 X 2.200 mm
21	RE46686	1	Fitting Plug	-
22	RE311114	1	Hydraulic Hose	Return
23	38H5065	1	Tee Fitting	-
24	RE242062	1	Solenoid Valve	-
25	R73291	1	Clamp	-
26	R292405	1	Orifice	-
27	38H5012	1	Adapter Fitting	-
28	51M7043	1	O-Ring	15.300 X 2.200 mm
29	51M7041	1	O-Ring	11.300 X 2.200 mm
30	RE274066	1	Oil Tube	Engine Ventilator
31	RE281033	1	Chassis Wiring Harness	-
32	Z102278	1	Clamp	-
33	19M7873	1	Screw	M8 X 110
34	21M7572	1	Socket Head Screw	M8 X 20
35	24M7055	1	Washer	8.400 X 16 X 1.600 mm
36	14M7298	1	Flange Nut	M8
37	VG11629	1	Spacer	-
38	H93915	1	Adapter Fitting	-
39	57M7256	2	Elec. Connector Housing	-
40	57M7254	2	Elec. Connector Housing	-
41	RE62981	1	Pressure Relief Valve	-
42	L171496	2	Clamp	-
43	R105388	4	Tie Band	-
44	T77857	2	O-Ring	-
45	RE71255	1	Pipe Plug	Engine Block
46	-	1	Part 46	-
47	AT195144	2	Solenoid Valve Coil	-
48	T188305	1	Nut	-
49	RE589186	1	Repair Kit	ALSO ORDER RE587430

Repair Kit, Fan Driver Hose and Valve, PST, 9L Engine
