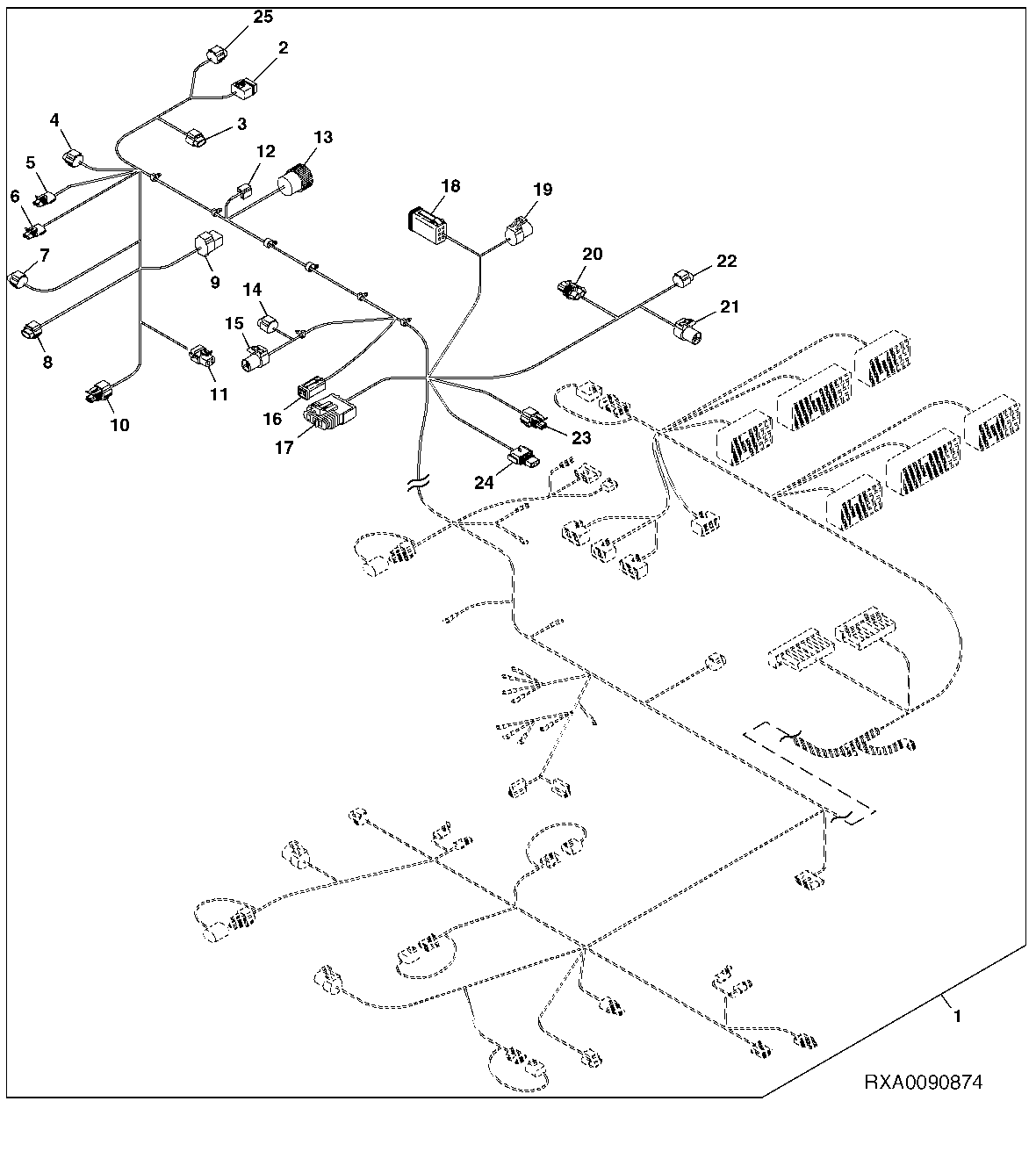

CHASSIS WIRING HARNESS CONNECTORS (1/3) (NAV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE267863	1	Chassis Wiring Harness	-
1	RE250960	1	Chassis Wiring Harness	(SUB FOR RE211492)
2	57M8555	1	Elec. Connector Seal	-
2	57M8552	1	Elec. Connector Housing	DELPHI TORQUE MOTOR
3	57M8924	1	Elec. Connector Housing	EGR FRESH AIR
3	57M8633	1	Elec. Connector Accessory	-
4	57M8924	1	Elec. Connector Housing	COOLENT TEMPERATURE
4	57M8633	1	Elec. Connector Accessory	-
5	57M7254	1	Elec. Connector Housing	FAN SPEED UP VALVE
5	57M7289	1	Elec.Connect Locking Device	-
6	57M7254	1	Elec. Connector Housing	FAN SLOW DOWN VALVE
6	57M7289	1	Elec.Connect Locking Device	-
7	57M8924	1	Elec. Connector Housing	FAN SPEED SENSOR
7	57M8633	1	Elec. Connector Accessory	-
8	57M8407	1	Elec. Connector Housing	RAIL PRESSURE
8	57M8417	1	Elec.Connect Locking Device	-
9	57M8400	1	Electrical Connector Assy	FUEL TEMPERATURE
10	57M8924	1	Elec. Connector Housing	ENGINE CAM SENSOR
10	57M8633	1	Elec. Connector Accessory	-
11	57M8403	1	Elec. Connector Housing	PRESSURE CONTROL VALVE 1
12	57M8812	1	Elec. Connector Housing	ETHER SOLENOID
13	R520439	1	Elec. Connector Accessory	FUEL INJECTOR
14	57M8924	1	Elec. Connector Housing	EGR MIXED AIR
14	57M8633	1	Elec. Connector Accessory	-
15	57M8625	1	Elec. Connector Housing	MAP SENSOR
15	57M8624	1	Elec.Connect Locking Device	-
16	57M8635	1	Elec. Connector Housing	BORG WARNER VGT ACTUATOR
16	57M8016	1	Elec.Connect Locking Device	-
17	57M8542	1	Elec. Connector Housing	BORG WARNER SPEED SENSOR
18	57M8634	1	Elec. Connector Housing	RAYCOR FUEL FILTER CONTROL
18	57M8013	1	Elec.Connect Locking Device	-
19	57M8625	1	Elec. Connector Housing	FUEL PRESSURE SENSOR
19	57M8624	1	Elec.Connect Locking Device	-
20	57M7256	1	Elec. Connector Housing	WATER IN FUEL SENSOR
20	57M7289	1	Elec.Connect Locking Device	-
21	57M8625	1	Elec. Connector Housing	OIL PRESSURE
21	57M8624	1	Elec.Connect Locking Device	-
22	57M8924	1	Elec. Connector Housing	ENGINE CRANK SENSOR
22	57M8633	1	Elec. Connector Accessory	-
23	57M8924	1	Elec. Connector Housing	COMPRESSOR INLET TEMPERATURE
23	57M8633	1	Elec. Connector Accessory	-
24	R78053	1	Electrical Connector Assy	ENGINE AIR FILTER RESTRICTION SWITCH
25	57M8612	1	Elec. Connector Housing	EGR EXHAUST
25	57M8633	1	Elec. Connector Accessory	-

CHASSIS WIRING HARNESS CONNECTORS (1/3) (NAV)
