Cab Wiring Harness Connectors (3/3) (European Version)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE277128	1	Cab Wiring Harness	SUB FOR RE264040
1	RE250944	1	Cab Wiring Harness	-
2	57M7255	1	Elec. Connector Housing	LT Clearance Lamp
2	57M7290	1	Elec. Connector Accessory	-
2	R104846	3	Elec. Connector Terminal	Cavity A, B, C
2	57M9215	3	Elec. Connector Seal	Cavity A, B, C
3	57M7258	2	Elec. Connector Seal	Cavity A, B
3	R104846	2	Elec. Connector Terminal	Cavity A, B
3	57M7289	1	Elec.Connect Locking Device	-
3	57M7254	1	Elec. Connector Housing	Left Beltline Flood
4	57M7260	1	Elec. Connector Housing	A/C System
4	57M7291	1	Electrical Connector Assy	-
4	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
4	57M9215	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
5	57M9237	1	Clip	-
6	57M7696	1	Elec. Connector Housing	A/C System
6	57M9215	1	Elec. Connector Seal	Cavity C
6	57M9563	2	Elec. Connector Cable Seal	Cavity E, G
6	57M7588	2	Elec. Connector Terminal	Cavity E, G
6	57M7258	4	Elec. Connector Seal	Cavity A, B, D, F
6	R104846	5	Elec. Connector Terminal	Cavity A, B, C, D, F
6	57M7698	1	Elec. Connector Terminal	-
7	57M10605	1	Elec. Connector Housing	TECU Connector J1
8	57M10615	1	Elec. Connector Housing	TECU Connector J2
9	57M10607	1	Elec. Connector Housing	TECU Connector J3
10	57M10606	1	Elec. Connector Housing	FCC 32 Way Clinch J3
11	57M10615	1	Elec. Connector Housing	FCC 32 Way Clinch J2
12	57M10605	1	Elec. Connector Housing	FCC 32 Way Clinch J1
13	57M7621	1	Elec.Connect Locking Device	-
13	N282069	2	Elec. Connector Terminal	Cavity 1, 2
13	57M8023	1	Elec. Connector Housing	Implement Can Power Connector
14	57M8021	1	Electrical Connector Assy	Implement Can Power Connector
14	57M8022	1	Elec.Connect Locking Device	-
14	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
15	57M8017	1	Elec. Connector Housing	Implement CAN Cab Connector
15	57M7619	1	Elec.Connect Locking Device	-
15	57M8164	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
16	57M8015	1	Electrical Connector Assy	Implement CAN Cab Connector
16	57M8016	1	Elec.Connect Locking Device	-
16	57M8165	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
17	57M7840	1	Elec. Connector Housing	Service Advisor
17	57M7295	1	Elec.Connect Locking Device	-
17	R104846	4	Elec. Connector Terminal	Cavity A, B, C, D
17	57M7258	4	Elec. Connector Seal	Cavity A, B, C, D
18	57M7293	1	Elec. Connector Housing	Radar For ISO 11786
18	57M9219	1	Elec. Connector Seal	Cavity A
18	57M7285	1	Elec. Connector Terminal	Cavity A
18	57M7295	1	Elec.Connect Locking Device	-
19	57M7294	1	Elec. Connector Housing	Radar
19	57M7295	1	Elec.Connect Locking Device	-
19	57M7297	1	Elec. Connector Terminal	Cavity A
19	57M9219	1	Elec. Connector Seal	Cavity A
20	57M7294	1	Elec. Connector Housing	GPS
20	57M7295	1	Elec.Connect Locking Device	-
20	57M7297	1	Elec. Connector Terminal	Cavity A
20	57M9219	1	Elec. Connector Seal	Cavity A
21	57M7254	1	Elec. Connector Housing	Dome Lamp
21	57M7258	2	Elec. Connector Seal	Cavity A, B
21	57M7289	1	Elec.Connect Locking Device	-
21	R104846	2	Elec. Connector Terminal	Cavity A, B
22	57M8825	1	Elec. Connector Housing	Dome Lamp Switch
22	57M9199	3	Elec. Connector Terminal	Cavity A, B, C
23	AH140135	1	Socket	RHC Roof Lamp
24	57M8944	1	Elec. Connector Housing	Outer Roof Connector
24	57M8943	1	Elec.Connect Locking Device	-
24	57M8621	20	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23
24	57M7400	20	Elec. Connector Seal	Cavity 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 23
24	57M8942	1	Elec. Connector Terminal	Cavity 1
24	57M7399	1	Elec. Connector Seal	Cavity 1
25	57M9215	1	Elec. Connector Seal	Cavity E
25	57M7258	5	Elec. Connector Seal	Cavity A, B, C, D, F
25	57M7296	1	Elec. Connector Accessory	-
25	57M7261	1	Elec. Connector Housing	Outer Roof CAN Conn
25	R104846	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
26	57M7256	1	Elec. Connector Housing	Beacon Light
26	57M7289	1	Elec.Connect Locking Device	-
26	57M7252	2	Elec. Connector Terminal	Cavity A, B
26	57M9215	1	Elec. Connector Seal	Cavity A
26	57M7258	1	Elec. Connector Seal	Cavity B
27	57M8781	1	Elec. Connector Housing	Radio Connector
27	57M9127	1	Elec. Connector Terminal	-
28	57M8271	1	Electrical Connector Assy	Loader Lights and Front Roof Floods
28	57M8328	1	Electrical Connector Assy	-
28	57M7592	1	Elec. Connector Terminal	Cavity E
28	R104923	2	Elec. Connector Terminal	Cavity F, G
29	57M7255	1	Elec. Connector Housing	RT Clearance Lamp
29	57M9215	2	Elec. Connector Seal	Cavity B, C
29	57M7258	1	Elec. Connector Seal	Cavity A
29	57M7290	1	Elec. Connector Accessory	-
29	R104846	3	Elec. Connector Terminal	Cavity A, B, C
30	57M7254	1	Elec. Connector Housing	Right Beltline Flood
30	57M7289	1	Elec.Connect Locking Device	-
30	R104846	2	Elec. Connector Terminal	Cavity A, B
30	57M7258	2	Elec. Connector Seal	Cavity A, B
31	57M7713	1	Electrical Connector Assy	ISO 11786 Connector
31	57M7718	1	Electrical Connector Assy	-
31	57M7548	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
32	57M9231	1	Elec. Connector Housing	Reconfigurable Display (USE WITH (7) 57M9388_Pins, (7) Z56915_Seals)
32	57M9230	1	Elec. Connector Terminal	Cavity L, M, N, P, R, U, V
33	57M7719	1	Electrical Connector Assy	-
33	57M7551	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
33	57M7714	1	Electrical Connector Assy	Corner Post Tach
34	57M8843	1	Elec. Connector Housing	Business Band Radio Prewire
34	57M7725	1	Electrical Connector Assy	-
34	57M7500	3	Elec. Connector Terminal	Cavity A, B, C
35	57M7600	2	Elec. Connector Terminal	Left Door Switch
36	57M8875	1	Elec. Connector Terminal	-
37	57M8875	1	Elec. Connector Terminal	-
38	57M8871	1	Elec. Connector Terminal	-
39	RE186986	1	Junction Block	-
40	57M8872	1	Elec. Connector Terminal	Radio Ground
41	57M7557	1	Elec. Connector Terminal	Inner Roof Ground

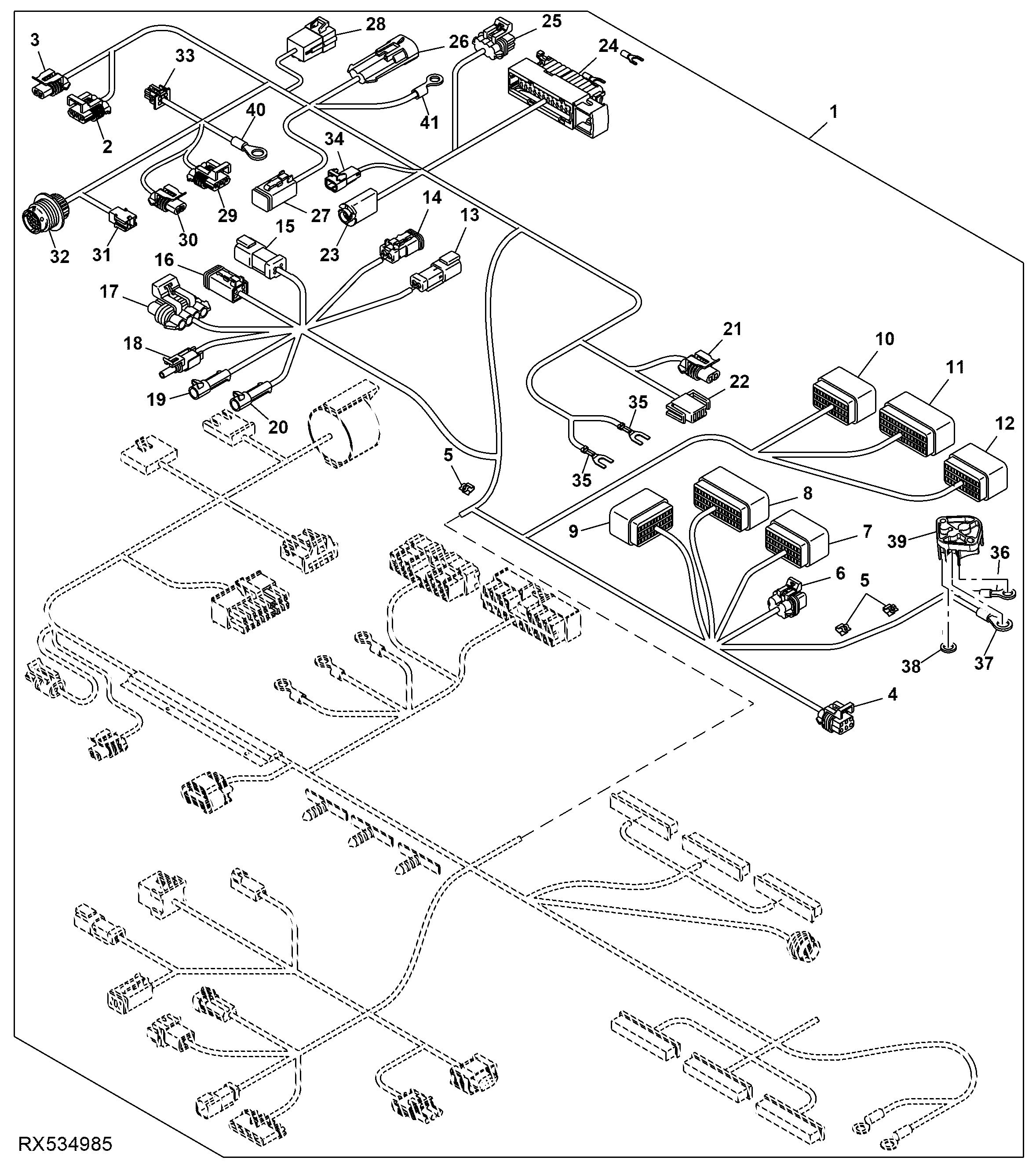

Cab Wiring Harness Connectors (3/3) (European Version)
