Открытый узел

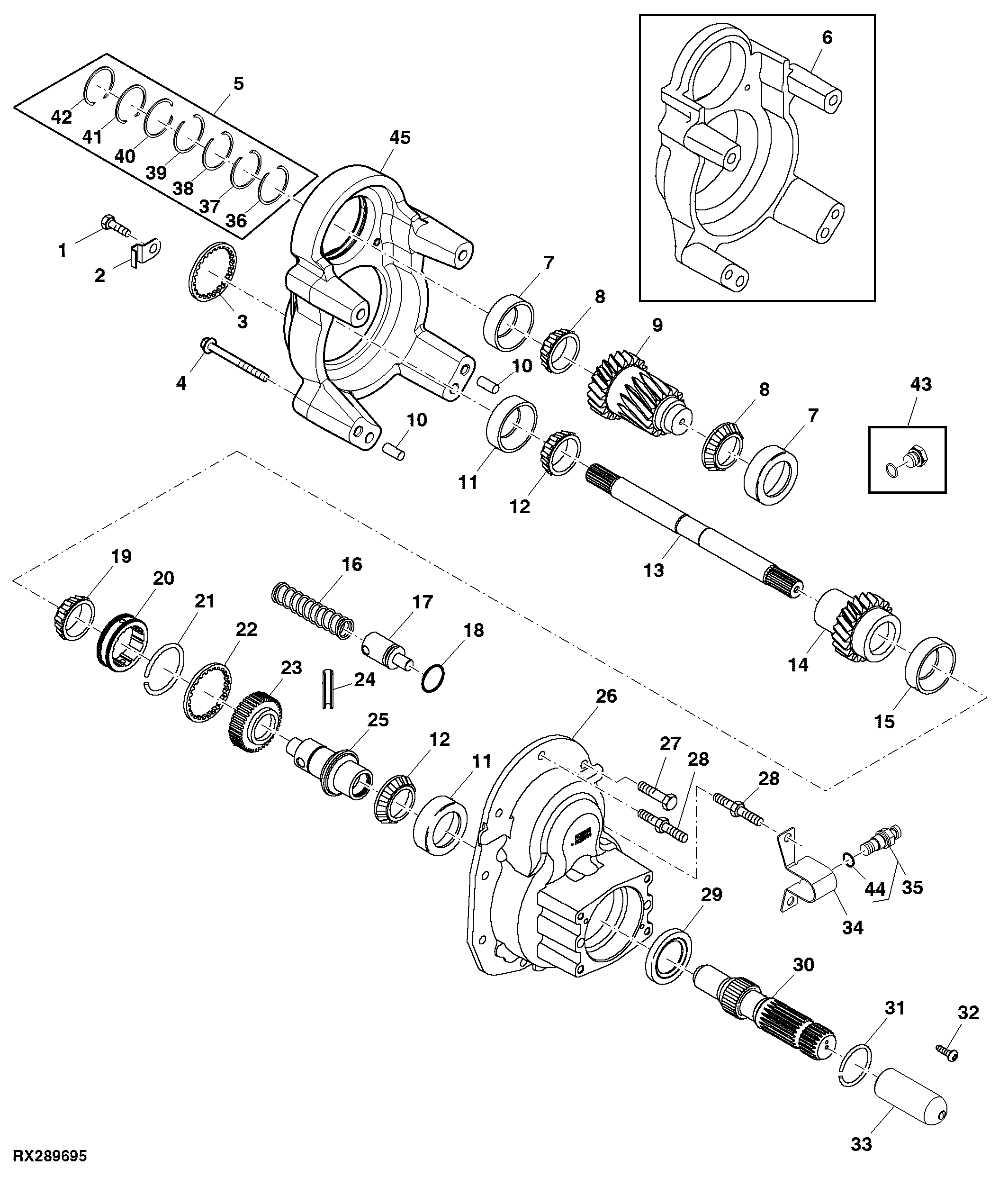

Optional PTO, 1 3/4" Shaft, 1000 RPM

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R88246	1	Cap Screw	8M X 16
2	R106839	1	Retainer	-
3	R106843	1	Ring	-
4	19M7810	4	Screw	M10 X 80, HS 10.9, USE WITH R122907
4	19M7836	4	Screw	M10 X 110, HS 10.9, USE WITH R558159
5	RE326360	1	Ring Kit	(SUB FOR RE231391) (INCLUDESR95155)
6	R122907	1	Housing	ORDER R558159; ALSO ORDER 19M7836
7	JD8247	2	Bearing Cup	-
8	JD10527	2	Bearing Cone	-
9	R122906	1	Gear	-
10	44M7070	2	Dowel Pin	-
11	JD7292	2	Bearing Cup	-
12	JD7378	2	Bearing Cone	-
13	R215988	1	Shaft	-
14	R126104	1	Gear	-
15	JD7424	1	Bearing Cup	-
16	R93485	1	Compression Spring	-
17	R125086	1	Plunger	-
18	R122750	1	O-Ring	-
19	JD8100	1	Bearing Cone	-
20	R125178	1	Splined Coupling	-
21	L33035	1	Snap Ring	-
22	R95784	1	Thrust Washer	-
23	R125980	1	Gear	-
24	34M7074	1	Spring Pin	8 X 75 mm
25	R266971	1	Shaft	(SUB FOR R122908)
26	R214264	1	Housing	-
27	19M7786	5	Screw	M10 X 30, HS 10.9
28	R126027	4	Stud	M10 X 60, HS 10.9
29	RE38725	1	Seal	-
30	R562721	1	Shaft	1-3/4", SUB FOR R266970 OR R122910
31	R38221	1	SNAP RING	-
32	R27329	2	Screw	(European Version)
33	R121280	1	Sleeve	(European Version)
34	R309531	1	Shield	-
35	RE519144	1	Sensor	PTO Speed Sensor
36	-	1	Part 37	TK = 1.95 mm, ORDER RE326360
37	-	1	Part 38	TK = 2.08 mm, ORDER RE326360
38	-	1	Part 39	TK = 2.34 mm, ORDER RE326360
39	-	1	Part 40	TK = 2.47 mm, ORDER RE326360
40	R95155	1	Snap Ring	TK = 2.6 mm
41	-	1	Part 42	TK = 2.73 mm, ORDER RE326360
42	-	1	Part 43	TK = 2.21 mm, ORDER RE326360
43	RE517370	1	Fitting	-
44	51M7044	1	O-Ring	17.300 X 2.200 mm
45	R558159	1	Housing	-

Optional PTO, 1 3/4" Shaft, 1000 RPM
