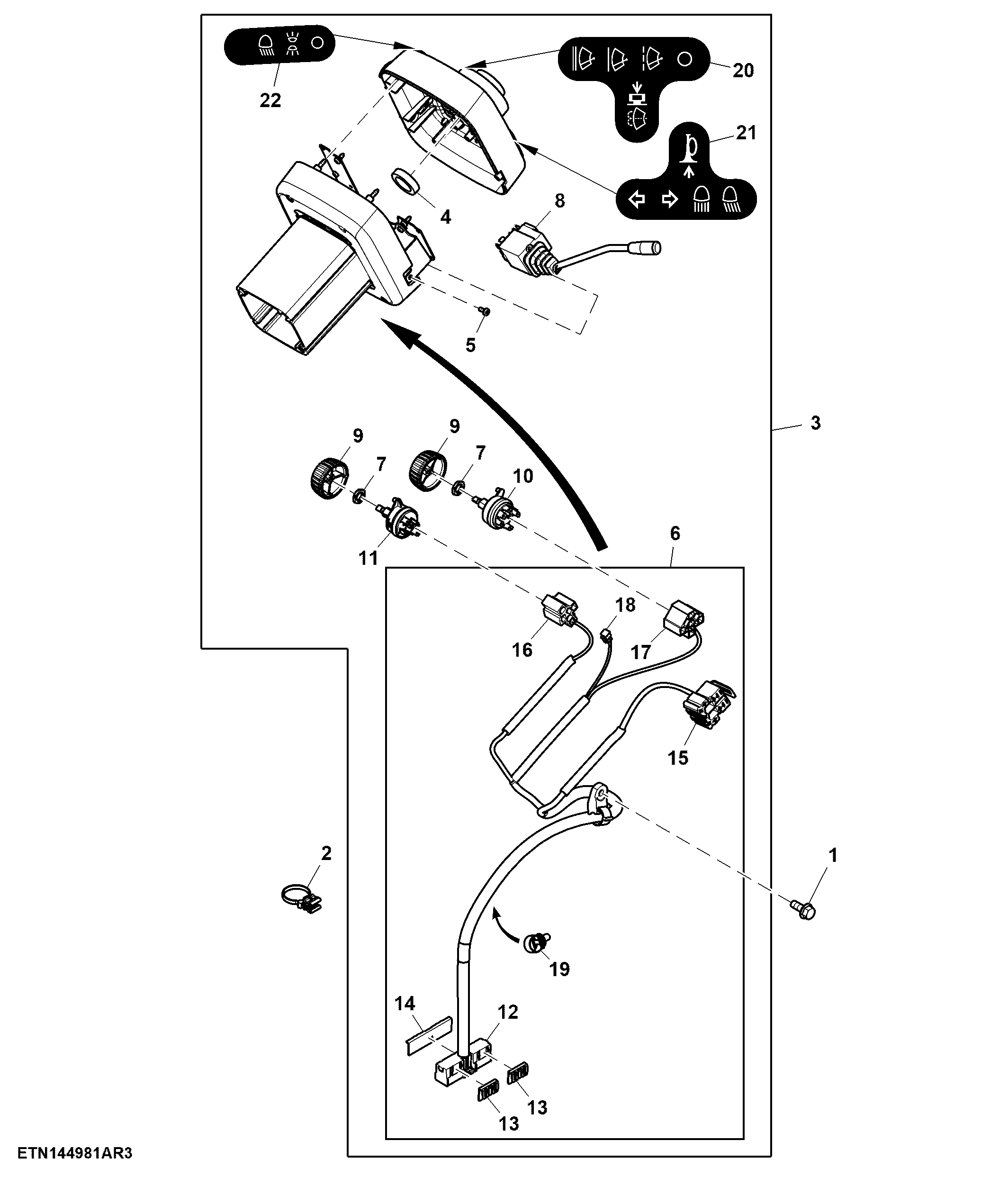

Steering Column Module, W/ RH Reverser, IVT™/ PST

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	1	Screw	M8 X 20
2	AH225363	1	Clip	-
3	RE579257	1	Module	-
4	R117220	1	Washer	-
5	21M7495	2	Screw	M4 X 10
6	RE597844	1	Turn Signal Wiring Harness	SUB FOR RE579652
7	R44165	2	Lock Nut	ORDER H204146
7	H204146	2	Nut	-
8	RE278352	1	Switch	-
9	RE271200	2	Knob	-
10	RE46634	1	Switch	-
11	AL220958	1	Rotary Switch	-
12	57M8858	1	Elec. Connector Housing	XX101, Front Console to Steering Column Harness Interconnect
12	RWA10664	1	Repair Wire Assembly	Cavity C, D, E, F, G, H, J, K,L, N, P, R, S, T
13	57M8859	2	Elec.Connect Locking Device	-
14	57M8860	1	Elec.Connect Locking Device	-
15	57M9668	1	Elec. Connector Housing	S103, Turn Signal Switch Assembly
15	RWA11177	1	Repair Wire Assembly	Cavity 31, 31B, 49A, 56, 56A, 56D, L, R, B
16	57M8758	1	Elec. Connector Housing	S102, Road Light Switch
16	57M8757	4	Elec.Connect Locking Device	-
16	RWA10655	1	Repair Wire Assembly	-
17	RE46735	1	Electrical Connector Assy	S201, Front Wiper Switch S201
17	RWA10655	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, B
18	57M11510	1	Elec. Connector Housing	A189, Inverter Backlighting Steering Column
18	RWA11146	1	Repair Wire Assembly	-
19	RE258807	1	Tie Band	-
20	R272799	1	Label	-
21	R272797	1	Label	-
22	R556158	1	Label	-

Steering Column Module, W/ RH Reverser, IVT™/ PST
