Roof Wiring Harness, Automatic Temperature Control (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587087	1	Roof Wiring Harness	-
2	57M11351	1	Elec. Connector Housing	X110, Cab Inline Connector
2	RWA11101	1	Repair Wire Assembly	Cavity A3, A4, A5, D5
2	57M11242	2	Elec. Connector Accessory	-
2	RWA11096	1	Repair Wire Assembly	Cavity A1, A2, A7, A8, B1, B10, B11, B12, B3, B4, B5, B6, B7, B8, B9, C1, C10, C11, C12, C2, C3, C4, C5, C8, C9, D1, D2, D7, D8
3	57M8843	1	Elec. Connector Housing	X113, Business Band Device
3	57M7725	1	Electrical Connector Assy	-
3	RWA11085	1	Repair Wire Assembly	Cavity B, C, A
4	57M11351	1	Elec. Connector Housing	X115, Roof Connector
4	57M11242	2	Elec. Connector Accessory	-
4	RWA11101	1	Repair Wire Assembly	Cavity A5
4	RWA11096	1	Repair Wire Assembly	Cavity A1, A2, A7, A8, B1, B10, B11, B3, B4, B5, B6, B7, B8, B9, C1, C11, C12, C2, C3, C4, C8, C9, D1, D2, D7, D8
5	57M8206	1	Elec. Connector Housing	M220, Electric Water Valve
5	RWA11080	1	Repair Wire Assembly	Cavity 10, 5, 6, 8, 9
6	57M8924	1	Elec. Connector Housing	B219, Roof Temperature Sensor
6	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	1	Repair Wire Assembly	Cavity A, B
7	57M8549	1	Elec. Connector Housing	A220, Control Head
7	RWA11109	1	Repair Wire Assembly	Cavity 11, 14, 15, 16, 18, 19, 20, 21, 22, 23, 24, 25, 27, 31, 32, 5, 6, 8, 9
8	57M9229	8	Clip	-
9	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
9	57M9776	1	Elec. Connector Housing	Tractor Can Terminating Device
10	57M11134	1	Elec. Connector Housing	-
11	RE258807	16	Tie Band	-
12	57M8865	1	Elec. Connector Terminal	Chassis Ground
13	57M7790	1	Electrical Connector Assy	S241, Right Hand Wiper Switch
13	57M7729	1	Electrical Connector Assy	-
13	RWA11085	1	Repair Wire Assembly	Cavity A, B, C, D, E
14	RWA11085	1	Repair Wire Assembly	Cavity A, B, C, D, E
14	57M7729	1	Electrical Connector Assy	-
14	57M7790	1	Electrical Connector Assy	S242, Rear Wiper
15	57M8612	1	Elec. Connector Housing	B220, Cab Temperature Sensor
15	57M8633	1	Elec. Connector Accessory	-
15	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M8933	1	Elec. Connector Housing	Y220, HVAC Air Mode Actuator
16	RWA11109	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 6
17	57M8761	1	Elec. Connector Housing	S100, Dome Lamp Switch
17	RWA11134	1	Repair Wire Assembly	Cavity 2, 3, 4
18	RWA10678	1	Repair Wire Assembly	Cavity 1
18	57M9199	1	Elec. Connector Terminal	LH Door Switch (Power)
19	57M9199	1	Elec. Connector Terminal	LH Door Switch (Ground)
19	RWA10678	1	Repair Wire Assembly	Cavity 1
20	57M9127	1	Elec. Connector Terminal	A85, Radio Connector
20	RWA10850	1	Repair Wire Assembly	Cavity A1, A3, A4, A5, B1, B2, B3, B4, B5, B6, B7, B8
20	RWA11139	1	Repair Wire Assembly	Cavity A7
21	57M8721	1	Elec. Connector Accessory	-
22	57M7256	1	Elec. Connector Housing	S308, Power Mirror Inline
22	57M9712	1	Elec. Connector Accessory	-
22	RWA11082	1	Repair Wire Assembly	Cavity A, B
23	57M8910	2	Clip	-
24	57M7254	1	Elec. Connector Housing	B217, Evaporator Temperature Sensor
24	57M9712	1	Elec. Connector Accessory	-
24	RWA11083	1	Repair Wire Assembly	Cavity A, B
25	57M8174	1	Elec. Connector Housing	B212, Right Front Speaker
25	57M7724	1	Electrical Connector Assy	-
25	RWA11086	1	Repair Wire Assembly	Cavity 1, 2
26	RWA11086	1	Repair Wire Assembly	Cavity 1, 2
26	57M8174	1	Elec. Connector Housing	B213, Left Front Speaker
26	57M7724	1	Electrical Connector Assy	-
27	57M8625	1	Elec. Connector Housing	B224, Refrigerant Pressure Sensor
27	57M8624	1	Elec.Connect Locking Device	-
27	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
28	57M8612	1	Elec. Connector Housing	B218, Duct and Case Temperature Sensor
28	57M8633	1	Elec. Connector Accessory	-
28	RWA11097	1	Repair Wire Assembly	Cavity A, B
29	RWA11086	1	Repair Wire Assembly	Cavity 1, 2
29	57M7724	1	Electrical Connector Assy	-
29	57M8174	1	Elec. Connector Housing	B214, Right Rear Speaker
30	57M8174	1	Elec. Connector Housing	B215, Left Rear Speaker
30	57M7724	1	Electrical Connector Assy	-
30	RWA11086	1	Repair Wire Assembly	Cavity 1, 2
31	57M12241	1	Elec. Connector Housing	Y221, PWM Motor
31	RWA11140	1	Repair Wire Assembly	Cavity 1, 3
31	RWA11141	1	Repair Wire Assembly	Cavity 2
32	57M8958	1	Elec. Connector Housing	M211, Pressurizer Blower Motor
32	57M8129	1	Elec. Connector Terminal	-
32	RWA11088	1	Repair Wire Assembly	Cavity A, B
33	57M9555	1	Clip	-

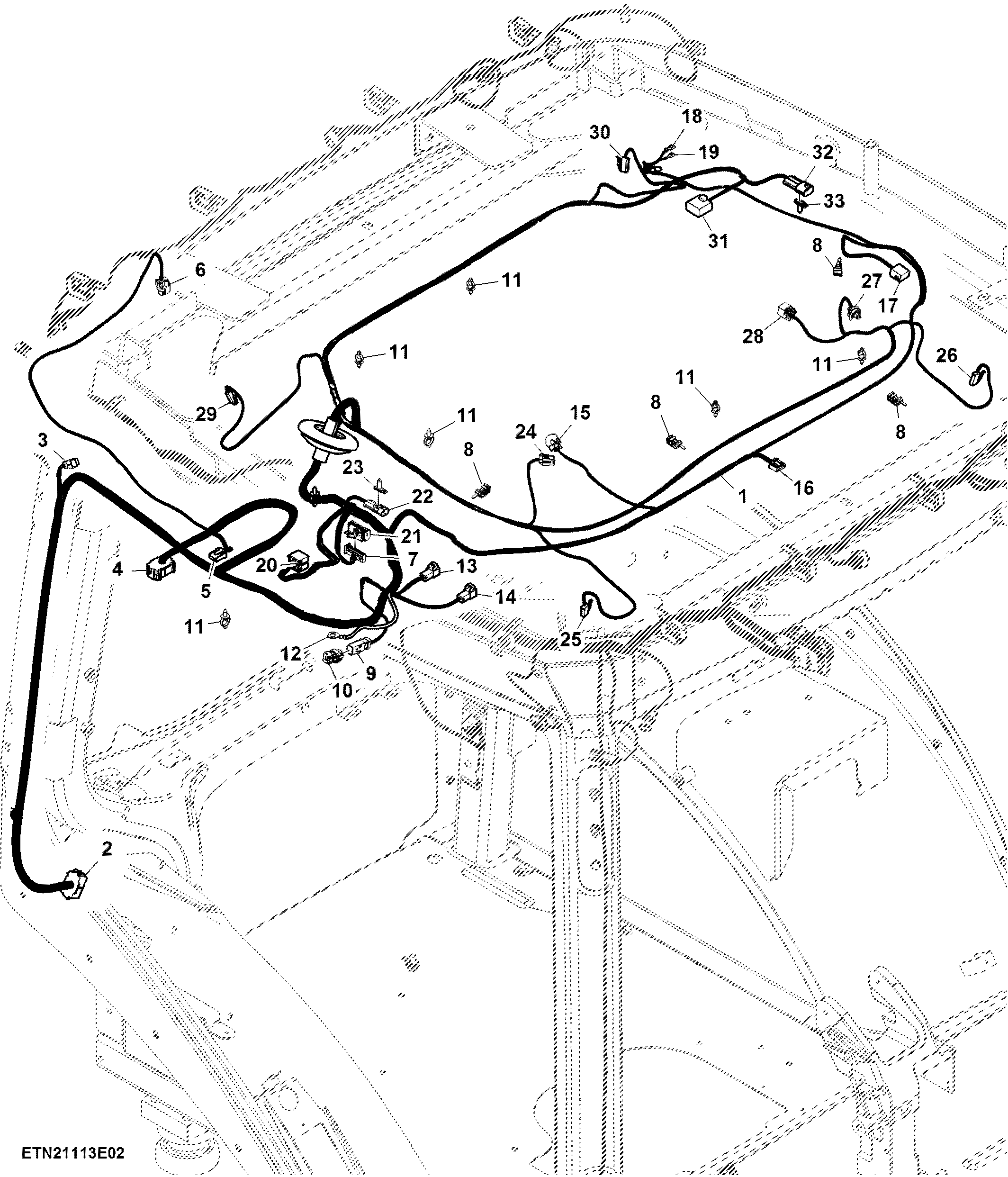

Roof Wiring Harness, Automatic Temperature Control (2/2)
