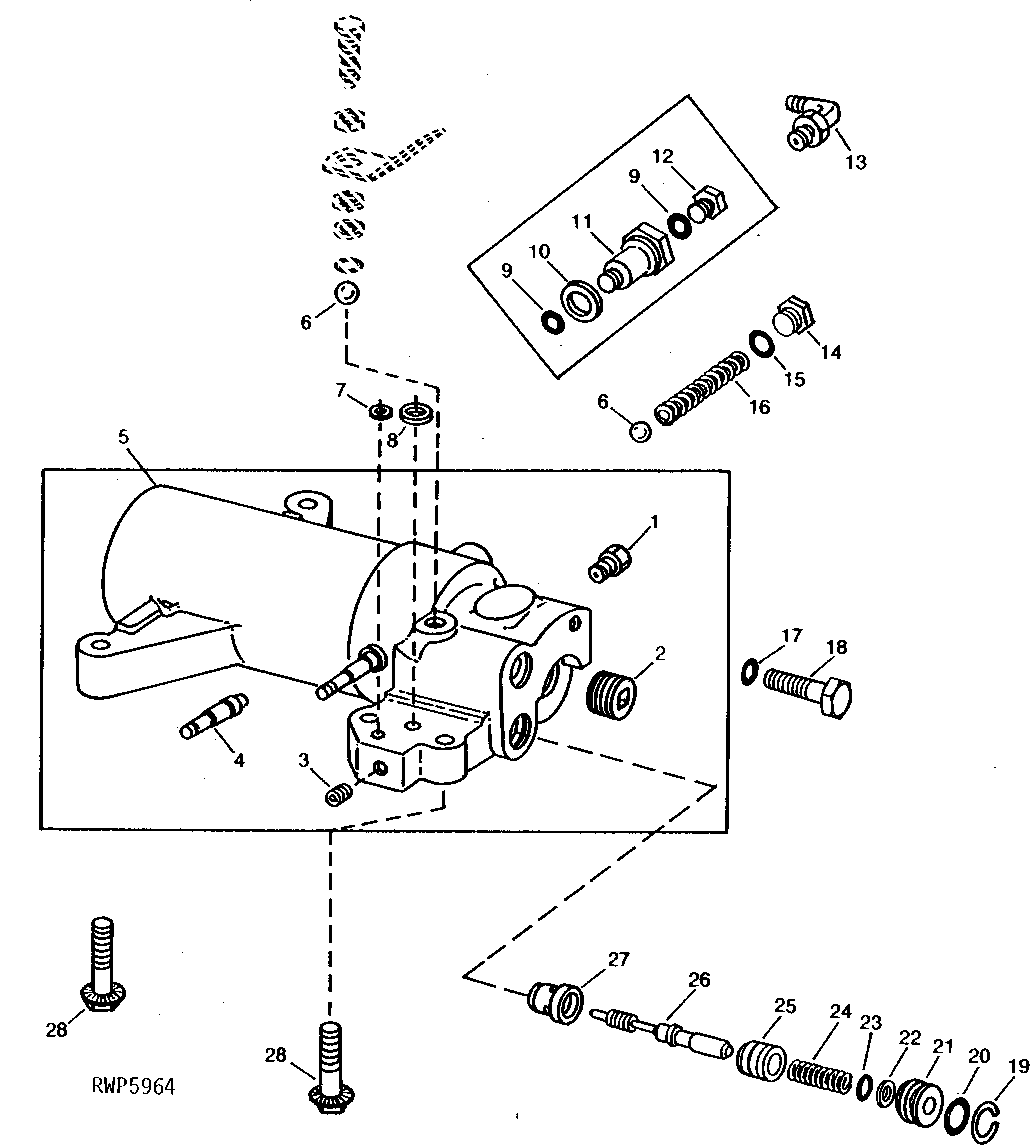

ROCKSHAFT CYLINDER AND VALVE HOUSING [01J06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT21781	1	VALVE	-
2	15H562	1	Pipe Plug	1"
3	15H559	1	Pipe Plug	1/4"
4	T22469	1	PIN	-
5	AT24396	1	HOUSING	(SUB AL40887, F1791R, L41383, L41384, (2) L41536, L41726 AND L62507)
5	AR67095	1	HOUSING	(MARKED R56501) (SUB AL40887, F1791R, L41383, L41384, L41536, L41726 AND L62507) (ALSO ORDER R27218 AND R26448)
5	AL40887	1	HOUSING	(MARKED L41724)
6	D2361R	1	Ball	-
7	A4847R	1	Washer	-
8	F2741R	1	Packing	-
9	R26448	2	O-Ring	13MM (1/2") (USE WITH AR67095)
9	L41536	1	O-Ring	(USE WITH AL40887)
10	F1791R	1	WASHER	(USE WITH AR67095 OR AL40887)
11	T21638	1	ADAPTER FITTING	(USE WITH AR67095)
11	L41538	1	Fitting	(USE WITH AL40887)
12	R27218	1	Fitting Plug	9/16", (USE WITH AR67095)
12	L41726	1	Pipe Plug	M16, (USE WITH AL40887)
13	-	1	Part 18	(NOT USED THIS APPLICATION)
14	L41384	1	Pipe Plug	M18, (USE WITH AL40887)
14	T22867	1	Drain Plug	(USE WITH AR67095)
15	R26375	1	O-Ring	(USE WITH AR67095)
15	L41383	1	Ring	(USE WITH AL40887)
16	F2962R	2	SPRING ASSEMBLY	(SUB FOR R26974)
16	F3322R	1	SPRING	-
17	R26286	1	O-Ring	-
18	19H1765	1	Cap Screw	3/8" X 1-3/4"
19	M3265T	1	SNAP RING	-
20	L55204	2	O-RING	(SUB FOR R65548)
21	T24485	2	PLUG	-
22	R31136	2	BACK-UP RING	-
23	R10093	2	O-Ring	-
24	R49648	2	SPRING	-
25	T24540	2	SLEEVE	(SUB FOR T19526)
26	R54969	2	VALVE SPOOL	(SUB R54969 AND T28538)
26	T28537	2	VALVE	(SUB R54969)
27	T24483	2	VALVE SEAT INSERT	(SUB R54969 AND T28538)
27	T28538	2	VALVE SEAT INSERT	-
28	R48593	4	CAP SCREW	-

ROCKSHAFT CYLINDER AND VALVE HOUSING [01J06]
