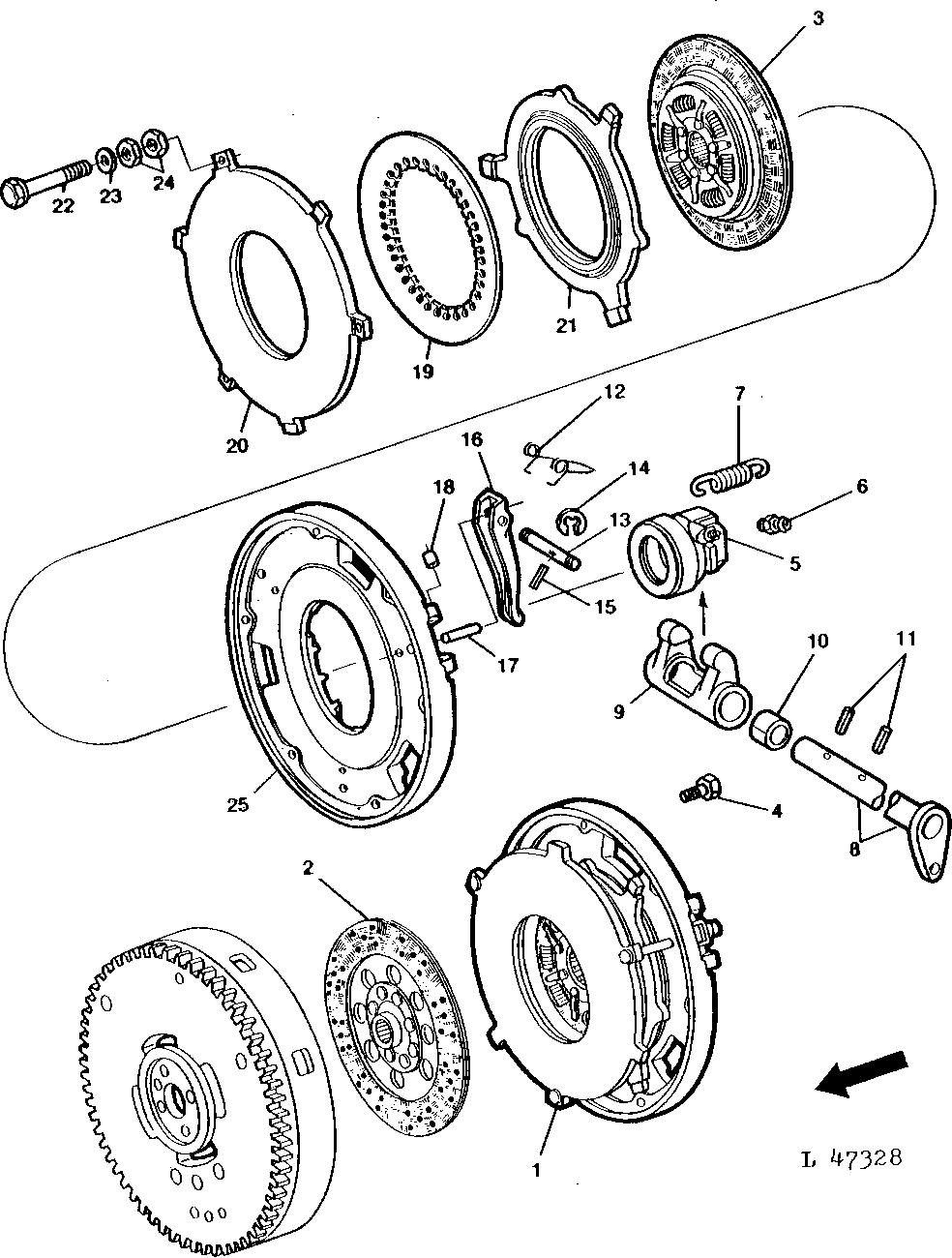

DUAL STAGE CLUTCH (COLLAR SHIFT TRANSMISSION) [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL40882	1	CLUTCH	(SUB AL55140)
1	AL18714	1	CLUTCH	(3 BOLT) (INCLUDES T28230, T28222, T28226, T28221, T28224, T28225, T29647, T29646, T29648, T29650, T29649 AND T29353) (SUB FOR AT27793) (SUB AL55140)
2	AR66924	1	CLUTCH DISK	(TRANSMISSION DRIVE) (SUB FOR AT25481, AT20061 OR AT32208)
3	AL19092	1	CLUTCH	(PTO DRIVE) (SUB FOR AT21675)
4	19H3219	6	Cap Screw	3/8" X 1-3/8"
5	AT24699	1	BEARING	(SUB AL30777)
6	T27178	1	LUBRICATION FITTING	-
7	T21450	1	EXTENSION SPRING	-
8	AT19837	1	SHAFT	(SUB FOR AR101631)
9	T21999	1	FORK	-
10	T21446	1	BUSHING	-
11	34H353	2	SPRING PIN	3/8" X 1-3/4"
12	T28230	3	SPRING	(A) (B)
13	T28222	3	PIN	(A) (B)
14	L38513	6	SNAP RING	(A) (B) (SUB FOR T28231)
15	34M7010	3	Spring Pin	(B) 3 X 20 MM
15	T28226	3	SPRING PIN	(A)
16	T28221	3	LEVER	(A) (SUB AL60271)
16	L41389	3	LEVER	(B) (SUB AL60271)
17	T28224	3	PIN	(A) (SUB L55216)
17	L41390	3	PIN	(B)
18	T28225	6	BUSHING	(A) (B)
19	L39302	1	DIAPHRAGM	(A) (B) (SUB FOR T28229, L25750 OR L29246)
20	T29647	1	CLUTCH PLATE	(A) (B)
21	T29646	1	CLUTCH PLATE	(A) (B) (PTO)
22	T29648	3	CAP SCREW	(A)
22	L41388	3	CAP SCREW	(B)
22	L41588	3	COMPRESSION SPRING	(B)
22	L41589	3	WASHER	(B)
23	T29650	3	WASHER	(A) (B)
24	T29649	6	NUT	(A) (B)
25	T29353	1	PLATE	(A) (B)

DUAL STAGE CLUTCH (COLLAR SHIFT TRANSMISSION) [01G03]
