CRANKSHAFT, TIMING GEARS AND MAIN BEARINGS [01B01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT18031	1	CRANKSHAFT	(SUB RE46896)
2	T26565	1	Dowel Pin	(SUB FOR C1220R)
3	T20094	1	Helical Gear	(24 TEETH)
4	26H72	1	Shaft Key	1/8" X 5/8"
5	T23604	1	SHAFT KEY	-
6	T25366	1	PULLEY	(SUB R59915)
7	T20046	1	Oil Slinger	-
8	19H1721	1	CAP SCREW	1/2" X 1-1/2"
9	T20217	1	Washer	-
10	AT18009	1	GEAR	(55 TEETH) (SUB AR91660)
11	T20034	1	Bushing	-
12	AT24252	1	GEAR	(45 TEETH)
12	AT18039	1	GEAR	(45 TEETH) (SUB AT24252)
13	T20034	1	Bushing	-
13	T26321	1	Bushing	-
14	T20036	2	SHAFT	(SUB T26323)
15	T26323	2	SHAFT	-
16	34H283	1	Spring Pin	3/16" X 1-1/8"
17	34H286	1	Spring Pin	3/16" X 1-1/2"
18	19H2644	1	Cap Screw	1/2" X 2-1/2"
18	T26325	2	SCREW	-
19	19H1990	1	Cap Screw	1/2" X 2-1/4"
19	T26327	2	Screw	-
20	T20290	2	SHIM	-
21	T20291	2	WEAR PLATE	-
22	T20038	2	THRUST WASHER	(SUB T26326)
22	T26326	2	THRUST WASHER	-
23	T20037	2	THRUST WASHER	(SUB T26324)
23	T26324	2	THRUST WASHER	-
24	T20136	1	FITTING	-
25	24H1890	1	Washer	19/32" X 1" X 1/4"
26	AT21108	3	BEARING	0.051MM (.002") US, PLAIN (2 HALVES)
26	AT21114	3	BEARING	0.762MM (.030") US, PLAIN (2 HALVES)
26	AT21112	3	BEARING	0.508MM (.020") US, PLAIN (2 HALVES)
26	AT21110	3	BEARING	0.254MM (.010") US, PLAIN (2 HALVES)
26	AT21140	3	Bearing	STD (2 HALVES)
27	AT21139	1	BEARING	STD (2 HALVES)
27	AT21130	1	BEARING	0.051MM (.002") US (2 HALVES)
27	AT21132	1	BEARING	0.254MM (.010") US (2 HALVES)
27	AT21134	1	BEARING	0.508MM (.020") US (2 HALVES)
27	AT21136	1	BEARING	0.762MM (.030") US (2 HALVES)
28	AR67942	1	Seal	(SUB FOR AT21608)
29	T20445	1	PLUG	-

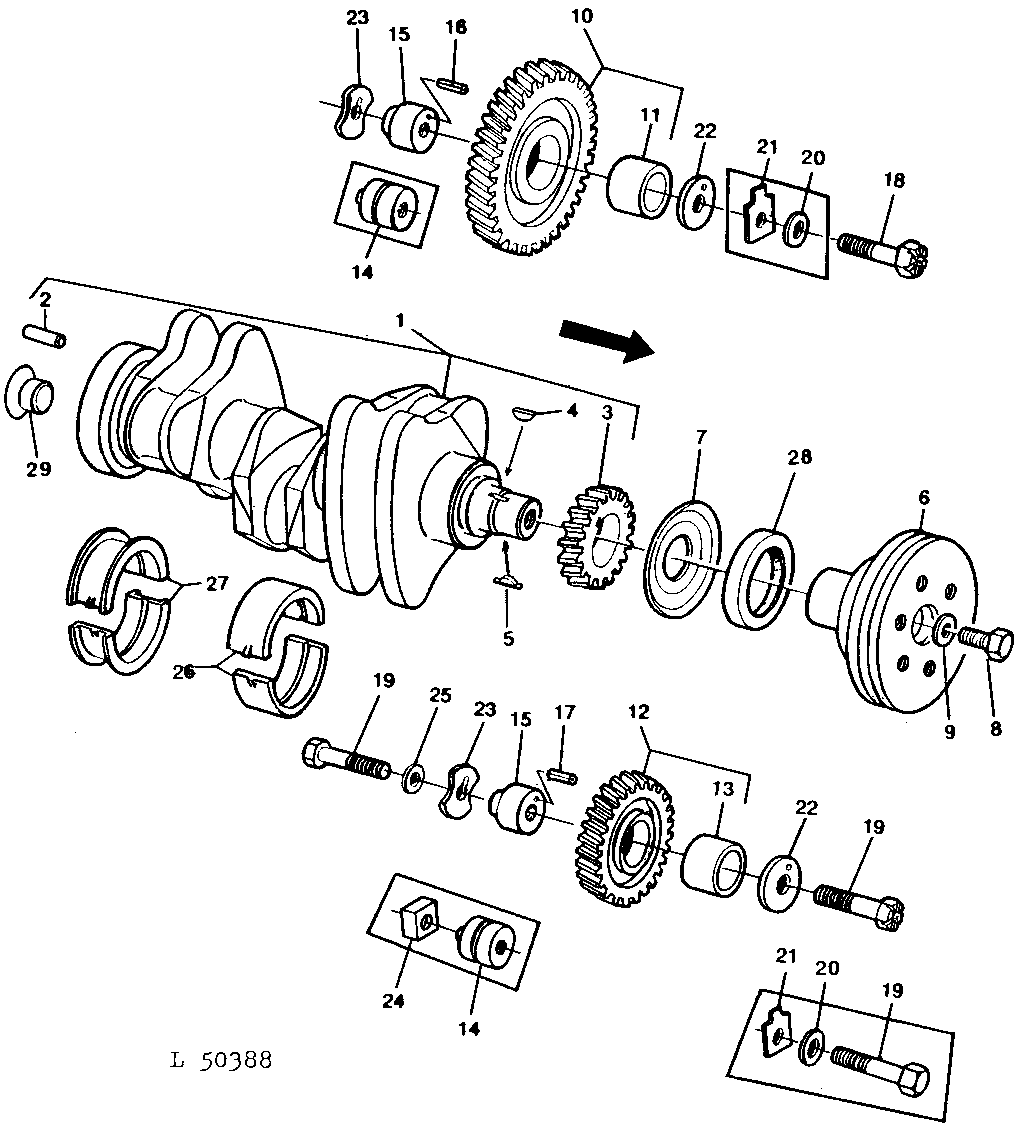

CRANKSHAFT, TIMING GEARS AND MAIN BEARINGS [01B01]
