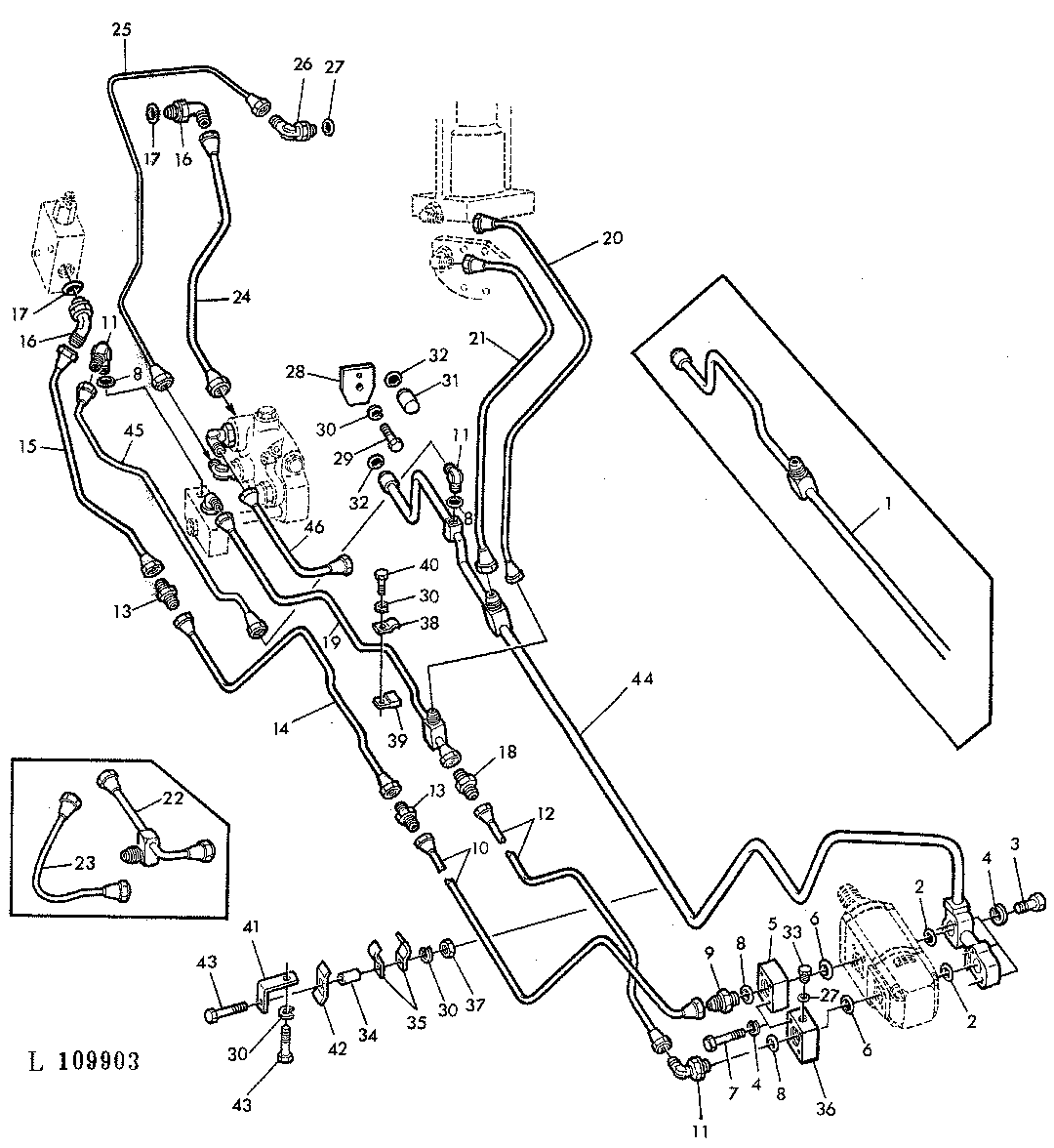

OIL LINES (WITH POWER STEERING) [02F07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR55352	1	OIL LINE	-
2	L53840	2	O-Ring	-
3	19M7374	4	Cap Screw	M6X40
4	12M7012	12	LOCK WASHER	6MM
5	T25780	1	ADAPTER FITTING	REAR
6	L53839	2	O-RING	-
7	19M2841	8	Cap Screw	M6X50
8	R26448	4	O-Ring	-
9	R39249	1	Adapter Fitting	9/16"X3/4"
10	AL28469	1	OIL LINE	FRONT (FOR AR55346) (SUB FOR AT23683)
10	AL36652	1	OIL LINE	FRONT (FOR AL37750)
11	AR26725	3	ELBOW FITTING	9/16"
12	AL36651	1	OIL LINE	(FOR AL37750)
12	AR55348	1	LINE	FRONT
13	R34063	2	Fitting	3/4"
14	AL28483	1	OIL LINE	(SUB FOR AR52342)
15	AL28482	1	OIL LINE	(SUB FOR AR52341)
16	AR26763	2	ELBOW FITTING	3/4"
17	R26375	2	O-Ring	-
18	R27095	1	Fitting	-
19	AR55349	1	LINE	-
20	AR55353	1	LINE	-
21	AR55354	1	LINE	-
22	AR55347	1	OIL LINE	-
23	AR55351	1	LINE	-
24	AT23688	1	LINE	-
25	AT23690	1	OIL LINE	-
26	AR26746	1	Elbow Fitting	3/8"
27	R26287	2	O-Ring	-
28	AT27313	1	RETAINER	-
29	19H2552	1	CAP SCREW	3/8"X1-1/8"
30	12H304	6	Lock Washer	3/8"
31	T25783	1	PLUG	-
32	R1662R	2	WASHER	-
33	R31631	1	DRAIN PLUG	3/8"
34	28H1884	2	Spacer	-
35	R31654	4	CLAMP	-
36	R52653	1	ADAPTER FITTING	FRONT
37	14H812	2	NUT	3/8"
38	L28744	1	Clamp	(SUB FOR R28538)
39	L28745	1	PLATE	(SUB FOR R28539)
40	19H2284	1	Cap Screw	3/8"X7/8"
41	T25782	2	ANGLE	-
42	T25781	2	CLAMP	-
43	19H1801	4	CAP SCREW	3/8"X2"
44	AL36653	1	OIL LINE	(FOR AL37750)
44	AL24495	1	LINE	(FOR AR55346)
45	AL24494	1	LINE	-
46	AT23689	1	LINE	-

OIL LINES (WITH POWER STEERING) [02F07]
