Открытый узел

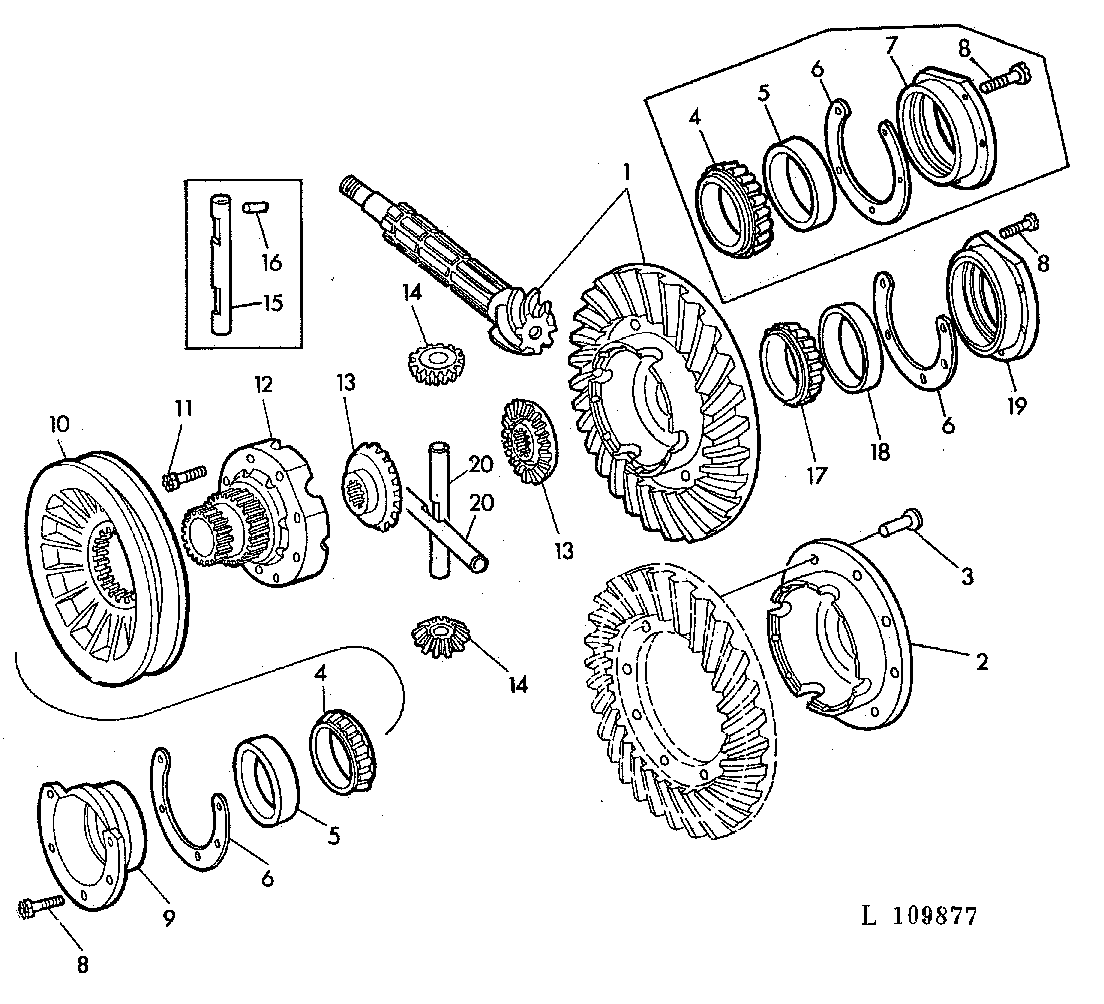

DIFFERENTIAL (WITH 2 DIFFERENTIAL PINIONS) [02D03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL38555	1	Kit	(A) Z=8/35,ASSY,INCL KEYS 2,3 (SUB FOR AT21620, AT21622)
1	AT21620	1	DIFFERENTIAL	(A) Z=8/35,ASSY,INCL KEYS 2,3 (ORD AL38555, JD8206, JD8946, (2) L29226, T21432)
1	AT25401	1	RING GEAR	(B) Z=9/43,ASSY,INCL KEYS 2,3
1	AT25399	1	STEERING GEAR	(B) Z=7/40,ASSY,INCL KEYS 2,3
1	AT25400	1	STEERING GEAR	(B) Z=7/37,ASSY,INCL KEYS 2,3
1	AL39098	1	KIT	(A) Z=9/46,ASSY,INCL KEYS 2,3 (SUB FOR AT24183, AT24186)
1	AL35155	1	KIT	(A) Z=9/43,ASSY,INCL KEYS 2,3 (SUB FOR AT21621, AT21623)
1	AT21621	1	RING GEAR	(A) Z=9/43,ASSY,INCL KEYS 2,3 (ORD AL35155, JD8206, JD8946, (2) L29226, T21432)
2	T24382	1	HOUSING	(ORD JD8206, JD8946, (2) L29226, (8) L40557, T21432, T30253)
2	T30253	1	HOUSING	-
3	L40557	8	RIVET	7/16"X1-11/16" (SUB FOR L29871, 16H1592)
4	JD8147	2	Bearing Cone	(FOR T24382)
4	JD8147	1	Bearing Cone	(FOR T30253)
5	JD7425	2	Bearing Cup	(FOR T24382)
5	JD7425	1	Bearing Cup	(FOR T30253)
6	T29862	1	SHIM	TK=0,5MM(.020") (SUB FOR L25646)
6	T21436	1	SHIM	TK=0,25MM(.010")
6	T21434	1	SHIM	TK=0,08MM(.003")
6	T21435	1	SHIM	TK=0,13MM(.005")
7	T21458	1	BEARING HOUSING W/O BEARING	RH (FOR T24382)
8	T22874	10	BOLT	-
9	T21433	1	BEARING HOUSING W/O BEARING	LH
10	T21596	1	BRAKE DRUM	(C)
11	T21430	8	CAP SCREW	-
12	T21974	1	HOUSING	(ORD R51500, R51501)
12	R51500	1	HOUSING	-
13	T29394	2	BEVEL GEAR	Z=18 (SUB FOR T21971)
14	L29227	2	GEAR	Z=11
14	T21876	2	BEVEL GEAR	Z=11 (ORD (2) L29226, (2) L29227)
15	T21831	1	PINION SHAFT	(ORD (2) L29226, (2) L29227)
16	R30587	1	Dowel Pin	-
17	JD8946	1	Bearing Cone	(FOR T30253)
18	JD8206	1	Bearing Cup	(FOR T30253)
19	T21432	1	BEARING HOUSING W/O BEARING	RH (FOR T30253)
20	L29226	2	SHAFT	(SUB FOR L29228)

DIFFERENTIAL (WITH 2 DIFFERENTIAL PINIONS) [02D03]

Нет текстового описания
