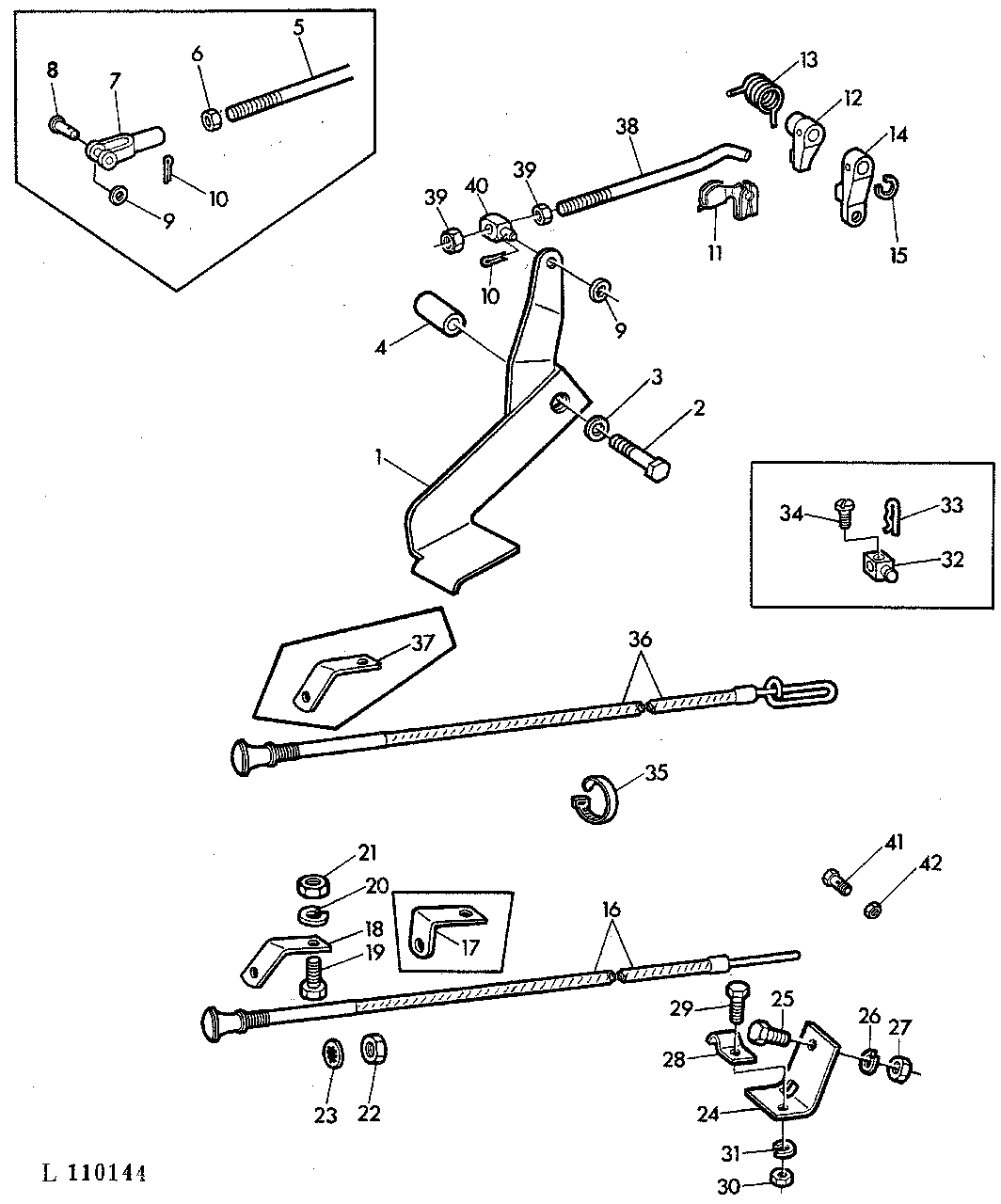

ACCELERATOR PEDAL AND LINKAGE/ENGINE SHUT-OFF CABLE [01D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT20044	1	PEDAL	-
2	19H1765	1	Cap Screw	3/8"X1-3/4"
3	24H1305	1	Washer	13/32"X13/16"X.060"
4	M1339T	1	SPACER	-
5	T22149	1	ROD	-
6	14H649	1	Nut	1/4"
7	M3742T	1	Yoke	-
8	L4667T	1	PIN FASTENER	-
9	24H1286	2	Washer	9/32"X1/2"X.060"
10	11H231	1	COTTER PIN	1/16"X1"
11	T29742	1	CLIP	(SUB FOR R26501)
12	T22150	1	ARM	-
13	T50467	1	SPRING	(SUB FOR T22151)
14	T22240	1	ARM	-
15	F3396R	1	Snap Ring	-
16	AT20931	1	PUSH PULL CABLE	(A) ROTO DIESEL,R.BOSCH
16	AL24155	1	PUSH PULL CABLE	(A) ROTO DIESEL (SUB FOR AT29302)
16	AT29305	1	PUSH PULL CABLE	(A) R.BOSCH
17	T22144	1	BRACKET	-
18	T30525	1	BRACKET	-
19	19H1936	1	Cap Screw	3/8"X3/4"
20	12H304	1	Lock Washer	3/8"
21	14H812	1	NUT	3/8"
22	14H774	1	Nut	3/8"
22	14H934	1	Nut	7/16"
23	12H310	1	Lock Washer	3/8"
23	12H325	1	Lock Washer	7/16"
24	T24401	1	BRACKET	(A) R.BOSCH
25	19H1813	1	CAP SCREW	(A) R.BOSCH,5/16"X5/8"
26	12H303	1	Lock Washer	(A) R.BOSCH,5/16"
27	14H785	1	Nut	(A) R.BOSCH,5/16"
28	R27573	1	Clamp	(A) R.BOSCH
29	19H1948	1	Cap Screw	(A) R.BOSCH,1/4"X3/4"
30	14H850	1	NUT	(A) R.BOSCH,1/4"
31	12H302	1	Lock Washer	(A) R.BOSCH,1/4"
32	R10184	1	SWIVEL	(ORD T29185, 14H850)
33	R10185	1	Spring Locking Pin	(ORD T29185, 14H850)
34	21H1293	1	SCREW	NO.8X5/16"
35	R44302	1	Tie Band	(A) ROTO DIESEL
36	AL18752	1	PUSH PULL CABLE	(A) ROOSA MASTER DP
37	T29658	1	BRACKET	-
38	L31333	1	HOOK BOLT	-
39	14H850	2	NUT	1/4"
40	T22242	1	Swivel	-
41	T29185	1	BOLT	-
42	14H850	1	NUT	1/4"

ACCELERATOR PEDAL AND LINKAGE/ENGINE SHUT-OFF CABLE [01D05]
