Chassis Wiring Harness Connectors (1/3) (MFWD) (Non-Certified)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE267866	1	Chassis Wiring Harness	-
2	57M8924	1	Elec. Connector Housing	MANIFOLD AIR TEMPERATURE
2	57M8633	1	Elec. Connector Accessory	-
3	57M8634	1	Elec. Connector Housing	RAYCOR FUEL FILTER CONTROL
3	57M8013	1	Elec.Connect Locking Device	-
4	57M8924	1	Elec. Connector Housing	COOLENT TEMPERATURE
4	57M8633	1	Elec. Connector Accessory	-
5	57M7254	1	Elec. Connector Housing	FAN SPEED UP VALVE
5	57M7289	1	Elec.Connect Locking Device	-
6	57M7254	1	Elec. Connector Housing	FAN SLOW DOWN VALVE
6	57M7289	1	Elec.Connect Locking Device	-
7	57M8924	1	Elec. Connector Housing	FAN SPEED SENSOR
7	57M8633	1	Elec. Connector Accessory	-
8	57M8407	1	Elec. Connector Housing	RAIL PRESSURE
8	57M8417	1	Elec.Connect Locking Device	-
9	57M8400	1	Electrical Connector Assy	FUEL TEMPERATURE
10	57M8924	1	Elec. Connector Housing	ENGINE CAM SENSOR
10	57M8633	1	Elec. Connector Accessory	-
11	57M8403	1	Elec. Connector Housing	PRESSURE CONTROL VALVE 1
12	57M8812	1	Elec. Connector Housing	ETHER SOLENOID
13	R520439	1	Elec. Connector Accessory	FUEL INJECTOR
14	57M8625	1	Elec. Connector Housing	FUEL PRESSURE SENSOR
14	57M8624	1	Elec.Connect Locking Device	-
15	57M7256	1	Elec. Connector Housing	WATER IN FUEL SENSOR
15	57M7289	1	Elec.Connect Locking Device	-
16	57M8924	1	Elec. Connector Housing	ENGINE CRANK SENSOR
16	57M8633	1	Elec. Connector Accessory	-
17	57M8625	1	Elec. Connector Housing	OIL PRESSURE
17	57M8624	1	Elec.Connect Locking Device	-
18	R78053	1	Electrical Connector Assy	ENGINE AIR FILTER RESTRICTION SWITCH

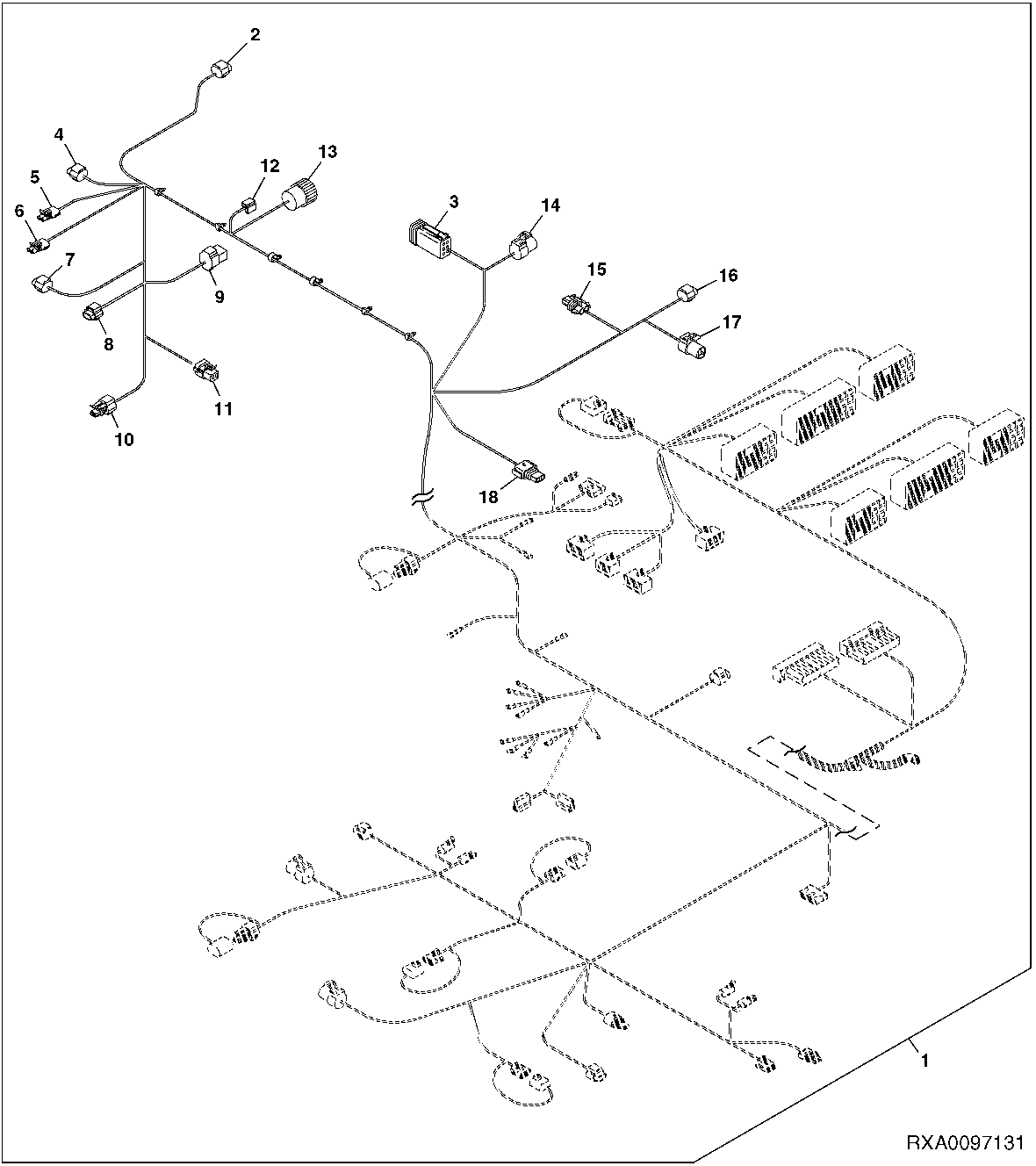

Chassis Wiring Harness Connectors (1/3) (MFWD) (Non-Certified)
