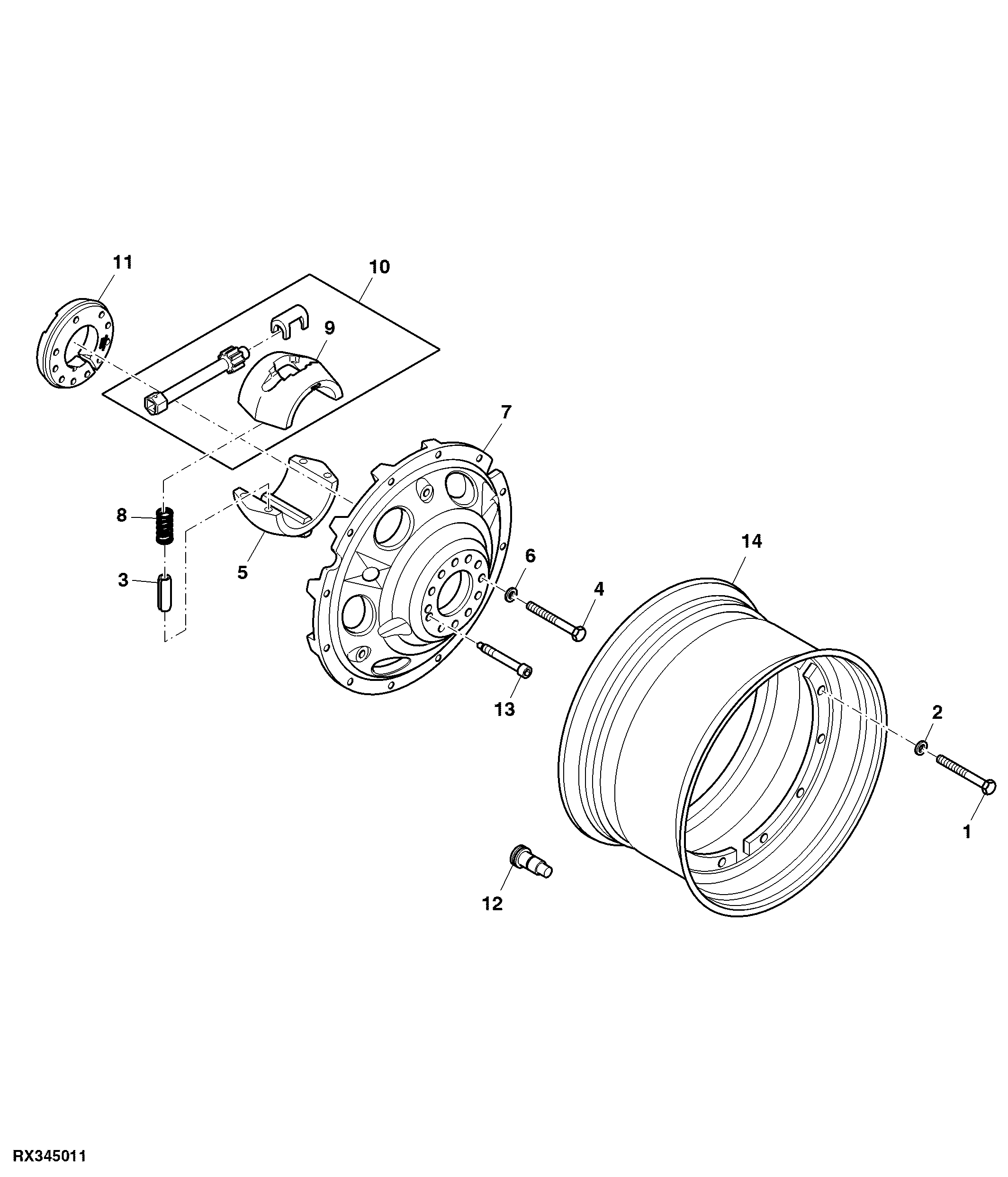

Cast Rear Wheels (Heavy Duty), RH

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131667	12	Cap Screw	M22 X 70 X 2.5
2	R52006	12	Washer	23.012 X 40.894 X 4.775 mm (29/32" X 1.610" X 3/16")
3	34M7275	4	Spring Pin	10 X 30 mm
4	R111434	10	Cap Screw	M22 X 130, (USE WITH R304356 AND R212196)
4	R552105	12	Cap Screw	M22 X 140, (USE WITH R303741 AND R243063)
5	R192510	1	Half Sleeve	(KEY HALF) (110MM AXLE)
5	R299669	1	Half Sleeve	(KEY HALF) (120MM AXLE), (SUB FOR R192512, THIS APPLICATION)
6	R52006	10	Washer	23.012 X 40.894 X 4.775 mm (29/32" X 1.610" X 3/16"), (USE WITH R304356 AND R212196)
6	R52006	12	Washer	23.012 X 40.894 X 4.775 mm (29/32" X 1.610" X 3/16"), (USE WITH R303741 AND R243063)
7	R560247	1	Hub	SUB FOR R304356 OR R212195
7	R567131	1	Hub	SUB FOR R561561 OR R303741 OR R243061
8	R51719	4	Compression Spring	-
9	R192509	1	Half Sleeve	(110MM AXLE)
9	R299670	1	Half Sleeve	(120MM AXLE), (SUB FOR R192511, THIS APPLICATION)
10	RE222353	1	Sleeve	(110MM AXLE), (SUB RE251590)
10	RE222352	1	Sleeve	(120MM AXLE), (SUB RE251589)
11	R560248	1	Hub	SUB FOR R212196
11	R567134	1	Hub	12 BOLTS, SUB FOR R561560 OR R243063
12	AT25226	1	Tire Valve Stem	-
12	AH86866	1	Plug	-
13	R182940	2	Cap Screw	-
14	RE267760	1	Rim And Wheel Center	(FOR TIRE SIZE) (DUALS) (800/70R38) (40K)
14	RE262592	1	Wheel	(FOR TIRE SIZE) (DUALS) (700/70R42) (40K)
14	RE275968	1	Wheel	(FOR TIRE SIZE) (DUALS) (650/85R38) (40K)
14	RE283140	1	Wheel	(FOR TIRE SIZE) (650/85R38) (40K )
14	RE283141	1	Wheel	(FOR TIRE SIZE) (700/70R42) (40K)
14	RE267759	1	Rim	(FOR TIRE SIZE) (800/70R38) (40K)
14	RE172896	1	Wheel	(FOR TIRE SIZE) (174.8 FLANGE OFFSET) (380/90R50)
14	RE273208	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (480/80R46) (50K)(480/80R46) (50K)
14	RE175533	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (480/80R46) (18.4R46) (520/85R46) (40K)
14	RE224262	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (REGION 2 AND AUSTRALIA) (710/70R42)
14	RE175488	1	Rim	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (FOR NORTH AMERICA) (710/70R42)
14	RE175532	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (710/70R42)
14	RE175484	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (480/80R42)(18.4R42)
14	RE175481	1	Rim And Wheel Center	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (480/80R42)(18.4R42)
14	RE161991	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (320/90R54)
14	RE269701	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (480/80R50) (50K)
14	RE164038	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (480/80R50) (40K)
14	RE172186	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (380/90R50)
14	RE174387	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (620/70R46)
14	RE172185	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (320/90R50)
14	RE175489	1	Wheel	(FOR TIRE SIZE) (0 MM FLANGE OFFSET) (900/50R42)
14	RE176460	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (620/70R42)(650/65R42)
14	RE311098	1	Wheel	(FOR TIRE SIZE) (0 MM FLANGE OFFSET) (800/70R38), (SUB FOR RE171073)
14	RE174770	1	Wheel	(FOR TIRE SIZE) (76.2 MM FLANGE OFFSET) (650/75R38)(710/70R38)(650/85R38)
