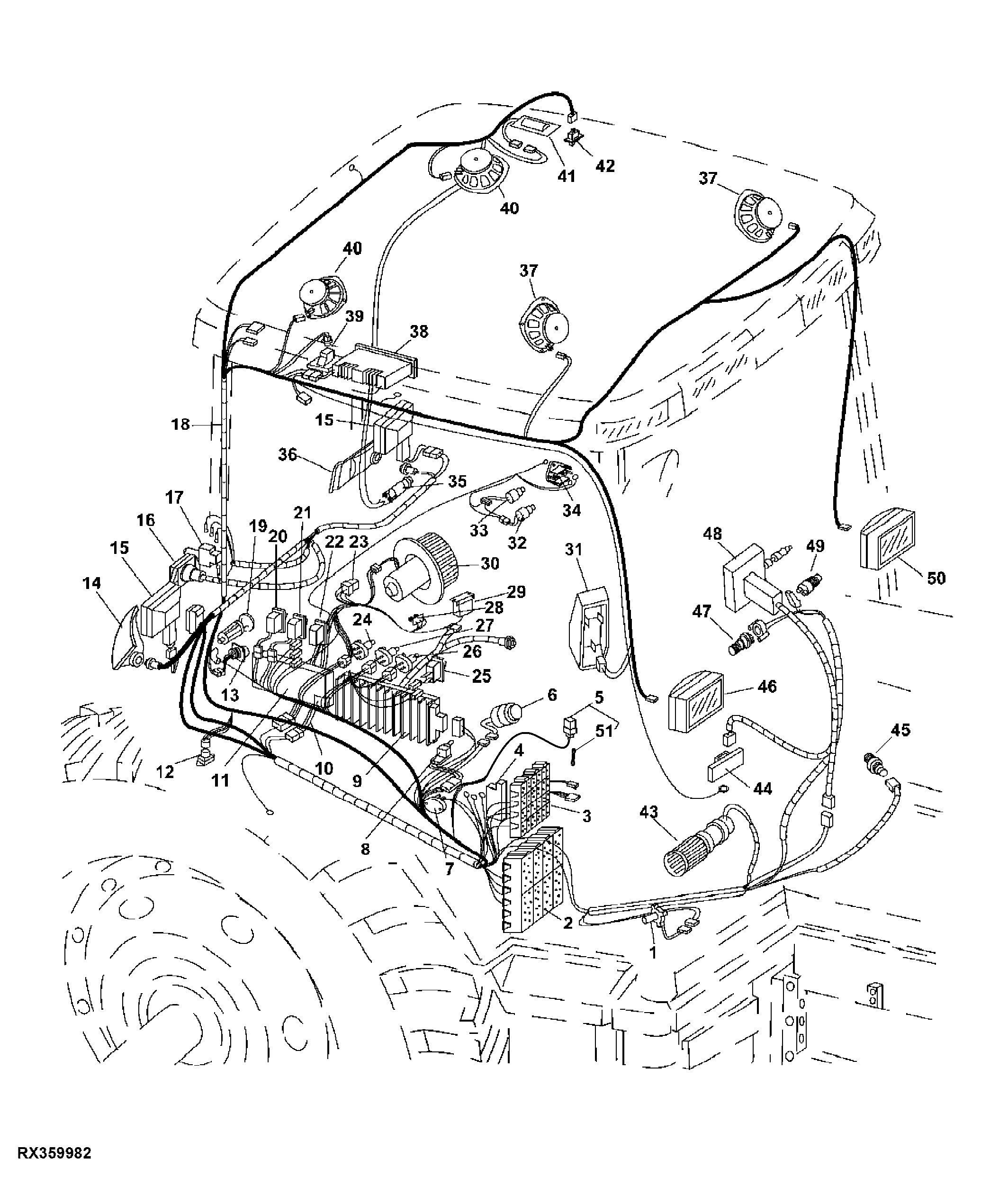

WIRING HARNESS (CAB) (UKRAINIAN VERSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE35704	1	Sensor	(SUB RE261369)
2	RE49724	8	Elec. Connector Accessory	-
3	RE43737	4	Elec. Connector Accessory	-
4	RE48875	1	Junction Block	-
5	RE591841	1	Wiring Harness	SUB FOR RE152796
6	RE49727	1	Horn	-
7	RE186986	1	Junction Block	(SUB FOR R111931)
8	RE62163	1	Switch	-
9	RE185778	1	Vehicle Monitor	(SUB FOR RE168597, RE172237 OR RE185773) (ICU)
10	RE166074	1	Cab Wiring Harness	A\C
10	R124804	1	Clamp	(ALSO ORDER 37M7058)
11	RE64583	1	Digital Display	(SUP)
12	RE70773	1	Electronic Terminator	-
13	RE163290	1	Socket Outlet	(SERVICE ADVISOR OUTLET)
13	RE217864	1	Cap	-
14	RE48954	1	Lens	RH
15	RE154908	2	Floodlamp	-
15	RE330060	1	Floodlamp	(LED PEDESTAL)
16	AR75695	1	Socket Outlet	-
17	RE160903	1	Toggle/Rocker Switch	-
18	RE165908	1	Cab Wiring Harness	-
19	AR60937	1	Electrical Lighter	-
20	RE55476	1	Toggle/Rocker Switch	-
21	RE55477	1	Toggle/Rocker Switch	(MFWD)
22	RE55036	1	Toggle/Rocker Switch	-
23	RE68327	1	Relay	40 AMP
24	AL36529	1	Switch	-
25	RE165815	1	Toggle/Rocker Switch	-
26	RE43497	1	Switch	-
27	RE46634	1	Switch	-
28	RE198074	1	Temperature Switch	(SUB FOR AH144020)
29	RE49636	1	Resistor	-
30	RE67645	1	Motor	-
31	RE229325	1	Tachometer	(SUB FOR RE208300 OR RE63458)
31	R107890	1	Bulb	-
32	RE155938	1	Pressure Switch	(SUB RE157329 AND AN206192)
33	RE60888	1	Pressure Switch	(SUB RE157329 AND AN206192)
33	RE157329	1	Switch	(DUAL PRESSURE SWITCH)

WIRING HARNESS (CAB) (UKRAINIAN VERSION)

Нет текстового описания
