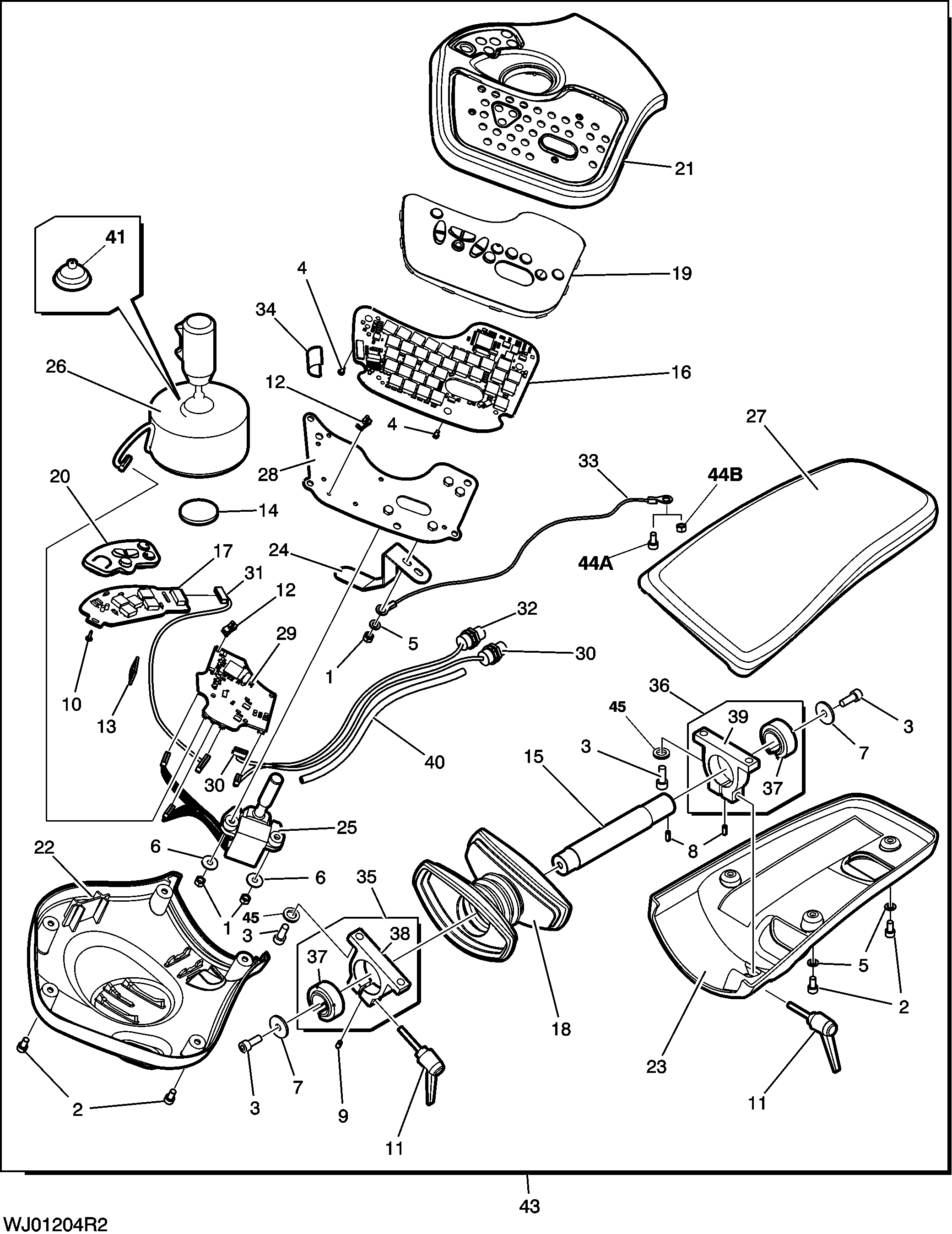

Joystick, Left, Basic / Navi/Scale (002518 - 002658)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7621	4	Nut	M5
2	19M9477	9	Screw	M5 X 10
3	19M9724	6	Screw	M6 X 16
4	21M7537	3	Screw	M3 X 6
5	24M7502	6	Washer	5.300 X 10 X 1 mm
6	24M7503	2	Washer	5.300 X 15 X 1 mm
7	24M7505	2	Washer	6.600 X 22 X 2 mm
8	34M7308	2	Spring Pin	4 X 10 mm
9	34M7309	1	Spring Pin	4 X 8 mm
10	F030763	2	Screw	-
11	F054607	2	Control Lever	-
12	F072662	7	Spacer	-
13	F073381	1	Base	-
14	F613877	1	Pad	-
15	F639217	1	Pin	-
16	F657263	1	Circuit Board	-
16	F677293	1	Circuit Board	SUB FOR F671781
17	F639500	1	Circuit Board	-
18	F642904	1	Cover	-
19	F657915	1	Push Button	(Basic Armrest)
19	F676319	1	Push Button	(Navi / Scale Armrest) SUB FOR F657914
20	F647708	1	Push Button	-
21	F642915	1	Panel	-
22	F677295	1	Panel	SUB FOR F642916
23	F642917	1	Panel	-
24	F655040	1	Holder	-
25	F683382	1	Knob	-
25	F643146	1	Control Lever	-
26	F643148	1	Control Lever	-
27	F643163	1	Cushion	-
27	F673565	1	Cushion	-
28	F643176	1	Bracket	-
29	F657262	1	Circuit Board	-
29	F677296	1	Circuit Board	SUB FOR F671809
30	F648046	1	Wiring Harness	-
30	F661280	1	Wiring Harness	-
31	F648047	1	Wiring Harness	-
32	F648048	1	Wiring Harness	-
33	F648050	1	Wiring Harness	-
34	F648109	1	Wiring Harness	-
35	F651163	1	Bearing With Housing	-
36	F651164	1	Bearing With Housing	-
37	F052588	2	Bearing	NLA
38	F602147	1	Bearing Housing W/O Bearing	NLA
39	F052599	1	Bearing Housing W/O Bearing	NLA
40	F654915	1	Shield	-
41	F070977	1	Boot	-
43	F660390	1	Armrest	(Basic Armrest) SUB FOR F635688
43	F673817	1	Armrest	(Basic Armrest)
43	F660392	1	Armrest	(Navi / Scale Armrest) SUB FOR F645378
43	F673819	1	Armrest	(Navi / Scale Armrest)
45	F015990	4	Lock Washer	-
44A	19M9478	1	Screw	M5 X 16
44B	14M7633	1	Flange Nut	M5
