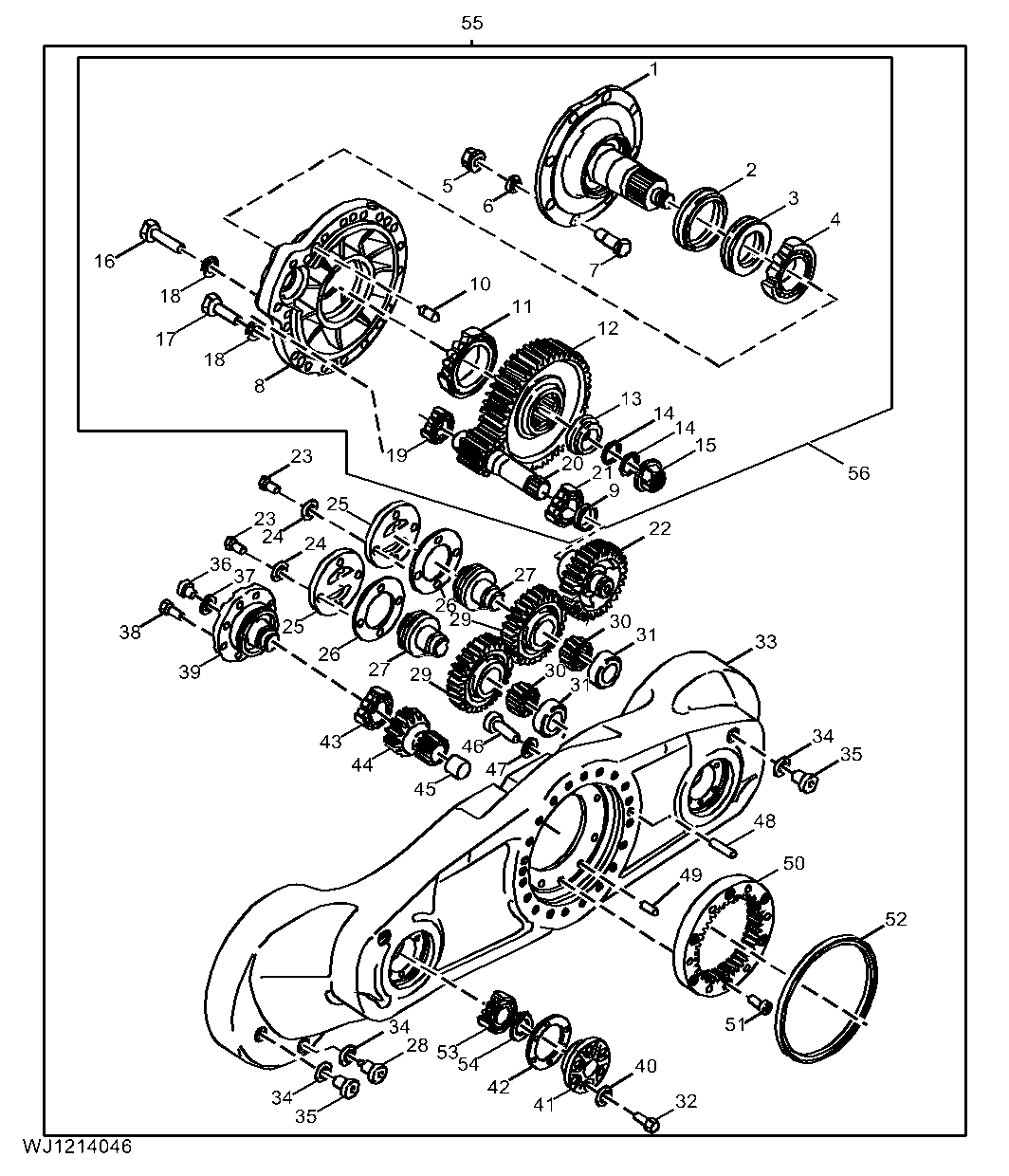

Bogie Assembly, Front Axle (LOK 180)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F066778	2	Hub	-
2	F004721	2	Seal	-
3	F009363	2	Ring	-
4	F009445	2	Bearing	-
5	F004678	16	WHEEL NUT	SUB FOR 14M7490
6	F004736	16	Lock Washer	SUB FOR AT260850
7	F025179	16	Wheel Bolt	-
8	F034630	2	Housing	-
9	F045344	2	Bushing	-
10	F025340	14	Pin	-
11	F003810	2	Tapered Roller Bearing	-
12	F677087	4	Gear	ALSO ORDER F677088; SUB FOR F072715
13	F025342	2	Spacer	-
14	F055115	2	Shim Kit	S = 0.2 - 2.0 mm
15	F066779	2	Nut	-
16	F025356	8	Self-Locking Screw	-
17	F025357	30	Self-Locking Screw	-
18	24M7283	38	Washer	13 X 24 X 3 mm, SUB FOR F009376
19	F025361	2	Cylindrical Roller Bearing	-
20	F677088	4	Pinion Shaft	ALSO ORDER F677087; SUB FOR F075721
21	F025361	2	Cylindrical Roller Bearing	-
22	F064305	2	Gear	Z = 29
23	19M8607	16	Cap Screw	M10 X 20
24	F025363	16	Washer	-
25	F025364	4	CAP	-
26	F070979	4	Gasket	-
27	F025366	4	Shaft	-
28	F010163	2	Plug	-
29	F025153	4	Gear	Z = 29
30	F025155	4	BEARING	-
31	F025156	4	Spacer	-
32	19M9639	12	Cap Screw	M10 X 25
33	F064716	1	Housing	-
34	51M4247	4	Sealing Ring	-
35	F009438	2	Plug	-
36	F009439	1	Plug	-
37	F009463	1	Seal	-
38	F025159	8	Self-Locking Screw	-
39	F070744	1	Cap	-
40	F004734	12	Retainer	-
41	F025178	2	Cap	-
42	F025177	2	Gasket	-
43	F009451	1	Bearing	-
44	F064308	1	Gear	Z = 17/15
45	F025324	1	Bolt	-
46	F064589	6	Screw	-
47	F025168	6	Washer	-
48	F035794	2	Dowel Pin	-
49	F025340	4	Pin	-
50	F025169	1	Gear	Z = 49
51	F025170	6	Self-Locking Screw	-
52	F045343	1	Seal	-
53	F025175	2	BEARING	-
54	F025176	2	Snap Ring	-
55	F688788	1	Housing	LOK 180/2
56	F688960	1	Planetary Assembly	LOK 180/2
