Hydraulic Drive Pump and Work Pump Mounting

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F032109	1	Hose Guard	-
2	F040545	1	HOSE-ASSY	Fabricate
3	F070244	1	Hydraulic Hose	-
4	F008489	4	Hose Clamp	-
5	F015551	2	Hose Clamp	-
6	F663856	1	Suction Hose	-
7	F075065	1	Suction Hose	-
8	19H3616	4	Screw	1/2" X 3"
9	19H3929	4	Screw	1/2" X 1-3/4"
10	19H3952	2	Cap Screw	5/8" X 1-3/4"
11	19M9659	4	Cap Screw	M16 X 45
12	24M7491	4	Washer	13 X 24 X 2.500 mm
13	T78393	1	O-Ring	-
14	51M7067	1	O-Ring	69.444 X 3.531 mm
15	F004404	1	NIPPLE	-
16	F004405	2	Flange	-
17	F004626	1	Orifice	-
18	F005045	1	Elbow Fitting	-
19	F005076	1	Tee Fitting	-
20	F010079	1	COUPLING NUT	-
21	F011482	1	Fitting	-
22	F012520	1	T-CONNECTION	-
23	F012521	2	Elbow Fitting	-
24	F024359	1	Tube	-
25	F025424	1	Fitting	-
26	F031738	1	Tee Fitting	-
27	F035204	1	MEASURING NIPPLE	-
28	F050849	1	Elbow Fitting	-
29	F052041	1	Fitting	-
30	F056738	1	Elbow Fitting	-
31	F058290	1	Fitting	-
32	F070737	2	Fitting	-
33	F070739	2	Elbow Fitting	-
34	F678190	1	Seal	Not Illustrated
34	F678178	1	Hydraulic Pump	COMPONENTS ON SEPARATE PAGE
34	F071584	1	Hydraulic Pump	NLA; ORDER F678178, COMPONENTS ON SEPARATE PAGE
35	F074859	1	Hydraulic Pump	COMPONENTS ON SEPARATE PAGE
36	F604148	6	Washer	-
37	F648658	1	Manifold	-
38	F653182	1	Oil Pump Intake	-
39	F040264	1	Fitting	-
40	F005060	1	Fitting	-
41	F658215	1	Wiring Harness	-
42	57M9577	1	Elec. Connector Housing	-
42	57M8732	2	Elec. Connector Terminal	-
42	F056900	2	Seal	-
42	F031719	2	Guard	-

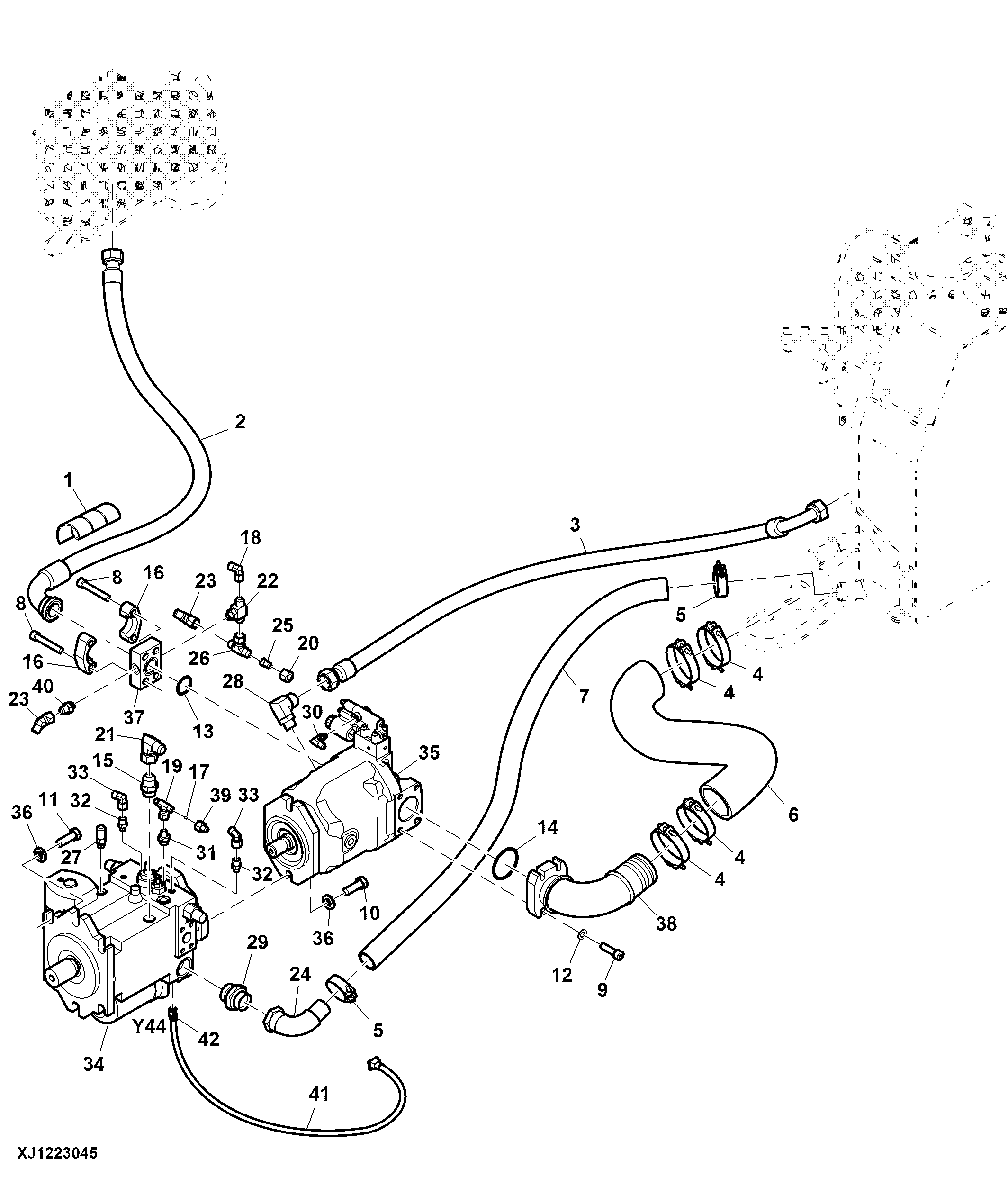

Hydraulic Drive Pump and Work Pump Mounting
