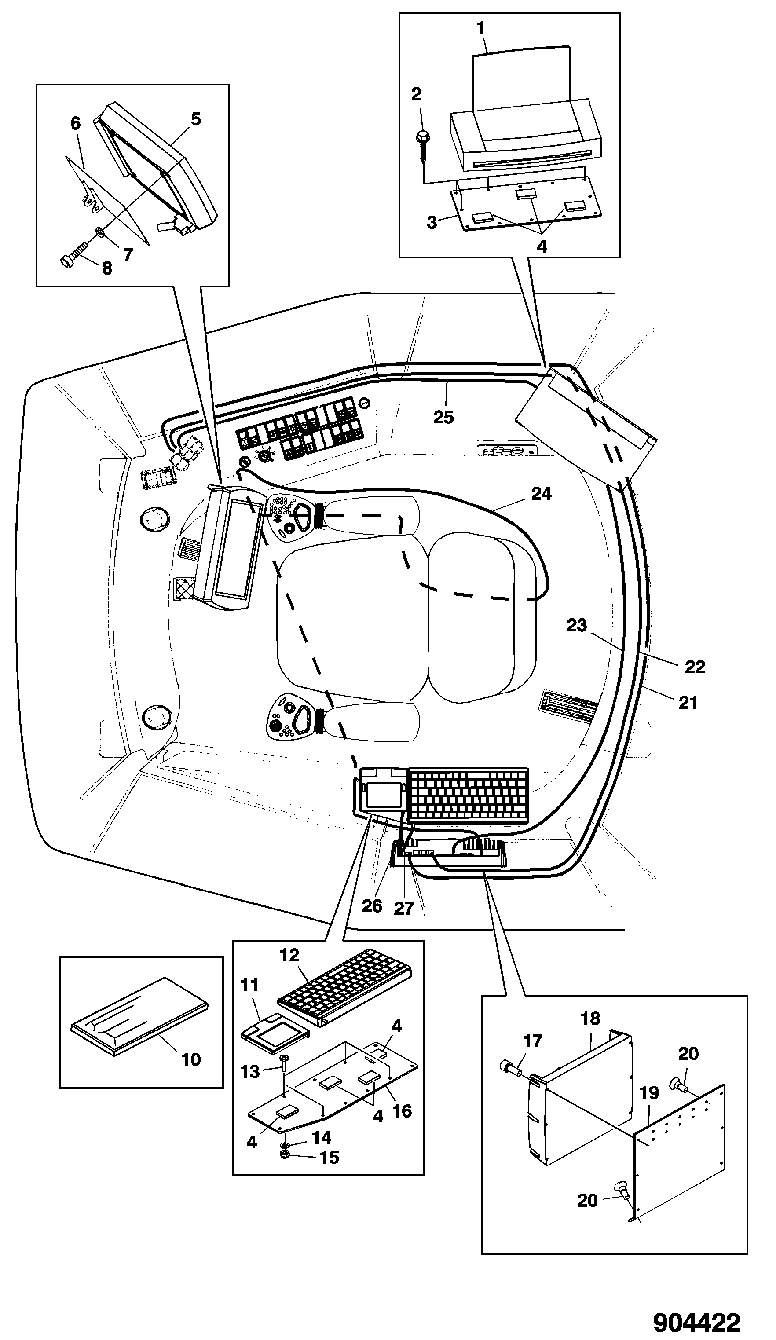

PC ELECTRICALS TO SERIAL NO. -1454 [02D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F065406	1	COMPUTER ACCESSORY	-
2	F022509	4	SCREW	-
3	F628746	1	HOLDER	-
4	-	7	Part 4	F061192 X 40
5	F626767	1	DISPLAY MODULE	-
5	F069602	1	COMPUTER HARDWARE ITEM	(REPLACES F064489)
6	-	1	Part 7	SEE PAGE 1676-4
7	24M7501	4	Washer	4.300 X 9 X 0.800 MM
8	19M9471	4	Screw	M4 X 10
10	F064685	1	Cover	-
11	F628502	1	Computer Hardware Item	-
12	F065295	1	Computer Accessory	UNITED STATES
12	F065298	1	Computer Hardware Item	DENMARK
12	F065297	1	Computer Hardware Item	SPAIN
12	F065296	1	Computer Hardware Item	PORTUGAL
12	F065294	1	Computer Hardware Item	NORWAY
12	F065292	1	Computer Accessory	FRENCH
12	F065291	1	Computer Hardware Item	GERMANY
12	F065290	1	Computer Hardware Item	RUSSIAN
12	F064443	1	Computer Accessory	ENGLISH
12	F064442	1	Computer Hardware Item	FINNISH/SWEDISH
12	F065293	1	COMPUTER HARDWARE ITEM	ITALY
13	21M7547	1	Screw	M5 X 25
14	24M7502	4	Washer	5.300 X 10 X 1 MM
15	F003585	4	LOCK NUT	-
16	F628745	1	PLATE	-
17	19M9474	6	Screw	M4 X 25
18	F639658	1	COMPUTER ACCESSORY	FPC08 REPLACEMENT KIT, WITH WINDOWS XP (REPLACES F627578)
19	F628606	1	BRACKET	-
20	37M7333	19	Screw	-
21	F626908	1	WIRING HARNESS	-
22	F626907	1	WIRING HARNESS	-
23	F065439	1	WIRING HARNESS	-
24	F064414	1	WIRING HARNESS	-
25	F629928	1	WIRING HARNESS	-
26	-	1	Part 36	INCL IN ITEM 11
27	-	1	Part 37	INCL IN ITEM 12

PC ELECTRICALS TO SERIAL NO. -1454 [02D19]
