Открытый узел

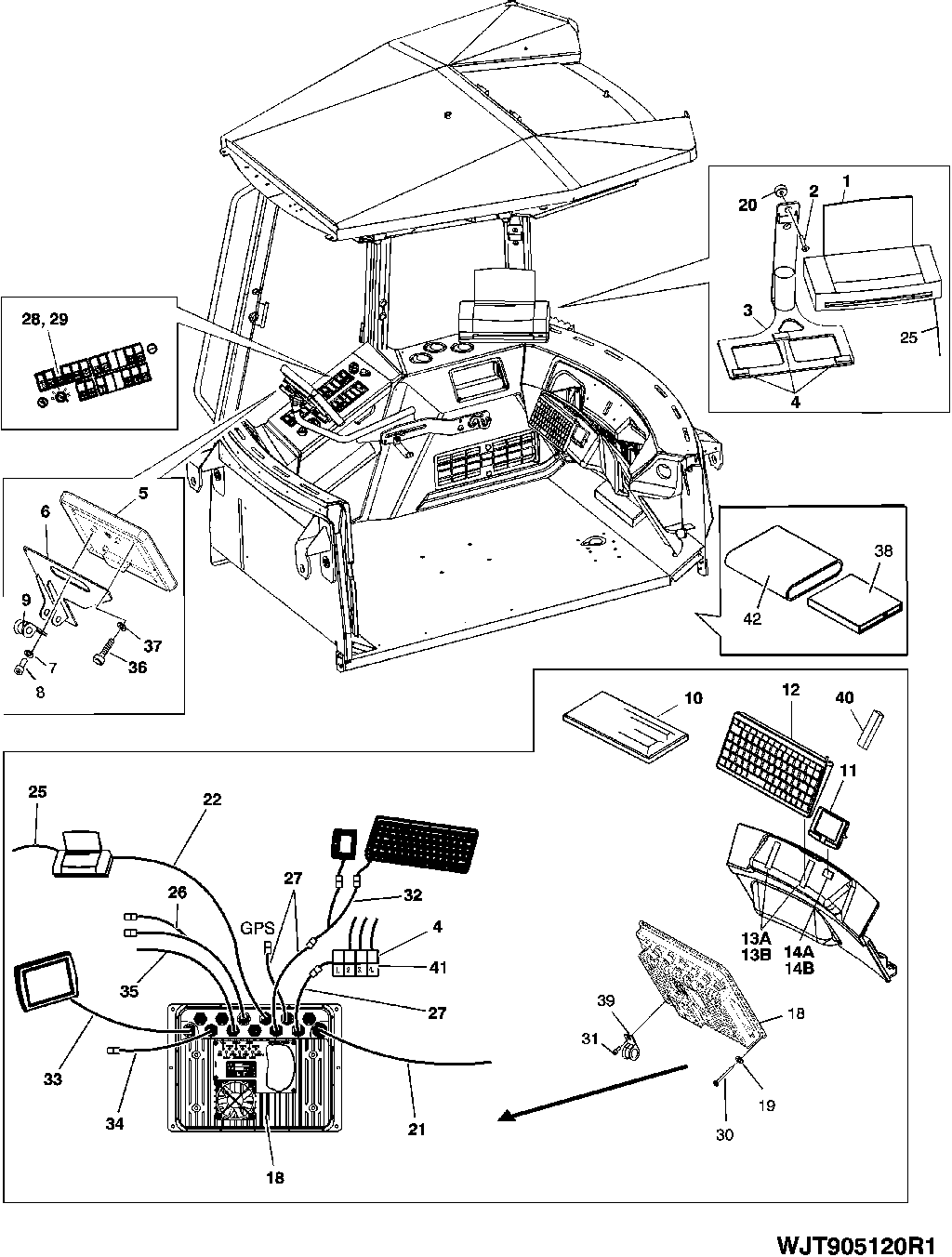

PC ELECTRICALS FROM SERIAL NO. 1833- [02D23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F072060	1	COMPUTER HARDWARE ITEM	BLACK
1	F072061	1	COMPUTER HARDWARE ITEM	COLOR
1	F070434	1	COMPUTER HARDWARE ITEM	-
2	19M9563	2	Screw	M8 X 50
3	F630821	1	BRACKET	-
4	-	1	Part 6	F061192 X L= 40
5	F070193	1	Monitor	-
6	-	1	Part 8	SEE PAGE 1676-4
7	F015990	1	Lock Washer	-
8	19M9721	1	Screw	M6 X 10
9	F015145	1	HOSE CLAMP	-
10	F064685	1	Cover	-
11	F628502	1	Computer Hardware Item	-
12	F065292	1	Computer Accessory	FRENCH
12	F065291	1	Computer Hardware Item	GERMANY
12	F064443	1	Computer Accessory	ENGLISH
12	F065290	1	Computer Hardware Item	RUSSIAN
12	F064442	1	Computer Hardware Item	FINNISH/ SWEDISH
17	21M7542	6	SCREW	M4 X 40
18	F070831	1	Computer Hardware Item	AXIAL FAN
18	F070757	1	Microcomputer	HARD DISK
18	F070191	1	Microcomputer	XPC
18	F064487	1	Software	-
18	F072780	1	Lithium Battery	-
19	F026365	6	Lock Washer	-
20	F630877	2	Bushing	-
21	F626908	1	WIRING HARNESS	-
22	F641175	1	Wiring Harness	PRINTER
25	F640177	1	Wiring Harness	-
26	F070474	1	Wiring Harness	REAR AND FRONT CAMERA (OPTION)
27	F070471	3	Wiring Harness	DVD DISK DRIVE, GPS
28	F030605	1	Toggle/Rocker Switch	-
29	F062500	1	SIGN	-
30	19M9472	6	Screw	M4 X 16
31	F017300	1	SCREW	-
32	F070760	1	Computer Hardware Item	KEYBOARD AND MOUSE
33	F070468	1	Wiring Harness	MONITOR
34	F070473	1	WIRING HARNESS	GPRS-MODEM (OPTION)
35	F641715	1	Wiring Harness	-
36	F001624	3	SCREW	-
37	F015008	3	WASHER	-
38	F070668	1	Computer Hardware Item	DVD DRIVE (OPTION)
39	F072109	1	Hose Support	-
40	F070756	1	Computer Hardware Item	SANDISK 256 MT
41	F071050	1	Computer Hardware Item	USB HUB
42	F071171	1	Bag	-
13A	-	1	Part 27	F067183 X L= 100
13B	-	1	Part 28	F067184 X L= 100
14A	-	1	Part 29	F067183 X L= 40
14B	-	1	Part 30	F067184 X L= 40
-	F066415	1	Computer Accessory	CZECH
-	F066414	1	Computer Accessory	BELGIUM
-	F066234	1	COMPUTER HARDWARE ITEM	POLAND
-	F065298	1	Computer Hardware Item	DENMARK
-	F065297	1	Computer Hardware Item	SPAIN
-	F065296	1	Computer Hardware Item	PORTUGAL
-	F065295	1	Computer Accessory	UNITED STATES
-	F065294	1	Computer Hardware Item	NORWAY

PC ELECTRICALS FROM SERIAL NO. 1833- [02D23]
